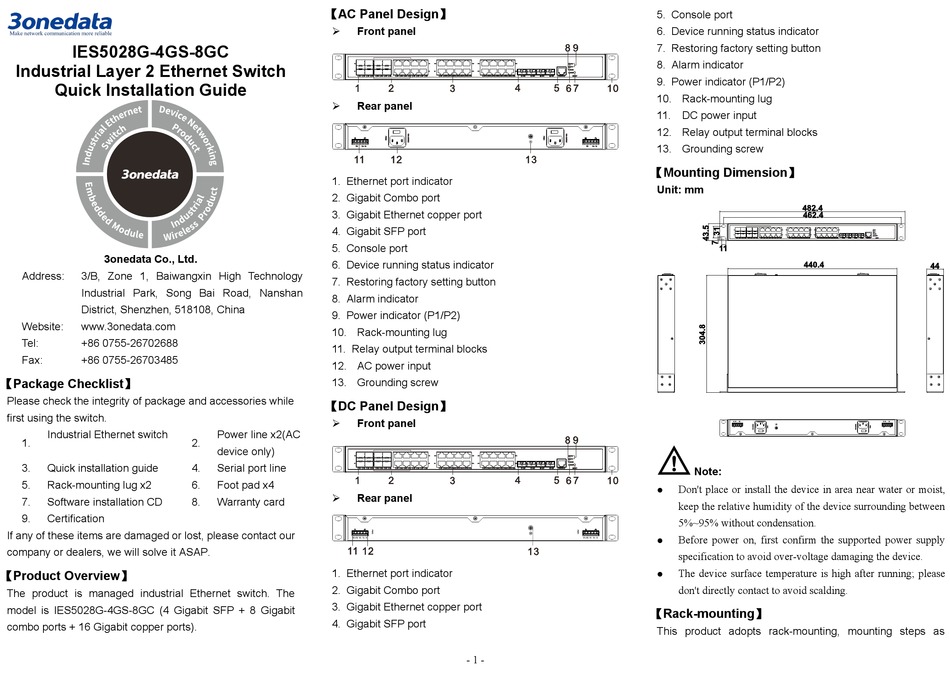

3onedata IES5028G-4GS-8GC Quick Installation Manual

IES5028G-4GS-8GC
Industrial Layer 2 Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
Industrial Ethernet switch
1.
3. Quick installation guide
5. Rack-mounting lug x2
7. Software installation CD
9. Certification
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

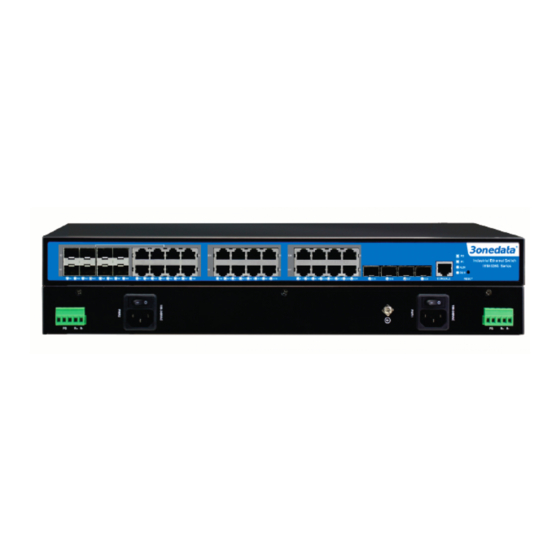

The product is managed industrial Ethernet switch. The
model is IES5028G-4GS-8GC (4 Gigabit SFP + 8 Gigabit
combo ports + 16 Gigabit copper ports).
【AC Panel Design】
Front panel

Rear panel

1. Ethernet port indicator
2. Gigabit Combo port
3. Gigabit Ethernet copper port
4. Gigabit SFP port
5. Console port
6. Device running status indicator
7. Restoring factory setting button
8. Alarm indicator
9. Power indicator (P1/P2)
10. Rack-mounting lug
11. Relay output terminal blocks
12. AC power input
13. Grounding screw
【DC Panel Design】
Front panel

Power line x2(AC
2.
device only)
4. Serial port line
6. Foot pad x4
Rear panel

8. Warranty card
1. Ethernet port indicator
2. Gigabit Combo port
3. Gigabit Ethernet copper port
4. Gigabit SFP port
- 1 -
5. Console port
6. Device running status indicator
7. Restoring factory setting button
8. Alarm indicator
9. Power indicator (P1/P2)
10. Rack-mounting lug
11. DC power input
12. Relay output terminal blocks
13. Grounding screw
【Mounting Dimension】
Unit: mm
Note:
Don't place or install the device in area near water or moist,

keep the relative humidity of the device surrounding between
5%~95% without condensation.
Before power on, first confirm the supported power supply

specification to avoid over-voltage damaging the device.
The device surface temperature is high after running; please

don't directly contact to avoid scalding.
【Rack-mounting】
This product adopts rack-mounting, mounting steps as
