IES5024 series
Managed Industrial Ethernet switch
User manual
Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com
【Summarize】

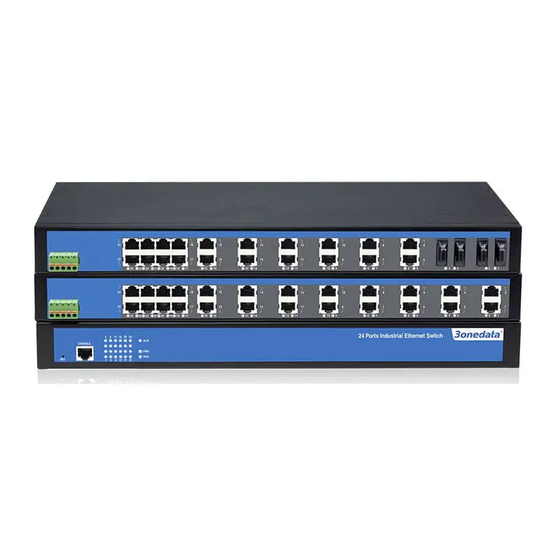

IES5024 series is an industrial grade and managed industrial
Ethernet switch. The IES5024 industrial Ethernet switches
consists of 24 Ethernet ports. The IES5024-2F industrial Ethernet
switches consists of 22 Ethernet ports and 2 Fiber ports. The
IES5024-4F industrial Ethernet switches consists of 20 Ethernet
ports and 4 Fiber ports. The IES5024-8F industrial Ethernet
switches consists of 16 Ethernet ports and 8 Fiber ports. The
IES5024-12F industrial Ethernet switches consists of 12 Ethernet
ports and 12 Fiber ports. The IES5024-16F industrial Ethernet
switches consists of 8 Ethernet ports and 16 Fiber ports. The
IES5024-20F industrial Ethernet switches consists of 4 Ethernet
ports and 20 Fiber ports. The IES5024-24F industrial Ethernet
switches consists of 24 Fiber ports that provide an economical
solution for your industrial Ethernet connection. IES5024 series
with a single power series and redundancy power series of two
products can be optional. Dual power supply product support
redundancy backup function. The single power supply products
do not support the redundancy function.
The IES5024 series switches have an operating temperature
range of -40 to 75°C, and are designed with low consumption and
without fan. The rugged hardware design makes the IES5024
perfect for ensuring that your Ethernet equipment can withstand
the rigors of industrial applications.
【Packing list】
Please check the packaging and accessories by your first using.
Industrial Ethernet switch ⅹ 1
User manual ⅹ 1
Documentation and software CD ⅹ 1
Certificate of quality ⅹ 1
Warranty card ⅹ 1
Please inform us or our distributor if your equipments have
been damaged or lost any accessories, we will try our best to
satisfy you.
【Feature】
High performance network exchange technology
Support
IEEE802.3,
IEEE802.3u,
IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W
Support 8K MAC address
Support 12.8Gbps switching fabric capacity
10/100BaseT(X)(RJ45)
Store and Forward switching process type
Plug-and-play, auto MDI/MDI-X connection
Support auto negotiation speed, F/H duplex mode, and auto
send data control
SW-Ring ring network patent technology (Fault recovery
time<20ms)
Support WEB configuration
Support MAC address learning, aging automatic
Support port status display, data update.
Support RSTP, IGMP, port trunking and port mirroring
Support rate control, Broadcast storm control
Support single or redundancy power supply (100～
240VAC/DC)
Support 1 channel relay alarm output (single power series)
Support 2 channel relay alarm output (redundancy power
series)
Reliable Industrial grade design
Industrial grade 4 design, -40-75℃work temperature
No fan deign
IP30 protection grade
19 inch rack mounting
【Panel layout】
IES5024-P (100~240VAC/DC)
Front panel
IEEE
802.3x
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for 3onedata IES5024-P
Summary of Contents for 3onedata IES5024-P
- Page 1 Certificate of quality ⅹ 1 IES5024-P (100~240VAC/DC) Warranty card ⅹ 1 Front panel Shenzhen 3onedata Technology Co., Ltd. Please inform us or our distributor if your equipments have Tel: +86-755-26702668 Fax: +86-755-26703485 been damaged or lost any accessories, we will try our best to www.3onedata.com...
- Page 2 Front panel 10/100BaseT(X) (RJ45) ports Rear panel 100Base-FX ports Rear panel connector LEDs Restore factory settings IES5024-12F-P (100~240VAC/DC) Console port Rear panel Front panel Link/ACT LEDs Systems running LED The power LED Restore factory settings Relay alarm LED Console port Rear panel Rackmount ears Link/ACT LEDs...
- Page 3 The power LED block into device’s power port, then insert power supply plug into Relay alarm LED power source Rackmount ears 2. Power OFF operation: First off all, unpin power plug, then Power input and Relay output terminal block strike the terminal block, please take care of operation sequence. 10/100BaseT(X) (RJ45) ports 1.
- Page 4 【Relay connection】 RJ 45 port support automatic MDI/MDI-X operation. Can connect remote switch’s TX (transmit) port. connect the PC, Server, Converter and HUB .Pin 1,2,3,6 The optical fiber connection supports the line to instruct Corresponding connections in MDI. 1→3, 2→6, 3→1, 6→2 are enhance the reliability of network effectively used as cross wiring in the MDI-X port of Converter and HUB.
- Page 5 3. The required cable specification, quantity, direction and SW-Ring: Support Single, Couple, Chain, Dual homing Consumption IES5024-P (100~240VAC/DC): laying position need to match construction requirements, and Exchange attribute cable length depends on actual position; 100M forward speed: 148810pps...
- Page 6 Full load consumption: 10.1W EN61000-4-4 (EFT), Level 4 IES5024-2F-P (100~240VAC/DC): EN61000-4-5 (Surge), Level 4 Unload consumption: 8.7W EN61000-4-6 (CS), Level 3 Full load consumption: 11.4W EN61000-4-8, Level 5 IES5024-4F-P (100~240VAC/DC): Shock: IEC 60068-2-27 Unload consumption: 10.0W Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 Full load consumption: 12.7W IES5024-8F-P (100~240VAC/DC):...
