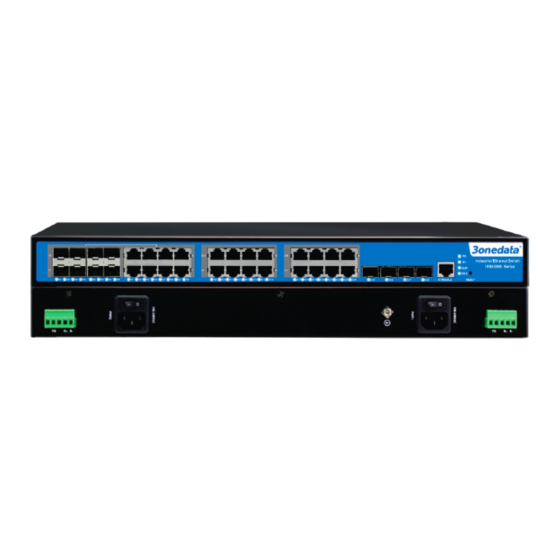

3onedata IES5028G Series User Manual

3onedata IES5028G Series User Manual

Industrial ethernet switch

Advertisement

Quick Links

IES5028G Series
Industrial Ethernet Switch
User Manual
Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com
【Introduction】
The
series
are
high-performance,
rack-mounted full Gigabit industrial Ethernet switches. The
increase in bandwidth elevates the data transmission capability,
and it's very suitable for the application of large-scale industrial
network. The switch various advanced administration functions
such as IGMP, GMRP, DHCP Server/Client, STP/RSTP/MSTP,
QOS, port mirroring, LLDP, etc. The switches also support
SNMPv1/v2/v3 (Simple Network Management Protocol), CLI,
Web Management, TELNET management for more convenient
device management. Combined with enhanced ACL control and
anti-attack function, the management will be more secure.
The switches are in compliance with the FCC and CE
standards, and supports 2-way redundant AC inputs and 2-way
relay fault alarm output. Users can select flexibly according to
actual environment. It adopts industrial no fan design, and is fit
for severe industrial environment at a working temperature of
-40 ℃ ~75 ℃, which can meet various industrial application
requirements and provide reliable and economic solutions for
Ethernet access.
【Packing list】
The industrial Ethernet switch is shipped with the following items.
If any of these items are missing or damaged, please contact your
customer service representative for assistance.
Industrial Ethernet switch ⅹ 1
Documentation and software CD ⅹ 1
User manual ⅹ 1
Rackmount ears ⅹ 2
Power cords ⅹ 2
【Features】
Support IGMP Snooping and GMRP filter multicast packet
Support QOS of IEEE 802.1p/1Q TOS/DiffServ to promote
network stability
Support SNMP v1/v2/v3
- 1 -
Support IEEE802.1X, HTTPS, and SSH to enhance network
cost-effective
smart
security
Support link static / dynamic aggregation to optimize
bandwidth
Support ACL function to enhance flexibility and security of
network management
Support bandwidth management, ensuring network stability
Support RMON, effectively improve network monitoring and
predictive ability
Support port mirroring for online debugging
Support STP/RSTP/MSTP to enhance network stability
Support IEEE802.1Q VLAN for easy network planning
Working temperature: -40℃-75℃
Support two 100VAC~240VAC power inputs
Support two power supplies for redundancy and high
reliability
Support two relay alarms to enhance reliability
No fan design, industrial and rack-mounted installation

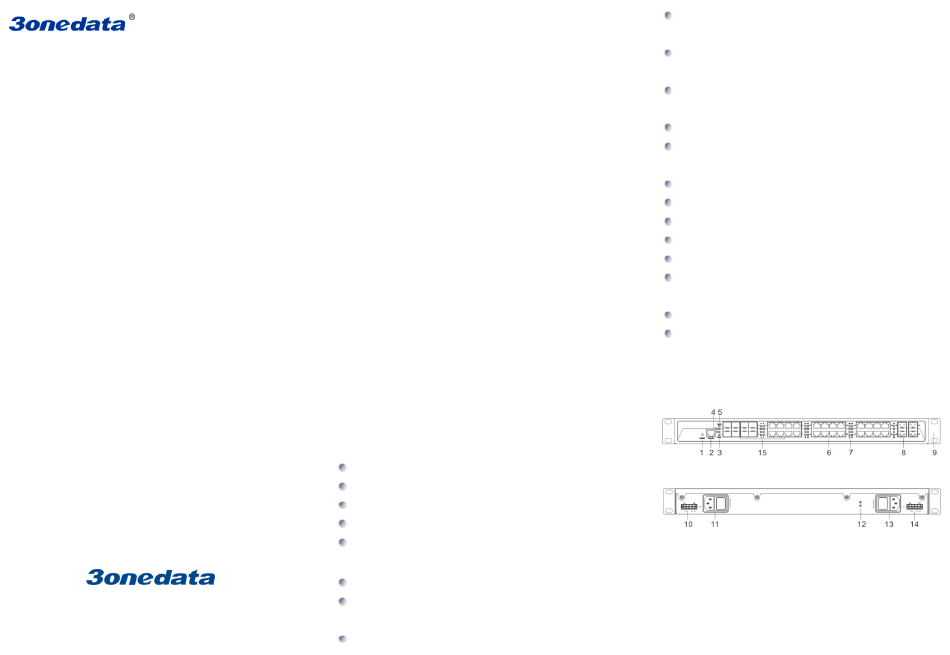

【Panel layout】
IES5228G-4GS-8GC-16GT
Front panel
Rear panel
1. Restore factory settings
2. Console port
3. Systems running LED
4. The power LEDs (P1, P2)
5. Relay alarm LED
6. 10/100/1000BaseT(X) (RJ45) ports
