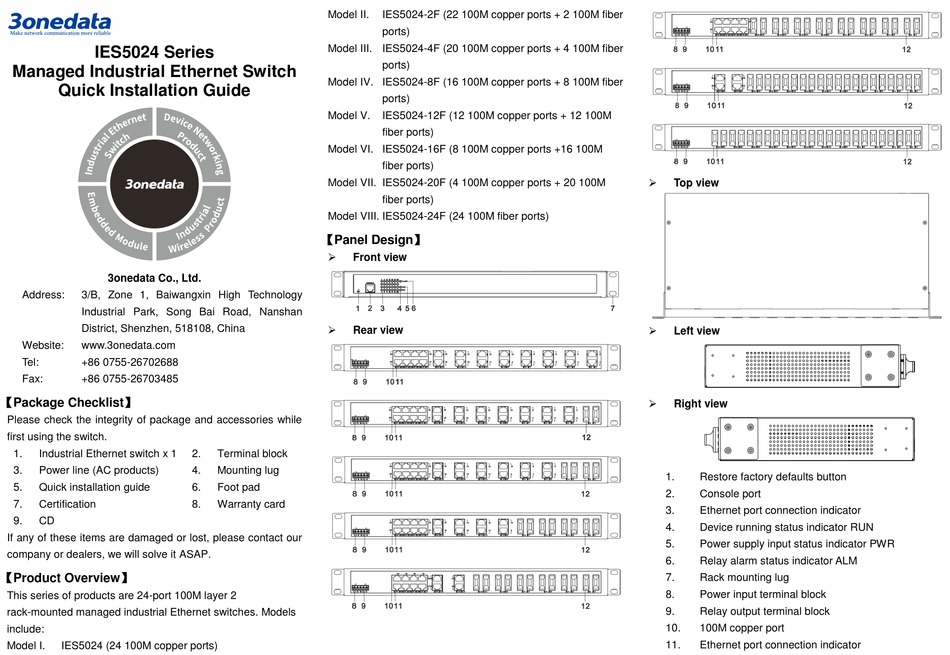

3onedata IES5024-20F Quick Installation Manual

IES5024 Series
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch x 1
3. Power line (AC products)
5. Quick installation guide
7. Certification
9. CD
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This series of products are 24-port 100M layer 2
rack-mounted managed industrial Ethernet switches. Models
include:
Model I. IES5024 (24 100M copper ports)
Model II.
Model III. IES5024-4F (20 100M copper ports + 4 100M fiber
Model IV. IES5024-8F (16 100M copper ports + 8 100M fiber
Model V.
Model VI. IES5024-16F (8 100M copper ports +16 100M

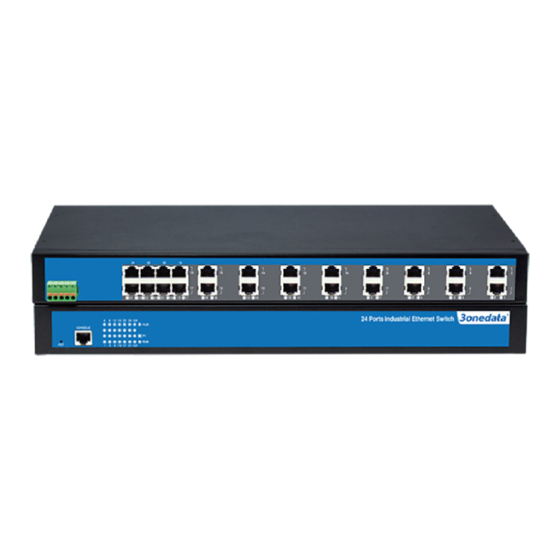

Model VII. IES5024-20F (4 100M copper ports + 20 100M
Model VIII. IES5024-24F (24 100M fiber ports)
【Panel Design】

Front view

Rear view
2. Terminal block
4. Mounting lug
6. Foot pad
8. Warranty card
IES5024-2F (22 100M copper ports + 2 100M fiber
ports)
ports)
ports)
IES5024-12F (12 100M copper ports + 12 100M
fiber ports)
fiber ports)
fiber ports)

Top view

Left view

Right view
1. Restore factory defaults button
2. Console port
3. Ethernet port connection indicator
4. Device running status indicator RUN
5. Power supply input status indicator PWR
6. Relay alarm status indicator ALM
7. Rack mounting lug
8. Power input terminal block
9. Relay output terminal block
10. 100M copper port
11. Ethernet port connection indicator
