3onedata IES6116 Series User Manual

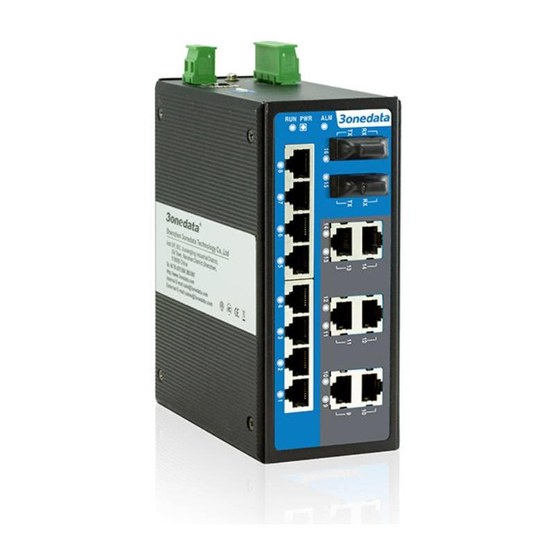

Managed industrial ethernet switches
Hide thumbs Also See for IES6116 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
IES6116 series
Managed Industrial Ethernet switches
CLI user manual
Version 2.1.0, Jan. 2017
www.3onedata.com
