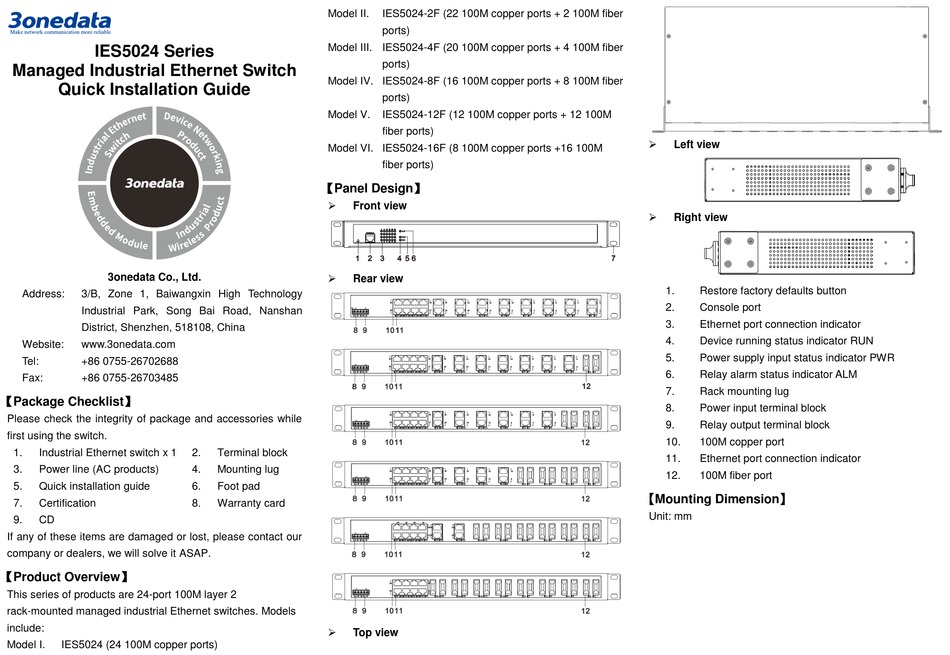

IES5024 Series
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
Website:
www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1.
Industrial Ethernet switch x 1
3.
Power line (AC products)
5.
Quick installation guide
7.
Certification
9.
CD
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

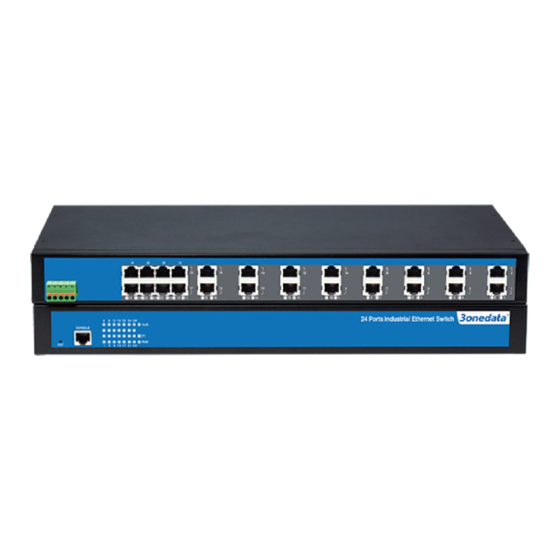

【Product Overview】
This series of products are 24-port 100M layer 2
rack-mounted managed industrial Ethernet switches. Models
include:
Model I.
IES5024 (24 100M copper ports)
Model II.
Model III. IES5024-4F (20 100M copper ports + 4 100M fiber
Model IV. IES5024-8F (16 100M copper ports + 8 100M fiber
Model V.
Model VI. IES5024-16F (8 100M copper ports +16 100M
【Panel Design】
Front view
Rear view
2.
Terminal block
4.
Mounting lug
6.
Foot pad
8.
Warranty card
Top view
IES5024-2F (22 100M copper ports + 2 100M fiber
ports)
ports)
ports)
IES5024-12F (12 100M copper ports + 12 100M
fiber ports)
fiber ports)
Left view
Right view
1.
Restore Factory Defaults button
2.
Console port
3.
Ethernet port connection indicator
4.
Device running status indicator RUN
5.
Power supply input status indicator PWR
6.
Relay alarm status indicator ALM
7.
Rack mounting lug
8.
Power input terminal block
9.
Relay output terminal block
10.
100M copper port
11.
Ethernet port connection indicator
12.
100M fiber port
【Mounting Dimension】
Unit: mm
Advertisement
Table of Contents
Related Manuals for 3onedata IES5024 Series
Summary of Contents for 3onedata IES5024 Series
- Page 1 Model II. IES5024-2F (22 100M copper ports + 2 100M fiber ports) Model III. IES5024-4F (20 100M copper ports + 4 100M fiber IES5024 Series ports) Managed Industrial Ethernet Switch Model IV. IES5024-8F (16 100M copper ports + 8 100M fiber...
- Page 2 device position as figure below. Dual power supply This series of products support dual power supply scheme and provide P1 and P2 independent power supply systems. When one of the power supply system fails, the device can operate uninterruptedly and normally, which has improved the reliability of network operation.
- Page 3 Definition of RJ45 pins as follows: network between them can be mutually accessed. 100M copper port 10/100Base-T(X) self-adapting Step 2 Enter device’s IP address in the address bar of the RJ45 port, half/full duplex Pin Number computer browser. self-adaption, support Pin Definition MDI/MDI-X self-adaption 【Restore Factory Defaults】...
- Page 4 IES5024-16F No-load: 17.8W@220VAC Full-load: 20.5W@220VAC Environmental Limits Working temperature -40~75℃ Storage temperature -40~85℃ Working humidity 5%~95% (no condensation) Protection grade IP30 (metal shell)
