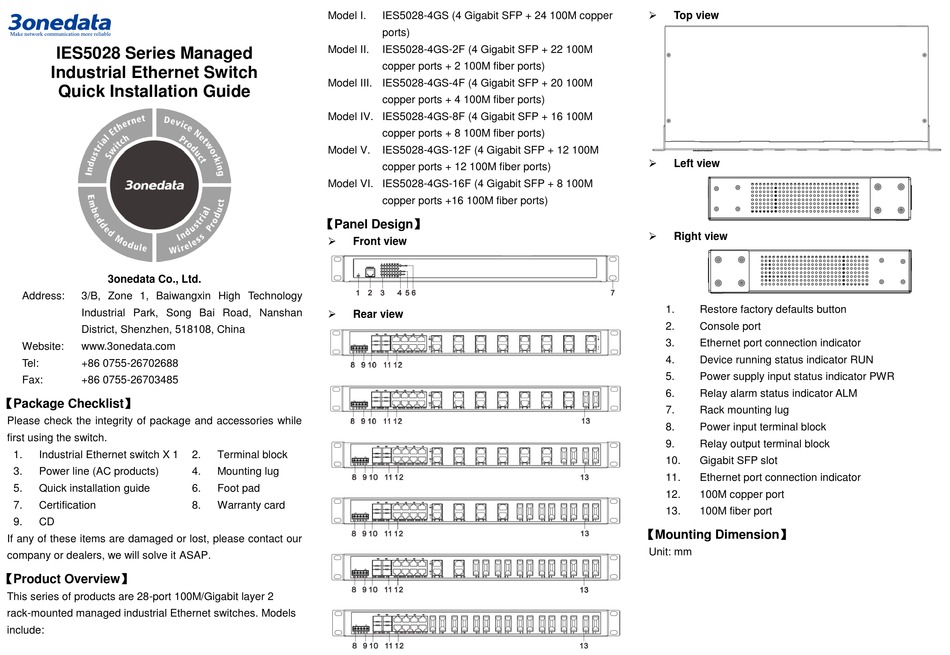

IES5028 Series Managed
Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
Website:
www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485

【Package Checklist】

Please check the integrity of package and accessories while
first using the switch.
1.
Industrial Ethernet switch X 1
3.
Power line (AC products)
5.
Quick installation guide
7.
Certification
9.
CD
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

【Product Overview】

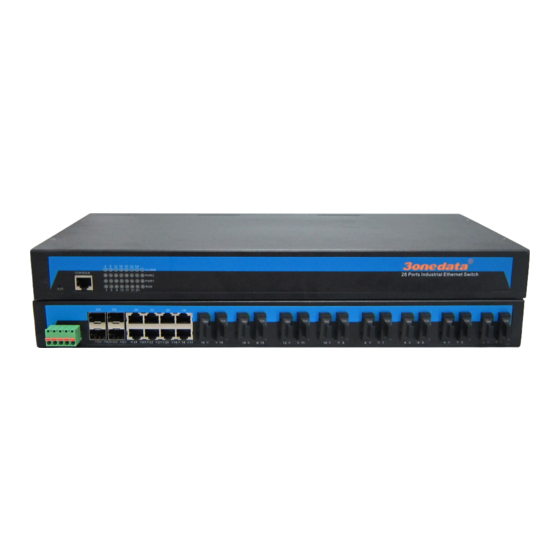

This series of products are 28-port 100M/Gigabit layer 2
rack-mounted managed industrial Ethernet switches. Models
include:
Model I.
Model II.
Model III. IES5028-4GS-4F (4 Gigabit SFP + 20 100M
Model IV. IES5028-4GS-8F (4 Gigabit SFP + 16 100M
Model V.
Model VI. IES5028-4GS-16F (4 Gigabit SFP + 8 100M

【Panel Design】

Front view
Rear view
2.
Terminal block
4.
Mounting lug
6.
Foot pad
8.
Warranty card
IES5028-4GS (4 Gigabit SFP + 24 100M copper
ports)
IES5028-4GS-2F (4 Gigabit SFP + 22 100M
copper ports + 2 100M fiber ports)
copper ports + 4 100M fiber ports)
copper ports + 8 100M fiber ports)
IES5028-4GS-12F (4 Gigabit SFP + 12 100M
copper ports + 12 100M fiber ports)
copper ports +16 100M fiber ports)
Top view
Left view
Right view
1.
2.
Console port
3.
Ethernet port connection indicator
4.
Device running status indicator RUN
5.
Power supply input status indicator PWR
6.
Relay alarm status indicator ALM
7.
Rack mounting lug
8.
Power input terminal block
9.
Relay output terminal block
10.
Gigabit SFP slot
11.
Ethernet port connection indicator
12.
100M copper port
13.
100M fiber port

【Mounting Dimension】

Unit: mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IES5028 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for 3onedata IES5028 Series

  • Page 1 IES5028-4GS (4 Gigabit SFP + 24 100M copper Top view ports) Model II. IES5028-4GS-2F (4 Gigabit SFP + 22 100M IES5028 Series Managed copper ports + 2 100M fiber ports) Industrial Ethernet Switch Model III. IES5028-4GS-4F (4 Gigabit SFP + 20 100M Quick Installation Guide copper ports + 4 100M fiber ports) Model IV.
  • Page 2 This series of products supports single power supply scheme, sufficient size. power supply value range is: 100~240VAC/DC. Step 2 Adopt screws to install the mounting lugs in the device position as figure below.  Dual power supply This series of products support dual power supply scheme and provide P1 and P2 independent power supply systems.
  • Page 3 【Specification】 The device provides 1 program debugging port based on way of logging in to device’s configuration interface via IE RS-232 serial port; it can manage the device CLI commands browser is shown as below: Panel after being connected to PC. The interface adopts RJ45 port. Step 4 Configure the IP addresses of computer and the Gigabit SFP...
  • Page 4 IES5028-4GS-4F No-load: 10W@220VAC Full-load: 15.7W@220VAC IES5028-4GS-8F No-load: 12.6W@220VAC Full-load: 18.3W@220VAC IES5028-4GS-12F No-load: 15.2W@220VAC Full-load: 20.9W@220VAC IES5028-4GS-16F No-load: 17.8W@220VAC Full-load: 23.5W@220VAC Environmental Limits Working temperature -40~75℃ Storage temperature -40~85℃ Working humidity 5%~95% (no condensation) Protection grade IP30 (metal shell)
