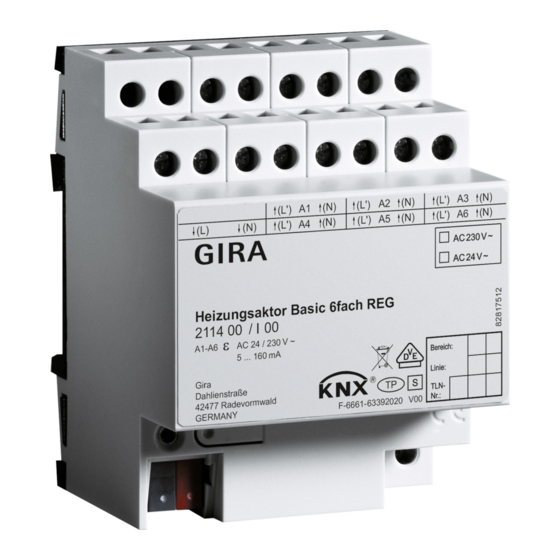

- Page 1 Operating instructions Heating actuator basic, 6-gang Order no. 2114 00...
-
Page 2: Table Of Contents
Heating actuator basic, 6-gang Table of Contents Safety instructions ...................... 3 Device components...................... 3 Function .......................... 3 Information for electrically skilled persons ................ 5 Mounting and electrical connection................ 5 Commissioning ...................... 7 Technical data ........................ 7 Troubleshooting ........................ 8 Warranty.......................... 9 32590712 10870571 22.03.2023 2 / 9... -
Page 3: Safety Instructions
Heating actuator basic, 6-gang Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock. Device is not suitable for disconnection from supply voltage because mains potential even is applied on the load when the device is switched off. - Page 4 Heating actuator basic, 6-gang sioning of the device are carried out with the aid of KNX-certified software. The latest versions of product database and the technical descriptions are available on our website. Intended use – Switching of electrothermal valve drives for heaters or cooling ceilings –...
-
Page 5: Information For Electrically Skilled Persons
Heating actuator basic, 6-gang Information for electrically skilled persons Mounting and electrical connection DANGER! Electric shock when live parts are touched. Electric shocks can be fatal. Always disconnect device before working on it. For this, switch off all corresponding circuit breakers, secure against being switched on again and check that there is no voltage. - Page 6 Heating actuator basic, 6-gang Connect actuators for frost-sensitive rooms to outputs A1 and A4 . These are switched off last in the event of overload. Do not exceed maximum number of valve drives per output (see "Technical data"). Observe the technical data of the valve drives used. Do not connect the neutral conductor from the output terminals through to additional devices.
-
Page 7: Commissioning
Heating actuator basic, 6-gang Image 4: Installing the cover ￭ Route the bus line towards the rear. ￭ Install cover on top of the bus terminal so that it snaps into place (see figure 4). Removing the cover Image 5: Removing the cover ￭... -
Page 8: Troubleshooting
Heating actuator basic, 6-gang Rated voltage KNX DC 21 ... 32 V SELV Power consumption KNX max. 250 mW Power loss max. 1 W Heating outputs Contact type Semi-conductor (Triac), ε Switching voltage AC 24 / 230 V ~ Mains frequency 50 / 60 Hz Switching current 5 ... -
Page 9: Warranty
Please submit or send faulty devices postage paid together with an error de- scription to your responsible salesperson (specialist trade/installation company/elec- trical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG...
