Summary of Contents for Gira 2101 Series

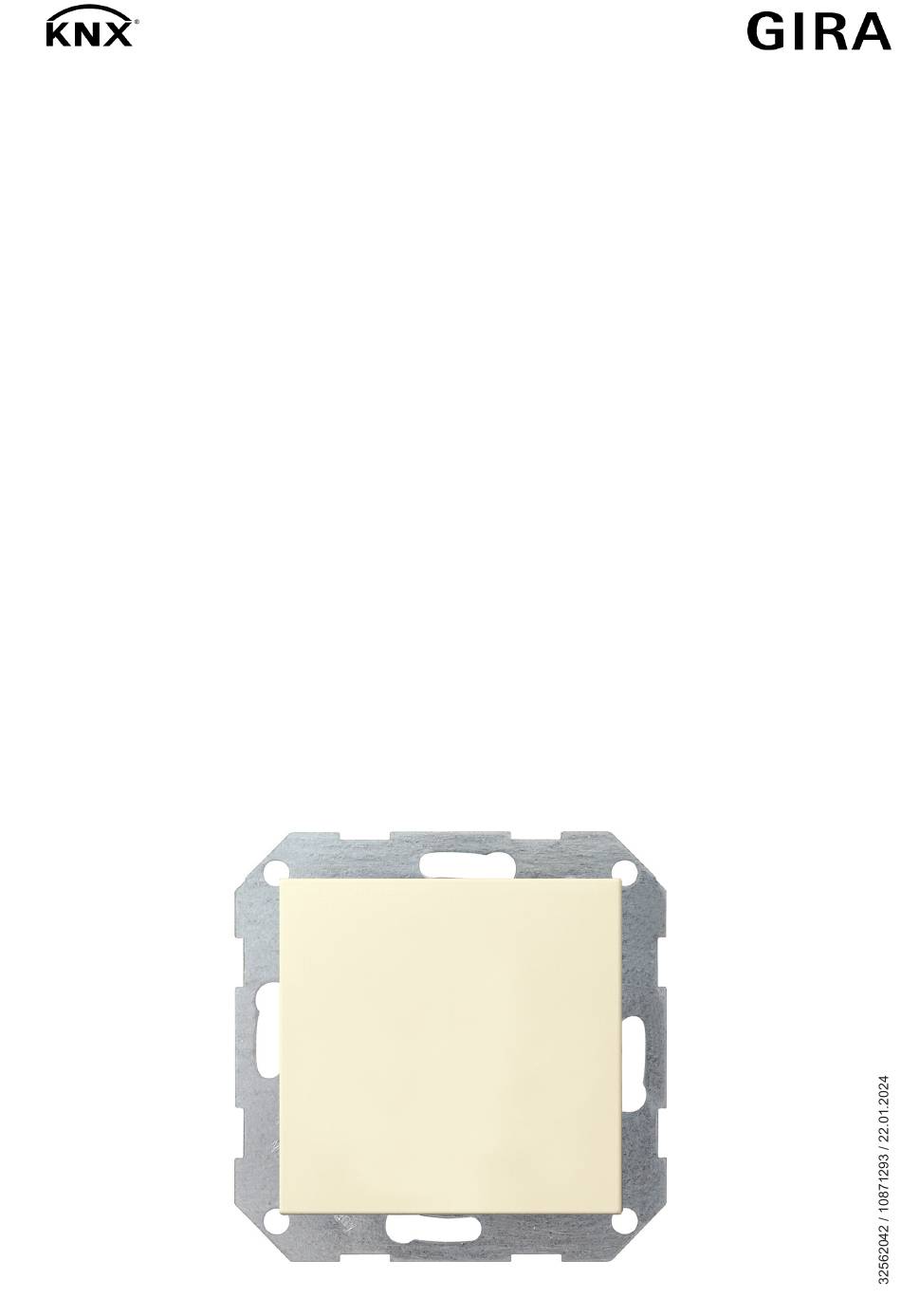

- Page 1 Operating instructions Object regulator Order no. 2101 .. Product image non-binding...
- Page 2 Object regulator Table of contents Safety instructions ...................... 3 Device components ...................... 3 System information ...................... 3 Intended use ........................ 4 Product characteristics ..................... 4 Information for electrically skilled persons ................ 4 Mounting and electrical connection................ 4 Commissioning ...................... 6 Technical data ........................
- Page 3 Object regulator Safety instructions Electrical devices may be mounted and connected only by electrically skilled persons. Serious injuries, fire or property damage are possible. Please read and follow the manual fully. Danger of electric shock at the KNX installation. Do not connect any external voltage to the inputs.
- Page 4 Object regulator The function of the device depends on the software. Detailed information on the soft- ware version and the respective scope of functions as well as the software itself can be obtained from the manufacturer´s product database. The device is planned, installed and commissioned with the aid of KNX-certified soft- ware.
- Page 5 Object regulator Do not mount controllers near sources of interference, such as electric cookers, refri- gerators, draughts or direct sunlight. This would influence the temperature measure- ment of the controller. Observe the routing conditions for SELV. Do not route input cables parallel to mains cables. Otherwise there might be EMC in- terference.
- Page 6 Object regulator Figure 4 Optional: Route an external temperature sensor in an empty pipe and guide the sensor head out at the measurement location. Select the installation location for the temperature sensor so that it can measure the temperature without any influence from sources of interference. ￭...
- Page 7 Please submit or send faulty devices postage paid together with a fault de- scription to your responsible salesperson (specialist trade / installation company / electrical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG...
- Page 8 Object regulator Deutschland Tel +49(0)21 95 - 602-0 Fax +49(0)21 95 - 602-191 www.gira.de info@gira.de 32562042 10871293 22.01.2024 8 / 8...
