Summary of Contents for Fri-Jado TDR 7 AC

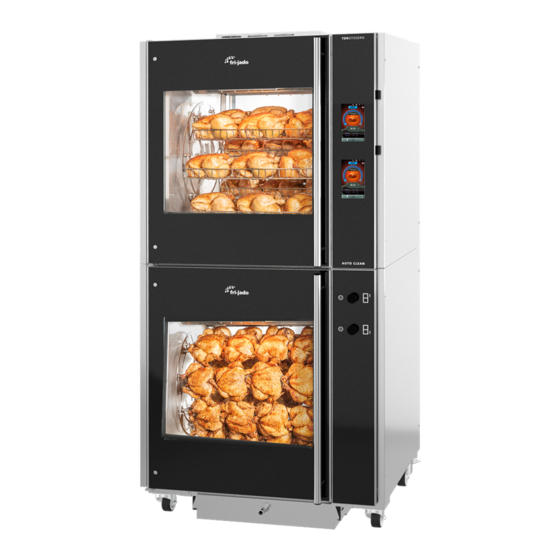

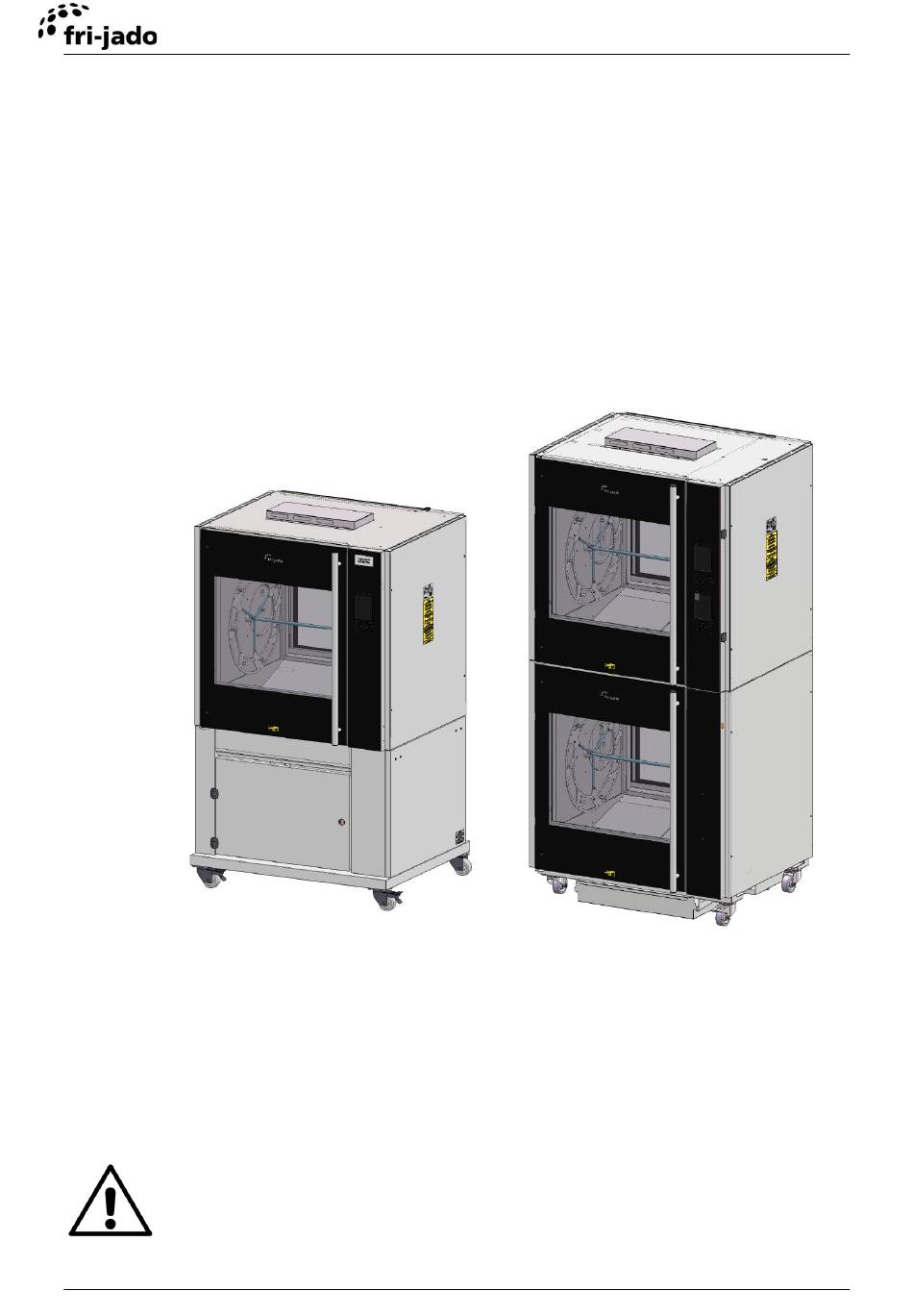

- Page 1 TDR-AC USER MANUAL TDR 7 AC / TDR 7+7 AC TDR 8 AC / TDR 8+8 AC WARNING Read the instructions before using the machine. EN (Original Instruction) 9124343 / 2009...
- Page 2 TDR-AC KEEP THIS USER MANUAL FOR FUTURE USE © 2020 Fri-Jado B.V., Oud Gastel, The Netherlands. We advise you to contact your supplier for the guarantee period and conditions. Further we refer to our General Terms and Conditions for Sales and Delivery that are available upon request.
-
Page 3: Table Of Contents
TDR-AC CONTENTS INTRODUCTION ......................5 General ..........................5 Identification of the unit ..................... 5 Pictograms and symbols ....................5 Safety instructions ......................6 1.4.1 General ........................6 1.4.2 Moving ......................... 7 Hygiene ..........................7 Service and technical support ................... 7 Storage .......................... - Page 4 TDR-AC Adding extra time to the active program ................20 Interrupt a program ......................21 Set the timer (optional) ....................21 Reset alarm signal ......................21 Power down ........................21 SETTINGS ........................22 General ........................... 22 Information ........................22 6.2.1 Access ........................
-
Page 5: Introduction
TDR-AC INTRODUCTION General This manual is intended for the user of the TDR-AC (Turbo Deli Rotisserie with cleaning feature). The features and controls are being described, along with directions for the safest and most efficient use, in order to guarantee a long life of the unit. All pictograms, symbols and drawings in this manual apply to all TDR-AC models. -
Page 6: Safety Instructions
TDR-AC Safety instructions WARNING The outside of the unit can be very hot. WARNING The maximum load on top of the unit may never exceed 50 kg (110 lbs). WARNING Risk of slippery floor: Spills may cause slippery surfaces, clean-up promptly. WARNING See installation instructions for grounding requirements. -
Page 7: Moving
TDR-AC 1.4.2 Moving When moving the unit: • Before moving the unit, first switch off the mains voltage by pulling the plug from the wall socket and empty the fat collecting container. After that, cool-down the unit for at least ten minutes. -
Page 8: Description Of The Unit
Communication through USB enables easy read-out, re-work and creating of programs via a PC. For this, special software is available at Fri-Jado. The unit has an automated cleaning program that cleanses the unit. -
Page 9: Installation And First Use
TDR-AC INSTALLATION AND FIRST USE All packing materials used for this unit are suited for recycling. After unpacking, check the state of the unit. In case of damage, store the packing material, and contact the transporter within fifteen working days after receiving the goods. Unpacking the unit (Single unit shown) 1. -
Page 10: Installation And Positioning
TDR-AC Installation and positioning WARNING Electric chock hazard. Grounding instructions: only connect the appliance to an alternating current provided by a grounded wall socket, with a mains voltage in accordance with the information indicated on the data plate of the appliance. It is the consumer's responsibility to make sure the electrical installation conforms with current national and local codes and wiring regulations. -
Page 11: First Use
TDR-AC • An open drainage with a diameter of at least 40 mm (1.6 inch) must be available near the unit. • The unit has a mains plug, and must be connected to a wall socket with the proper mains voltage. -
Page 12: Operation And Use
TDR-AC OPERATION AND USE Control Panel SELECTION BUTTONS DISPLAY SCREEN START ROTOR BUTTON PAUSE OK BUTTON STOP CANCEL ROTATION PAD (DIAL) Button Function SELECTION BUTTONS Selecting tabs in display screen. ON / OFF Switching the unit on and off. START / PAUSE Starting and ending a program. -
Page 13: Switching-On The Unit
Whole uncut chickens should always be grilled using the meat forks. This way their natural fat will baste each other, giving a perfectly slender cooking result. Refer to the You-Tube movie: “Fri-Jado instruction for binding and loading chicken”. For preparing chicken or any other poultry, you can work as follows. -
Page 14: Loading The Rotisserie Using V-Shape Spits (Accessory)
TDR-AC 1. Insert one point of the meat fork through the chest at the position of the wings. Insert the other point through the drum sticks. Don’t forget to include the wings. 2. Leave some space between the products, for an even exposure and browning. 3. -
Page 15: Loading The Rotisserie Using Meat Baskets (Accessory)
TDR-AC 4.3.3 Loading the rotisserie using meat baskets (accessory) If you are using meat baskets, act as follows: • Attach the meat baskets to the appropriate pins. • Whilst loading the unit with meat baskets, you must see to it, that the rotor gets evenly loaded, so that the mass of the products is evenly spread over de rotor, causing an equal balance. -
Page 16: Grilling Time
3. Take the meat fork at its other end and take it out of the unit. 4. Remove the products from the meat fork. Refer to the You-Tube movie: “Fri-Jado instruction for unloading chicken from a rotisserie”. 4.5.2 Taking out the V-shape spit (accessory) For taking out the V-shape spit you can use the same principle as described in section 4.5.1. -
Page 17: Taking Out The Meat Basket (Accessory)
TDR-AC 4.5.3 Taking out the meat basket (accessory). When taking out the meat basket from the TDR it is best to act as follows: Slightly lift both ends of the meat basket. Move the basket towards either the left or right hand side of the unit. This action unlocks one end of the basket. -
Page 18: Switching-Off The Unit
TDR-AC Switching-off the unit Press ON/OFF button and hold for approx. 3 seconds. 18 / 36... -
Page 19: Operate
TDR-AC OPERATE Starting a program 1. Press the left-hand selection button. 2. Select the required program. The total duration of the program is shown in minutes next to the name of the program. 3. Press START/PAUSE. Use the rotation pad or arrow buttons to toggle between the programs. •... -
Page 20: While Cooking
TDR-AC While cooking WARNING Opening the door during a grilling program or a cleaning program causes the unit to stop and a warning is shown. The unit will continue when the door is closed. During the cooking process, the display shows a graph with the planned trajectory (orange time line) and the set temperature (light orange field). -
Page 21: Interrupt A Program
TDR-AC Interrupt a program Interrupt temporarily: 1. Press START/PAUSE. 2. Press START/PAUSE again to resume the program. Interrupt definitely: 1. Press STOP/CANCEL. 2. Select “yes”. 3. Press OK. Set the timer (optional) This function allows the user to automatically start a program on a pre-determined date and time. To enable this function, the “timer function”... -
Page 22: Settings
TDR-AC SETTINGS General The settings of the unit can be changed by using the control panel. There are three kinds of settings: • Information • Manager • Service Information 6.2.1 Access 1. Activate the settings menu (right selection button). 2. Select “information”. 3. -
Page 23: Manager
TDR-AC Manager The Manager menu is used to set the parameters. 6.3.1 Access 1. Activate the settings menu (right selection button). 2. Select “manager”. 3. Press OK. When a pin code has been set: 1. Use the rotation pad to enter the pin code. 2. -
Page 24: Program
TDR-AC PROGRAM General Your dealer has programs that are loaded into the unit by means of a computer. These programs vary with the composition of the product and the customer’s desire, and are customer dependent. You can protect the cooking programs and the ‘secured settings’ by changing pin code “0000” in the menu, into any other pin code. -
Page 25: Programming Cooking Step
TDR-AC 7.2.2 Programming cooking step The table on the screen contains the following columns: • Time duration • Temperature Row 1 shows step 1, row 2 shows step 2, etc. There can be no more than 9 steps. A selected cell shows an orange frame. To alter a cell, it needs to be ‘opened’... -
Page 26: Edit Programs
TDR-AC Edit programs 1. Select “Edit program”. 2. Press OK. 3. Select the required program. 4. Press OK. Edit the program name 1. Select the position of the character. 2. Change the character using the rotation pad. 3. Use a ‘blank’ to erase a character. 4. -
Page 27: Deleting Programs
TDR-AC Deleting programs Deleting of a program cannot be undone. 1. Select “delete program”. 2. Press OK. 3. Select the program. 4. Press OK. 5. Check whether the program name matches the program you wish to delete. 6. Select “yes” if this is the case. Select “no” if not. 7. -
Page 28: Sorting Programs
TDR-AC Sorting programs This function allows you to sort programs alphabetically. 1. Select “sorting alphabetically”. 2. Press OK. 3. Use arrows to select “yes”. 4. Press OK. 28 / 36... -
Page 29: Cleaning And Maintenance
TDR-AC CLEANING AND MAINTENANCE WARNING Appliance must be disconnected from the power supply during manual cleaning or maintenance and when replacing parts. Do not use aggressive or abrasive materials. These will damage the surface which will make it more difficult to remove dirt. Clean the inside, the removable parts and the accessories thoroughly with cleanser and water before putting the unit into use. -
Page 30: Preparing The Tablet Dispenser
9. Inspect the Rotisserie and clean it manually if necessary. 10. Place the bottom filter and deflector plate. The unit is now ready for use. Contact your supplier for the appropriate Fri-Jado Rotisserie Cleaning Tablets. 30 / 36... -
Page 31: Deep Cleaning
TDR-AC Deep Cleaning WARNING Opening the door during a cleaning program causes the unit to stop and go to fault state. The program will continue when the door is closed. Depending the temperatures you are operating on, pollution will be build up in time due of burning in the fat particles on the walls of the Rotisserie. -
Page 32: Malfunctions And Service
TDR-AC MALFUNCTIONS AND SERVICE Before you contact your supplier/dealer in case of a malfunction, there are some items you can check yourself: • Is the power supply working properly? Check fuses and differential switch. • Has the timer clock been properly set? Item Malfunction Possible action... -
Page 33: Technical Specifications
200 – 500 kPa 200 – 500 kPa Water, pressure Drain, open connection Min. 40 mm Min. 40 mm American Models Model TDR 7 AC TDR 7+7 AC Dimensions Width 41 inch 41 inch Depth 38 ½ inch 38 ½ inch Height 70½... - Page 34 TDR-AC Notes. 34 / 36...
- Page 35 TDR-AC Notes. 35 / 36...
- Page 36 TDR-AC Fri-Jado Inc. 1401 Davey Road, Suite 100 Woodridge IL 60517 Tel: +1-630-633-7950 www.frijado.com 36 / 36...
