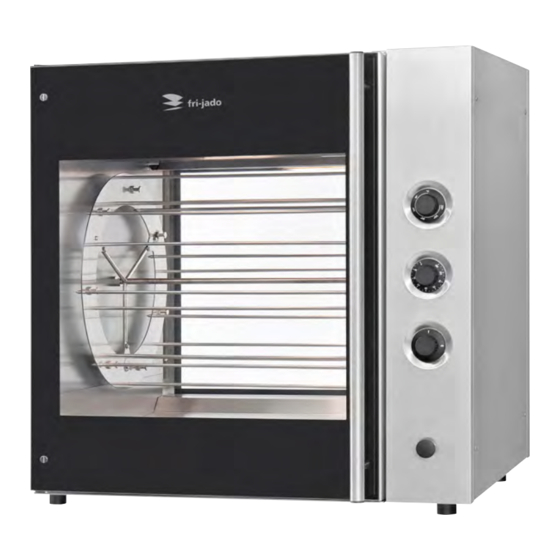

Fri-Jado TDR 5 M Installation Manual
Rotisserie oven/warmer
Hide thumbs
Also See for TDR 5 M:
- Service manual (64 pages) ,
- Installation manual (28 pages) ,
- Quick start manual (2 pages)
Table of Contents
Advertisement
INSTALLATION MANUAL
TDR - ROTISSERIE OVEN MODELS
TDW - WARMER MODELS
MODELS
TDR 5 M
TDR 8 M
TDW 5 M
TDW 8 M
TDR 5 P
eco
TDR 8 P
eco
TDW 5 P
TDW 8 P
This manual is prepared for the use of trained Service Technicians and
should not be used by those not properly qualified. If you have atten-
ded a training for this product, you may be qualified to perform all the
This manual is not intended to be all encompassing. If you have not
attended training for this product, you should read, in its entirety, the
repair procedure you wish to perform to determine if you have the ne-
cessary tools, instruments and skills required to perform the procedure.
Procedures for which you do not have the necessary tools, instruments
Reproduction or other use of this Manual, without the express written
WWW.FRIJADO.COM
Model TDR 5 M
- NOTICE -
procedures in this manual.
and skills should be performed by a trained technician.
consent of Fri-Jado, is prohibited.
Model TDR 8 P
Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014
eco
USA
Advertisement
Table of Contents
Related Manuals for Fri-Jado TDR 5 M
Summary of Contents for Fri-Jado TDR 5 M
- Page 1 TDR 5 P TDR 8 P TDW 5 P TDW 8 P Model TDR 5 M Model TDR 8 P - NOTICE - This manual is prepared for the use of trained Service Technicians and should not be used by those not properly qualified. If you have atten- ded a training for this product, you may be qualified to perform all the procedures in this manual.
-
Page 2: Installation Manual Tdr5/8 Tdw 5/8 Form 9123904 Rev
Page 2 Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014... - Page 3 TABLE OF CONTENTS Versions Version Issue date Remarks dd/mm/yy 03/2012 01/03/2012 First release. 02/2014 01/02/2014 TDR P and TDRW added. Page 3 Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014...
-
Page 4: Table Of Contents
TDRW 8 M Pass Through ........................22 TDRW 8 P Pass Through ........................23 TDR 5 M and TDR 5 P Pass Through on base ..................24 TDR 8 M and TDR 8 P Pass Through on base ..................25 TDW 5 M Pass Through ........................ -
Page 5: General Technical Data
GENERAL TECHNICAL DATA GENERAL TECHNICAL DATA This manual covers the TDR series rotisserie ovens and the TDW series warmers. Ovens and warming cabinets come in two sizes. Ovens and warmers will also be delivered in stacked versions. • TDR 5 – Oven with 5 spits (15 to 20 chickens) or 5 baskets (15 chickens). • TDR 8 - Oven with 8 spits (28 to 35 chickens) or 7 baskets (28 chickens). • TDW 5 - Warming cabinet 25 to 30 chickens. -
Page 6: Installation Procedures
INSTALLATION PROCEDURES INSTALLATION PROCEDURES • Unpacking of the unit. • Remove the pallet under the unit with the help of a fork lift. • Put the unit on his location. • Check if there is enough free space around the unit (see installation drawing). • Check the electrical supply. • Tethering of the unit. • TDR: Make a test run on 482°F. • TDW: Make a test run on 210°F. • Give instructions to the operator. UNPACKING THE UNIT Immediately after unpacking the oven, check for possible shipping damage. If the oven is found to be damaged, save the packaging material and contact the carrier within 15 days of delivery. Page 6 Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014... -
Page 7: Location
INSTALLATION PROCEDURES REMOVAL OF PALLET The standard way to remove the rotisserie or warmer from a pallet is with a fork lift. See pictures. Open door and remove the drawer. Lift the unit from pallet and put the unit in its place. Note: when lifting a stacked unit, always use the drawer of the bottom unit. Another possibility is to disassemble the pal- let. For the pallet of the TDR 8 follow the procedure on the photo. LOCATION To avoid short-circuiting, the units may not be used outdoors. Placing under a screen is allo- wed. Page 7 Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014... -
Page 8: Electrical Supply
INSTALLATION PROCEDURES The oven must be installed on a level surface. The installation location must allow adequate clearances for servicing and proper operation. IMPORTANT: Make sure you lea- ve sufficient space around the rotisserie or warmer to easily remove or insert the rotor. If the base has (rotating) wheels, the floor on which it rests must be level. ELECTRICAL SUPPLY Prior to installation, test the electrical service to assure that it corresponds with the specificati- ons on the machine data plate located on the right side panel near the controls. The connecting cable for the unit must be equipped with an approved plug connection. If use is to be made of a permanent connection, the connecting cable must be connected to a manual on/off switch that is installed near the unit in a clear visible manner. The connecting cable for the unit must be equipped with an approved plug connection. If use is to be made of a permanent connection, the connecting cable must be connected to a manual on/off switch that is installed near the unit in a clear visible manner. For a 3-phase 208 V ~ circuit without neutral, For a single-phase 208 V ~ circuit with neutral, the unit must be connected according to the the unit must be connected according to the figure below. -
Page 9: Legs / Castors
INSTALLATION PROCEDURES LEGS / CASTORS Each oven and warmer is furnished on 1 15/16” legs. Stacked models are furnished with 2 swivel and 2 locking swivel castors. A castor-equipped stand with convenient storage drawer is availa- ble; the oven is mounted on top of the stand. TETHERING OF THE UNIT (For model TDR 5 and TDR 8 units when stacked or placed on base with castors) Warning: Safety standards require that, when this appliance is properly connected to the elec- trical power supply using flexible conduit, adequate means be provided to limit movement of the appliance without depending on or transmitting stress to the electrical conduit. This means that, as part of the installation, the base or bottom unit of stacked models must be secured to the building structure (typically either wall or floor) to limit the movement of the appliance and, thus, helping to prevent damage to the conduit during cleaning, maintenance and service operations. A tether bracket, as shown on the drawing below, is provided with the base or stacking kit. Based on the routing of the flexible conduit, the bracket must be installed along with the caster to one corner of the base using the hardware provided. The remaining open hole in the center of the tether bracket is to be used to secure one end of the tether (locally supplied chain, cable, etc.). The other end of the tether is to be secured to an anchoring point in the building struc- ture. Note: Length of tether must be shorter than the flexible conduit to make sure that during appli- ance movement, no stress is transmitted to the conduit. -
Page 10: Test Run
INSTALLATION PROCEDURES TEST RUN The oven must be burned in to release any odors that might result from heating the new oven surfaces. Operate the oven at maximum temperature setting of 482°F for 30 minutes and the warmer on 210°F. Smoke with an unplaesant odour will normally be given off during this burn- in period. HEAT EXTRACTION OF THE ROTISSERIE Although an extraction hood is not prescribed, it could be desired that a hood is placed over the rotisserie. The TDR 8 produces about 350 cf water vapour and the TDR 5 about 200 cf. When placing the rotisserie under an extraction hood you have to consider the following guide lines: - The minimum capacity of the extraction hood has to be 25000 cf/h. - The extraction hood has to extend minimum by 8” on all sides of the rotisserie. - The extraction hood has to have a free hight, above the rotisserie, of a minimum of 12”. - The rotisserie has to be accessible for service purposes. - The extraction hood has to be sloping on the inside for the condensation to run down. Around the hood there has to be a gutter with a connection for the water to run down a drain. INSTRUCTIONS FOR OPERATORS After installation of the rotisserie or warmer, the operator of the unit has to be instructed. The instruction has to cover the following subjects: • Programming and options. • Working of the unit. • Free space of unit for cooling of drive motor and blowers. • Review the user manual. • Periodical maintenance: Cleaning of fan plate every month. • How to react for information or service calls. Page 10 Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. - Page 11 PLACING AND CONNECTING Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014 Page 11...
-
Page 12: Placing And Connecting Of The Models
Space between a rotisserie and a wall or ceiling Location for socket *) length is measured from the point where the cables coms out of the unit TDR 5 M PASS THROUGH Page 12 Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014... -
Page 13: Tdr 5 P Pass Through
PLACING AND CONNECTING TDR 5 P PASS THROUGH Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014 Page 13... -
Page 14: Tdr 8 M Pass Through
PLACING AND CONNECTING TDR 8 M PASS THROUGH Page 14 Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014... -
Page 15: Tdr 8 P Pass Through
PLACING AND CONNECTING TDR 8 P PASS THROUGH Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014 Page 15... -
Page 16: Tdr 5 + 5 M Pass Through
PLACING AND CONNECTING TDR 5 + 5 M PASS THROUGH Page 16 Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014... -
Page 17: Tdr 5 + 5 P Pass Through
PLACING AND CONNECTING TDR 5 + 5 P PASS THROUGH Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014 Page 17... -
Page 18: Tdr 8 + 8 M Pass Through
PLACING AND CONNECTING TDR 8 + 8 M PASS THROUGH Page 18 Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014... -
Page 19: Tdr 8 + 8 P Pass Through
PLACING AND CONNECTING TDR 8 + 8 P PASS THROUGH Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014 Page 19... -
Page 20: Tdrw 5 M Pass Through
PLACING AND CONNECTING TDRW 5 M PASS THROUGH Page 20 Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014... -
Page 21: Tdrw 5 P Pass Through
PLACING AND CONNECTING TDRW 5 P PASS THROUGH Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014 Page 21... -
Page 22: Tdrw 8 M Pass Through
PLACING AND CONNECTING TDRW 8 M PASS THROUGH Page 22 Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014... -
Page 23: Tdrw 8 P Pass Through
PLACING AND CONNECTING TDRW 8 P PASS THROUGH Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014 Page 23... -
Page 24: Tdr 5 M And Tdr 5 P Pass Through On Base
PLACING AND CONNECTING TDR 5 M AND TDR 5 P PASS THROUGH ON BASE Page 24 Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014... -
Page 25: Tdr 8 M And Tdr 8 P Pass Through On Base
PLACING AND CONNECTING TDR 8 M AND TDR 8 P PASS THROUGH ON BASE Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014 Page 25... -
Page 26: Tdw 5 M Pass Through
PLACING AND CONNECTING TDW 5 M PASS THROUGH Page 26 Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014... -
Page 27: Tdw 5 P Pass Through
PLACING AND CONNECTING TDW 5 P PASS THROUGH Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014 Page 27... -
Page 28: Tdw 8 M Pass Through
PLACING AND CONNECTING TDW 8 M PASS THROUGH Page 28 Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014... -
Page 29: Tdw 8 P Pass Through
PLACING AND CONNECTING TDW 8 P PASS THROUGH Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014 Page 29... - Page 30 EMPTY PAGE Page 30 Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014...
- Page 31 EMPTY PAGE Installation Manual TDR5/8 TDW 5/8 form 9123904 rev. 02/2014 Page 31...
- Page 32 For technical support call: 877 374-5236 For parts call: 877 392-7851 Fri-Jado Inc. •1401 Davey Road • Sweet 100 • Woodridge, IL. 60517 • USA • tel. 630-630-7950 • fax 630-689-11424 • toll free 877-FRI-JADO • us.info@frijado.com • www.frijado.com...
