SERVICE MANUAL
BAKE STAR INTELLIGENT
VERSIONS
BS3i
BS5i
BS8i
BS10i
WWW.FRIJADO.COM
This manual is prepared for the use of trained Service Technicians and
should not be used by those not properly qualified. If you have attended
a trianing for this product, you may be qualified to perform all the proce-
This manual is not intended to be all encompassing. If you have not
attended a training for this product, you should read, in its entirety,
the repair procedure you wish to perform to determine if you have the
necessary tools, instruments and skills required to perform the procedure.
Procedures for which you do not have the necessary tools, instruments
and skills should be performed by a trained technician.
Reproduction or other use of this Manual, without the express written
consent of Fri-Jado, is prohibited.
- NOTICE -
dures in this manual.
Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2008
BS5i
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fri-Jado Bake Star intelligent series
Summary of Contents for Fri-Jado Bake Star intelligent series
- Page 1 Procedures for which you do not have the necessary tools, instruments and skills should be performed by a trained technician. Reproduction or other use of this Manual, without the express written consent of Fri-Jado, is prohibited. WWW.FRIJADO.COM Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2008...
- Page 2 Page 2 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007...
-
Page 3: Table Of Contents
TABLE OF CONTENTS General technical data ....................4 Technical Data ..........................4 Control panel ........................5 The Settings menu ......................14 Settings Menu ..........................14 Manager Menu ..........................15 Service Menu ..........................16 Service parameters .........................17 Exploded views & Partlists ..................... 18 Bake Star - sheet work ........................18 Bake Star - electrics ........................19 Bake Star - fan assembly .........................20 Electrical Diagrams ...................... -
Page 4: General Technical Data

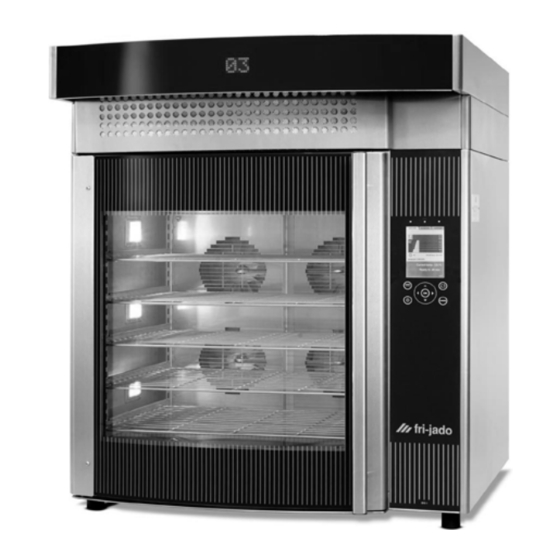

GENERAL TECHNICAL DATA General TeChniCal DaTa This manual covers the Bake Star intelligent series bake-off ovens. The Bake Star intelligent comes in various sizes with 3, 5 8 or 10 baking levels for standard 40x60 cm baking trays. The ovens are also available in stacked versions of 3+3 3+5 and 5+5. -
Page 5: Control Panel
PROGRAMMING INSTRUCTIONS COnTrOl Panel DISPLAy AND KEyS Selection keys (3x) Display Start/Pause key Door open key Turning knob OK/Enter key Stop/Cancel key On/Off key SETTING ThE BSI Press and hold the On-Off key during 2 seconds. The display lights up and the oven is On. - Page 6 PROGRAMMING INSTRUCTIONS ADD A PROGRAM Press program key. Note: when a pin code has been set, first enter the pin code and confirm with OK. Go to add program with turning knob and confirm with OK. edit the program name with turning knob and confirm with 2x OK. Page 6 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev.
- Page 7 PROGRAMMING INSTRUCTIONS ADD A PROGRAM Select time table with turning knob and confirm with OK. Set the time of the baking step and confirm with OK. Select temperature table with turning knob and confirm with OK. Set the temperature of the ba- king step and confirm with OK. Program next baking step if necessary. Program temperature hOlD if necessary. Select next time table and set this on hOlD with tur- ning knob and confirm with OK.
- Page 8 PROGRAMMING INSTRUCTIONS PRE hEATING When pre heating step is activated in manager menu, the oven will start up with pre heat pro- gram after the program start. after reaching the pre heat temperature the display will indicate: lOaD PrODUCTS. LOADING wITh PRODUCTS Open the door (door open key).
- Page 9 PROGRAMMING INSTRUCTIONS PROGRAM STOP Press cancel key. Select YeS with turning knob and confirm with Page 9 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007...
- Page 10 PROGRAMMING INSTRUCTIONS OPTIONAL SETTINGS - interrupting an active program - editing a program - Deleting a program - running test mode - Demo mode INTERRUPTING A PROGRAM Press start/pause key. heating and blowers stop. Press start/pause key again to resume. EDITING A PROGRAM Press program key.
- Page 11 PROGRAMMING INSTRUCTIONS DELETING A PROGRAM Press program key. Note: when a pin code has been set, first enter the code and confirm with OK. Go to delete program with turning knob and confirm with OK. now select the program to delete and confirm with OK.
- Page 12 PROGRAMMING INSTRUCTIONS DEMO MODE in the demo mode you can simulate a baking cycle. This is used for exhibitions and the heater will not switch on in this mode. Go to the service menu and activate the access code 4878. Go to demo mode with the turning knob and adjust this to YeS.
- Page 13 PROGRAMMING INSTRUCTIONS SwITChING ThE OVEN Off Press and hold both keus On/Off and Settings until the display light goes out and the oven is turned OFF. Page 13 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007...
-
Page 14: The Settings Menu
THE SETTINGS MENU The SeTTinGS MenU SETTINGS MENU SETTINGS MENU SW 1.16 ON - OFF ON - OFF MANAGER MENU ----> IN MAIN MENU's Navigate by arrows up and down or the dial. Change value by left or right arrow. Entering Submenu (>) by "right"... -
Page 15: Manager Menu
THE SETTINGS MENU MANAGER MENU MANAGER MENU SW 1.16 °C - °F NO - 1x - YES -50°C ..+50°C or -90°F ... +90°F NO - TIME 24HR - AM/PM DMY - MDY YES - NO -30°C ... +30°C or -54°F ... +54°F YES - NO - Time Page 15 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. -
Page 16: Service Menu
THE SETTINGS MENU SERVICE MENU SERVICE MENU SW 1.16 access code 4878 MULTI - M BAKE - STGi 1 ..10 YES - NO YES - NO Page 16 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 17: Service Parameters
THE SETTINGS MENU Parameter lijst BSi SERVICE PARAMETERS I-control SW1.16 SETTINGS MENU Default Possibilities level 2 level 3 Light on - off Alarm signal on - off Set time Dutch time Set date Actual date Set contrast 0….120 Information softw. version Manager --->... -
Page 18: Exploded Views & Partlists
ExPLODED vIEWS & PARTLISTS exPlODeD VieWS & ParTliSTS “Y” “X” “X” “Y” “W” “Z” 1.11 “Z” “W” fri-jado GB/ 2-03 9123---/0515 Bake Star - sheet work euro products Page 18 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2008... -
Page 19: Bake Star - Electrics
75-4 75-5 75-6 80-5 80-1 80-2 80-3 80-4 64-65 50-4 50-1 50-5 49-2 61-2 (61-3) 50-2 49-1 50-3 Bake Star - electrics fri-jado GB/ 2-05 9123---/0515 Page 19 euro products Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2008... -
Page 20: Bake Star - Fan Assembly
ExPLODED vIEWS & PARTLISTS 98-1 98-2 98-3 91.1 95.1 107-2 107-4 107-3 107-1 99-1 99-2 99-3 99-4 99-5 Bake Star - fan assembly Page 20 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2008... - Page 21 ExPLODED vIEWS & PARTLISTS Item Partnumber Description Item Partnumber Description 3704037 Hinge outer window 5L 3704059 Holder, magnet 5L 3704141 Hinge outer window 8L 3704124 Holder, magnet 8L 3704142 Hinge outer window 10L 3704134 Holder, magnet 10L 3704241 Hinge outer window 3L 3704234 Holder, magnet 3L 16-20...
- Page 22 ExPLODED vIEWS & PARTLISTS Item Partnumber Description Item Partnumber Description 49,4 3704564 Support , control panel 5L 3500046 Temperature sensor holder 49,4 3704566 Support , control panel 8L 9192204 Ribboncable with 3 connectors, 1,5mtr. 49,4 3704567 Support , control panel 10L 3500044 Blower 49,3...
- Page 23 ExPLODED vIEWS & PARTLISTS Overview of heating elements Used short forms Position BS10 SB = See below 3702021 1750W 230V 3L = 3 tray oven 3500042 2100W 230V 5L = 5 tray oven 3500043 1000W 230V 8L = 8 tray oven 3500073 2000W 230V 10L = 10 tray oven...
-
Page 24: Electrical Diagrams
ELECTRICAL DIAGRAMS eleCTriCal DiaGraMS 1=grey 2=black 3=brown 4=blue BS3i - circuit diagram Page 24 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 25: Bs3I - Wiring Diagram
ELECTRICAL DIAGRAMS 1=grey 2=black 3=brown 4=blue BS3i - wiring diagram Page 25 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 26: Bs5I - Circuit Diagram
ELECTRICAL DIAGRAMS 1=grey 2=black 3=brown 4=blue BS5i - circuit diagram Page 26 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 27: Bs5I - Wiring Diagram
ELECTRICAL DIAGRAMS 1=grey 2=black 3=brown 4=blue BS5i - wiring diagram Page 27 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 28: Bs8I - Circuit Diagram
ELECTRICAL DIAGRAMS 1=grey 2=black 3=brown 4=blue BS8i - circuit diagram Page 28 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 29: Bs8I - Wiring Diagram
ELECTRICAL DIAGRAMS 1=grey 2=black 3=brown 4=blue BS8i - wiring diagram Page 29 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 30: Bs10I - Circuit Diagram
ELECTRICAL DIAGRAMS 1=grey 2=black 3=brown 4=blue BS10i - circuit diagram Page 30 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 31: Bs10I - Wiring Diagram
ELECTRICAL DIAGRAMS 1=grey 2=black 3=brown 4=blue BS10i - wiring diagram Page 31 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 32: Bs5I 9750W - Circuit Diagram
ELECTRICAL DIAGRAMS 1=grey 2=black 3=brown 4=blue BS5i 9750W - circuit diagram Page 32 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 33: Bs5I 9750W - Wiring Diagram
ELECTRICAL DIAGRAMS BSi - CPU board 1=grey 2=black 3=brown 4=blue BS5i 9750W - wiring diagram Page 33 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 34: Bs8I 14600W - Circuit Diagram
ELECTRICAL DIAGRAMS 1=grey 2=black 3=brown 4=blue BS8i 14600W - circuit diagram Page 34 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 35: Bs8I 14600W - Wiring Diagram
ELECTRICAL DIAGRAMS 1=grey 2=black 3=brown 4=blue BS8i 14600W - wiring diagram Page 35 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 36: Bs10I 18800W - Circuit Diagram
ELECTRICAL DIAGRAMS 1=grey 2=black 3=brown 4=blue BS10i 18800W - circuit diagram Page 36 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 37: Bs10I 18800W - Wiring Diagram
ELECTRICAL DIAGRAMS 1=grey 2=black 3=brown 4=blue BS10i 18800W - wiring diagram Page 37 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 38: Bs3I 200V - Circuit Diagram
ELECTRICAL DIAGRAMS BS3i 200V - circuit diagram Page 38 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 39: Bs3I 200V - Wiring Diagram
ELECTRICAL DIAGRAMS BS3i 200V - wiring diagram Page 39 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 40: Bs5I 200V - Circuit Diagram
ELECTRICAL DIAGRAMS BS5i 200V - circuit diagram Page 40 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 41: Bs5I 200V - Wiring Diagram
ELECTRICAL DIAGRAMS BS5i 200V - wiring diagram Page 41 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 42: Bs8I 200V - Circuit Diagram
ELECTRICAL DIAGRAMS BS8i 200V - circuit diagram Page 42 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 43: Bs8I 200V - Wiring Diagram
ELECTRICAL DIAGRAMS BS8i 200V - wiring diagram Page 43 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 44: Bs10I 200V - Circuit Diagram
ELECTRICAL DIAGRAMS BS10i 200V - circuit diagram Page 44 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 45: Bs10I 200V - Wiring Diagram
ELECTRICAL DIAGRAMS BS10i 200V - wiring diagram Page 45 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... -
Page 46: Fan Hood Stacking Kit
ELECTRICAL DIAGRAMS Fan hood stacking kit Page 46 Service Manual Bake Star 3-5-8-10 intelligent form 9123665 rev. 08/2007... - Page 48 Fri-Jado B.V. • P.O. Box 560 • 4870 AN • Etten-Leur • The Netherlands • tel +31 76 50 85 400 • fax +31 76 50 85 444 • info@frijado.com • www.frijado.com...
