INSTALLATION MANUAL
TDR - ROTISSERIE OVEN MODELS
MODELS
TDR5 M
TDR8 M
This manual is prepared for the use of trained Service Technicians and
should not be used by those not properly qualified. If you have atten-
ded a trianing for this product, you may be qualified to perform all the
This manual is not intended to be all encompassing. If you have not at-
tended a training for this product, you should read, in its entirety, the
repair procedure you wish to performto determine if you have the ne-
cessary tools, instruments and skills required to perform the procedure.
Procedures for which you do not have the necessary tools, instruments
Reproduction or other use of this Manual, without the express written
WWW.FRIJADO.COM

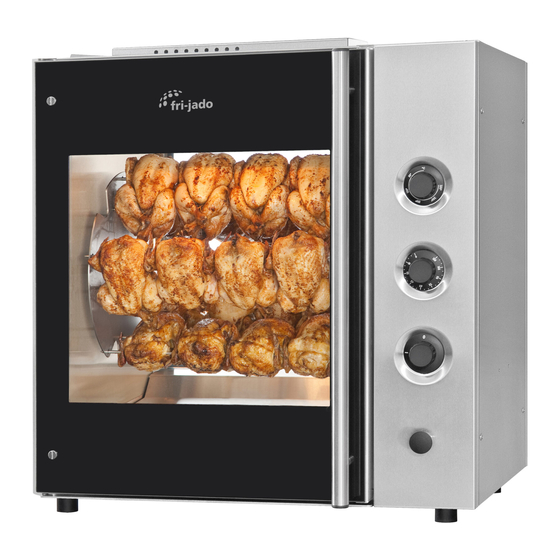

Model TDR5 M
- NOTICE -
procedures in this manual.
and skills should be performed by a trained technician.
consent of Fri-Jado, is prohibited.
Model TDR8 M
Installation Manual TDR5/8 form 9123825 rev. 07/2010
