Configuring the Switch with the CLI Setup Program
• No parity
• None (flow control)
Step 4
Connect power to the switch as described in
Step 5 The PC or terminal displays the bootloader sequence. Press Enter to display the setup prompt. Follow the steps in
Completing the Setup Program, on page

USB Console Port

Step 1 If you are connecting the switch USB console port to a Windows-based PC for the first time, install a USB driver. See
Installing the Cisco Microsoft Windows XP, 2000, Vista, 7, 8, and 10 USB Device Driver for more information.

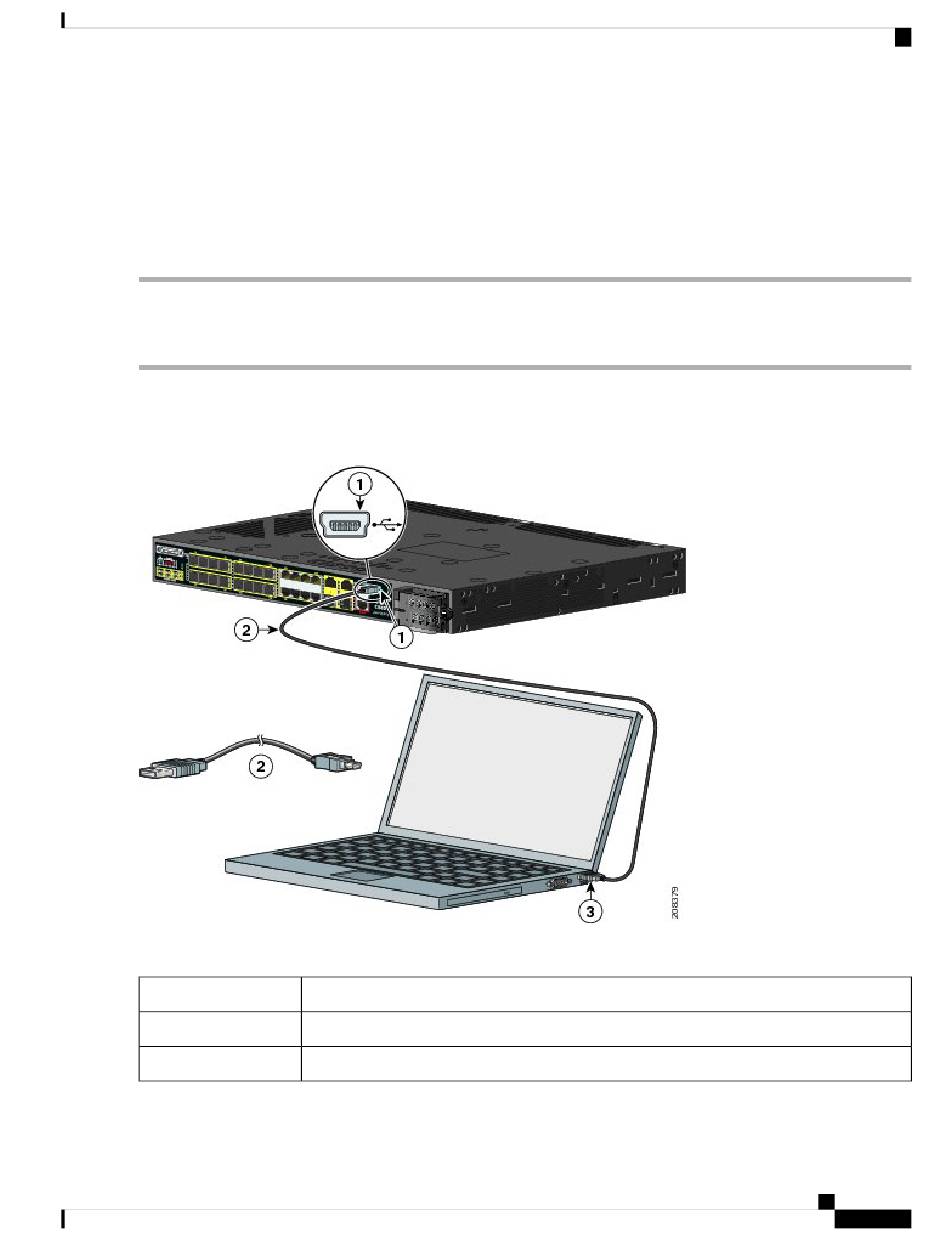

Figure 41: Connecting the USB Console Cable
Table 14:
1
2
3
Wiring the Power Source, on page
74.
USB console port
USB cable
USB port on the PC
44.
