EN

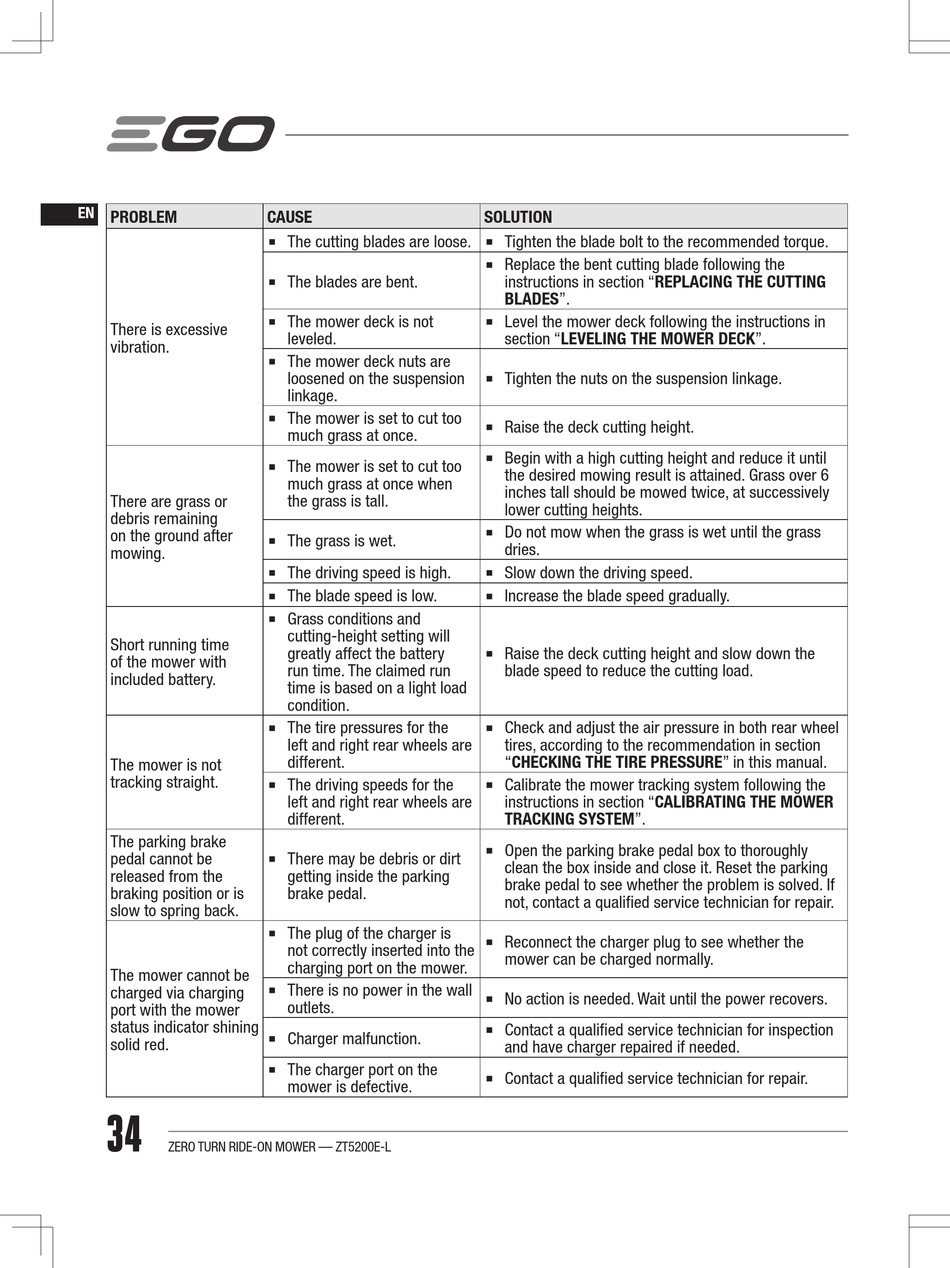

PROBLEM
There is excessive
vibration.
There are grass or
debris remaining
on the ground after
mowing.
Short running time
of the mower with
included battery.
The mower is not
tracking straight.
The parking brake
pedal cannot be
released from the
braking position or is
slow to spring back.
The mower cannot be
charged via charging
port with the mower
status indicator shining
solid red.
34
ZERO TURN RIDE-ON MOWER — ZT5200E-L
CAUSE
◾
The cutting blades are loose.
◾
The blades are bent.
◾
The mower deck is not
leveled.
◾
The mower deck nuts are
loosened on the suspension
linkage.
◾
The mower is set to cut too
much grass at once.
◾
The mower is set to cut too
much grass at once when
the grass is tall.
◾
The grass is wet.
◾
The driving speed is high.
◾
The blade speed is low.
◾
Grass conditions and
cutting-height setting will
greatly affect the battery
run time. The claimed run
time is based on a light load
condition.
◾
The tire pressures for the
left and right rear wheels are
different.
◾
The driving speeds for the
left and right rear wheels are
different.
◾
There may be debris or dirt
getting inside the parking
brake pedal.
◾
The plug of the charger is
not correctly inserted into the
charging port on the mower.
◾
There is no power in the wall
outlets.
◾
Charger malfunction.
◾
The charger port on the
mower is defective.
SOLUTION
◾
Tighten the blade bolt to the recommended torque.
◾
Replace the bent cutting blade following the
instructions in section "REPLACING THE CUTTING
BLADES".
◾
Level the mower deck following the instructions in
section "LEVELING THE MOWER DECK".
◾
Tighten the nuts on the suspension linkage.
◾
Raise the deck cutting height.
◾
Begin with a high cutting height and reduce it until
the desired mowing result is attained. Grass over 6
inches tall should be mowed twice, at successively
lower cutting heights.
◾
Do not mow when the grass is wet until the grass
dries.
◾
Slow down the driving speed.
◾
Increase the blade speed gradually.
◾
Raise the deck cutting height and slow down the
blade speed to reduce the cutting load.
◾
Check and adjust the air pressure in both rear wheel
tires, according to the recommendation in section
"CHECKING THE TIRE PRESSURE" in this manual.
◾
Calibrate the mower tracking system following the
instructions in section "CALIBRATING THE MOWER
TRACKING SYSTEM".
◾
Open the parking brake pedal box to thoroughly
clean the box inside and close it. Reset the parking
brake pedal to see whether the problem is solved. If
not, contact a qualified service technician for repair.
◾
Reconnect the charger plug to see whether the
mower can be charged normally.
◾
No action is needed. Wait until the power recovers.
◾
Contact a qualified service technician for inspection
and have charger repaired if needed.
◾
Contact a qualified service technician for repair.
