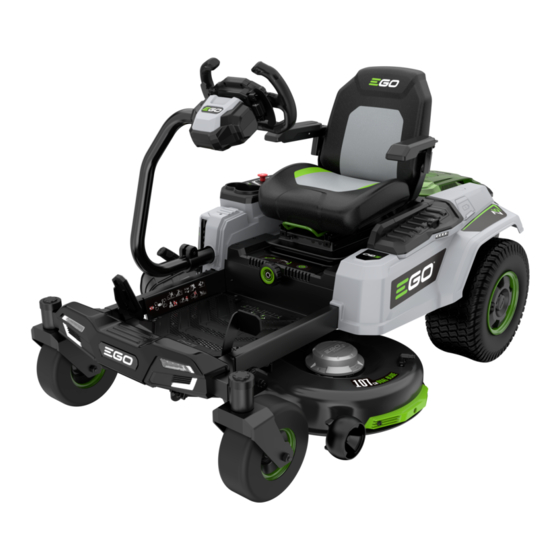

EGO POWER Z6ZTR Operator's Manual

56 volt lithium-ion zero turn riding mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Z6 ZTR
RIDING MOWER
OPERATOR'S MANUAL
56 VOLT LITHIUM-ION
ZERO TURN RIDING MOWER
MODEL NUMBER ZT4200E-S
WARNING: To reduce the risk of injury, the user must read and understand the
Operator's Manual before using this product. Save these instructions for future reference.
MNL_EGO_ZT4200E-S_AV01.01_230104

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWER Z6ZTR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EGO POWER Z6ZTR

Summary of Contents for EGO POWER Z6ZTR

  • Page 1 Z6 ZTR RIDING MOWER OPERATOR’S MANUAL 56 VOLT LITHIUM-ION ZERO TURN RIDING MOWER MODEL NUMBER ZT4200E-S WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference. MNL_EGO_ZT4200E-S_AV01.01_230104...
  • Page 2 Steering Wheel Seat Position Adjustment Lever Deck-Height Adjustment Lever Charging Port Right Side Box Seat Seat-Suspension Power Unit Adjustment Knob Foot-Rest Area LED Rear Light Side-Discharge Chute Storage Accelerator Pedal Compartment LED Headlights LED Sidelight Wash Port Rear Wheel (Drive Wheel) Deck Daytime Running Lights Parking-...
  • Page 3 Power-unit Cover Release Button Power-unit Cover Power unit with six battery compartments Battery-Release USB Port Button Hitch Attachment Mounting Cover LED Lights CCS Icon Icon Safety Key Auto-Parking Icon Reverse Icon Icon USB Icon Driving Speed Indicator Blade Speed Indicator Load Indicator Fuel Gauge...
  • Page 4 Electric Zero Turn Mower Seat Mulching Plug Socket-Head Screws Allen Key Socket Wrench (2 for backup) Operator’s Open-End Wrench Safety Keys Wash-Port Quick Manual Coupler 13mm...
  • Page 5 Seat Socket Socket-Head Screws Allen Plug Cable Seat Position Adjustment Lever Suspension Base Allen Steel Rails Hook Socket-Head Screws Steering Wheel Protector Locating Slot Block Locking Bolt Side Discharge Chute Movable Mulching Spring Plug...
  • Page 6 Anti-Scalp Wheels Lug Bolt Deck Height Seat Suspension Label Adjustment Knob Seat Position Adjustment Lever...
  • Page 7 Slot Locating Block Locking Bolt Braking Position Released Position Cover Release Button...
  • Page 8 Battery Release Button BA1400, BA2800, CH5500E, CH2100E BA4200, BA1400T, CH7000E BA2800T, BA4200T, BA5600T, BA6720T >3s CHV1600E Dust Cap CH5500E+ACA1000 Charging Port CH7000E+ACA1000...
  • Page 9 >3s STOP MODE...
  • Page 10 STOP >3s MODE MODE...
  • Page 11 MODE >5s >5s >3s...
  • Page 12 MODE...
  • Page 13 Wash-Port Quick Wash Port Garden Hose Coupler >3s...
  • Page 14 Motor Cable Suspension Linkage 1.8-2.2Nm Cotter Pin Stabilizer Bolt Washer Blade Flange Motor Shaft...
  • Page 15 115.8 kPa 222.1 kPa...
  • Page 16 Jam Nut H1-H2<5mm H2-H1<5mm...
  • Page 17 H4-H3=2~10mm...
  • Page 18 >3s >5s Max.12°...

  • Page 20: Safety Symbols

    Original instructions READ ALL INSTRUCTIONS! READ OPERATOR’S MANUAL WARNING: To ensure safety and reliability, all repairs and replacements should be performed by a qualified service technician. SAFETY SYMBOLS The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding.
  • Page 21 Always look down and behind you before and when Look behind while backing maneuvering in reverse or turning around. Make sure children, bystanders, and pets are clear of the area. WARNING – Slopes Do not use this machine on slopes greater than 12°. max12°...

  • Page 22: General Power Tool Safety Warnings

    Meters Length or size Centimeters Length or size Millimeters Length or size Newton meter Torque ℃ Celsius Temperature Kilogram Weight km/h Kilometers per hour Velocity SAFETY SYMBOLS The information needs to be noted The indicated action stops STOP GENERAL POWER TOOL SAFETY WARNINGS WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

  • Page 23: Personal Safety

    PERSONAL SAFETY ◾ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

  • Page 24: General Information

    ◾ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. ◾ When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.

  • Page 25: Children Specific

    ◾ Avoid mowing wet grass. Poor footing could cause a slip and fall accident. ◾ If situations occur that are not covered in this manual, use care and good judgment. Contact EGO Customer Service for assistance. ◾ Do not use the product when there is a risk of lightning.
  • Page 26 WARNING: Use extreme caution when loading the machine into a truck or trailer using ramps. There is the possibility of serious injury or death if the machine falls off the ramps. WARNING: The park brake is not sufficient to lock the machine in place during transport. Ensure that the machine is well fastened to the transport vehicle.
  • Page 27 Residual risks ◾ Even when the power tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the power tool’s construction and design: 1. Damage to lungs if an effective dust mask is not worn. 2.

  • Page 28: Specifications

    SPECIFICATIONS Voltage 56 V Deck Size 107 cm Front 279.4 x 101.6 – 127 mm Wheel Size Rear 457.2 x 241.3 – 203.2 mm Front 222.1 kPa Cold Tire Pressure Rear 115.8 kPa Turning Radius Blade Speed (RPM) 2400; 2600; 2800; 3000 Forward 4.8 km/h, 8.1 km/h, 9.7 km/h, 11.3 km/h (12.8 km/h in Travel mode) Maximum Driving...

  • Page 29: Recommended Accessories

    NOTICE: Save the packing materials until you have carefully inspected and satisfactorily operated the product. If any parts in packing list assembled on the machine please instantly contact EGO service. NOTICE:: Except the tools in below packing list, all other tools mentioned in the manuals are just recommended but not provided.

  • Page 30: Operation

    ATTACHING / DETACHING THE BATTERY PACK (Fig. E3 – E6) In order to start this mower, EGO batteries totaling 15 Ah (2 X BA4200/BA4200T) or more are required. For best performance, we recommended use of EGO batteries that total 30 Ah or more.
  • Page 31 WARNING: Before starting the mower, check and make sure the blades are disengaged within 5s when pushing the PTO switch downward. If the blades fail to stop, do not use the mower and contact your EGO customer service immediately.
  • Page 32 STOPPING THE MOWER (Fig. E20) NOTICE: After more than 60 minutes without operating, the mower will automatically shut off. Limp-Home Mode When battery charge becomes critically low, the mower will go into Limp-Home mode to preserve enough power to travel back to the charging area. ◾...
  • Page 33 USING CRUISE CONTROL (CCS) To activate CCS during driving (Fig. E22) NOTE: The driving speed level shown on the LCD screen may not accurately represent the actual driving speed of the mower in cruise control. Press one of the speed adjustment buttons (“ ” or “ ”) to “refresh” and adjust the driving speed level on the LCD screen.

  • Page 34: General Maintenance

    MAINTENANCE WARNING: Always wear eye protection with side shields. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury. WARNING: Always protect your hands by wearing heavy gloves or wrapping the cutting edges with rags or other materials when performing any maintenance on the mower blade.

  • Page 35: Storage And Transport

    MAINTAINING THE MOWER DECK AND THE CUTTING BLADES Preparation (Fig. G1) Removing the mower deck (Fig. G2 – G3) NOTICE: Disconnect all motor cables and cotter pins when removing the mower deck. Replacing the cutting blades (Fig. G4 – G6) Leveling the mower deck a.
  • Page 36 Protecting the environment Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

  • Page 37: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE SOLUTION ◾ In order to start this mower, use enough EGO ◾ The combined Ah of the batteries following the instructions in section inserted batteries does not “ATTACHING/DETACHING THE BATTERY PACK” in meet the requirement. this manual.
  • Page 38 PROBLEM CAUSE SOLUTION ◾ Pull the left/right paddles toward the operator and ◾ Left / Right paddle requires a release them. The mower is ready for driving when “reset”. the status indicator shines green. ◾ Failure of electronic ◾ components of the Contact a qualified service technician for repair.
  • Page 39 PROBLEM CAUSE SOLUTION ◾ In order to start this mower, use enough EGO ◾ The combined Ah of the batteries following the instructions in section inserted batteries does not “ATTACHING/DETACHING THE BATTERY PACK” in meet the requirement. this manual. ◾...
  • Page 40 PROBLEM CAUSE SOLUTION ◾ Raise the deck cutting height or slow down the ◾ The mower is overloaded. driving speed to reduce the load of the mower. ◾ ◾ The mower deck is clogged Clean the mower deck and make certain that the with grass and debris.
  • Page 41 PROBLEM CAUSE SOLUTION ◾ When the mower is turned off on ground without ◾ removing the battery pack(s) No action is needed. The battery indicators will go off from the mower, the battery when the mower shuts off after a period. Refer to the indicators, start/stop button section “STOPPING THE MOWER”...
  • Page 42 ◾ No action is needed. Wait until the power recovers. outlets. port with the mower ◾ status indicator shining Call EGO Customer Service Center for inspection and ◾ Charger malfunction. solid red. have charger repaired if needed. ◾ The charger port on the ◾...
  • Page 43 PROBLEM CAUSE SOLUTION ◾ The charging time via Using EGO Adapter ACA1000 ◾ Use EGO charger CHV1600E for charging the zero the mower charging for charging requires long turn riding mower directly. port is too long. time. ◾ Reset the charger by unplugging the charger and ◾...
  • Page 44 PROBLEM CAUSE SOLUTION ◾ The CCS function Press the CCS button until the CCS icon is ◾ The CCS button is not cannot be activated or illuminated on the LCD screen, or disappears from pressed properly. turned off. the LCD screen. ◾...
  • Page 45 MOWER STATUS REFERENCE & FAULT CODE NOTICE: If a fault code appears on LCD screen, remove all battery packs and re-insert them a few minutes later. If this doesn’t solve the problem, follow the fault code troubleshooting below. Fault Mower Code Display Description Status...
  • Page 46 In order to start this mower, use enough Battery capacity EGO batteries following The icon of the empty is not sufficient to the instructions in battery compartment allow the mower section “ATTACHING/...
  • Page 47 Fault Mower Code Display Description Status Beeper Cause Solution Indicator Reduce the load of the mower by raising the deck cutting height The mower is or slowing down the overheated. blade/driving speed. Take a break and allow the mower to cool. The temperature icon Please do not make One beep...
  • Page 48 Fault Mower Code Display Description Status Beeper Cause Solution Indicator Stop working and return to the battery charging area. NOTE: When the mower is in Limp-Home The icons of each mode, the blades are occupied battery Keeps automatically switched compartment, low power The battery packs beeping into low rotation speed...
  • Page 49 Fault Mower Code Display Description Status Beeper Cause Solution Indicator If with the operator is seated on the seat and the icon is on, stop operating the The operator mower immediately leaves the seat Seat sensor icon shows on and check the seat or the seat safety the LCD.
  • Page 50 Fault Mower Code Display Description Status Beeper Cause Solution Indicator PCBA controlled left driving One beep PCBA failure motor fails. Plug (Triple- phase, power wire) connecting the left driving One beep Loose connection motor with the corresponding Left PCBA is driving Have repairs performed loosened.
  • Page 51 Fault Mower Code Display Description Status Beeper Cause Solution Indicator PCBA controlled Have repairs performed left blade motor One beep PCBA failure by a qualified service fails technician. Plug (Triple- phase, power Left Inspect the blade wire) connecting blade firstly. If it is loosened, the left blade “Fault motor...
  • Page 52 Fault Mower Code Display Description Status Beeper Cause Solution Indicator Have repairs performed The charging port Solid RED n/a by a qualified service is in open circuit. technician. Check the wall outlet There is no power whether there is 220 – Charging Prot Fault.

  • Page 53: Warranty

    WARRANTY EGO WARRANTY POLICY 5 years warranty on EGO outdoor power equipment and 3 years warranty on EGO Power+ System battery packs and chargers. Please contact EGO customer service on Australia 1300 000 EGO(1300 000 346), New Zealand 0508 000 EGO (0508 000 346) any time you have questions or warranty claims.
  • Page 54 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The warranty applies to purchases made from authorised EGO Dealers, which can be confirmed on the website store locator.
