EGO STA1500 - String Trimmer Manual

SAFETY SYMBOLS

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.

Be sure to read and understand all safety instructions in this Operator's Manual, including all safety alert symbols such as "DANGER," "WARNING," and "CAUTION" before using this tool. Failure to following all instructions listed below may result in electric shock, fire, and/or serious personal injury.

SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, OR CAUTION.
May be used in conjunction with other symbols or pictographs.

The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shield and a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection which is marked to comply with ANSI Z87.1.

SAFETY INSTRUCTIONS

This table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate it.

	Safety Alert	Indicates a potential personal injury hazard.
	Eye Protection	Always wear safety goggles or safety glasses with side shields and a full face shield when operating this product.
IPX4	Ingress Protection Degree	Protection from splashing water
V	Volt	Voltage
mm	Millimeter	Length or size
cm	Centimeter	Length or size
in.	Inch	Length or size
kg	Kilogram	Weight
lb	Pound	Weight
	Direct Current	Type or a characteristic of current

IMPORTANT SAFETY INSTRUCTIONS

Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

When using electric trimmers, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:

READ ALL INSTRUCTIONS

Do not rely on the tool's insulation against electric shock. To reduce the risk of electrocution, never operate the tool in the vicinity of any wires or cables which may carry electric current.

Wear appropriate personal hearing protection during use. Under some conditions and durations of use, noise from this product may contribute to hearing loss.

• Keep Children Away - All visitors should be kept at least 100 feet away from work area.
• Avoid Dangerous Environments – Don't use appliances on damp or wet slope.
• Dress Properly - Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.
• Use Safety Glasses - Always use face or dust mask if operation is dusty.
• Use the Right Tool - Do not use the tool for any job except that for which it is intended.
• Don't Force the Trimmer - It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.
• Don't Overreach - Keep proper footing and balance at all times.
• Stay Alert - Watch what you are doing. Use common sense. Do not operate the trimmer when you are tired.
• Do not operate the trimmer while under the influence of alcohol or drugs.
• Keep guards in place and in working order.

To reduce the risk of injury to persons, do not operate without guards in place.

• Keep hands and feet away from the cutting area.
• Store Trimmer Indoors - When not in use the trimmer should be stored indoors in a dry and high or locked-up place with the battery pack removed- out of reach of children.
• Maintain Trimmer With Care - Keep the cutting attachment clean for best performance and to reduce the risk of injury. Follow the instructions for changing accessories. Keep the handles dry, clean, and free from oil and grease.
• Check Damaged Parts - Before further use of the trimmer, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.
• Clear the area to be cut before each use. Remove all objects such as rocks, broken glass, nails, wire, or string that can be thrown or become entangled in the cutting attachment. Make sure that other persons and pets are at least 100 ft. (30.5m) away.
• Always hold the trimmer firmly, with both hands on the handles, while operating. Wrap your fingers and thumbs around the handles.
• Avoid Accidentally Starting - Don't carry the trimmer with your finger on the trigger.
• Do not operate the trimmer in gaseous or explosive atmospheres. Motors in these appliances normally spark, and the sparks might ignite fumes.
• Damage to Trimmer - If you strike a foreign object with the trimmer or it becomes entangled, stop the tool immediately, check for damage and have any damage repaired before further operation is attempted. Do not operate with a broken guard or spool.
• If the equipment should start to vibrate abnormally, stop the motor and check immediately for the cause. Vibration is generally a warning of trouble. A loose head may vibrate, crack, break or come off the trimmer, which may result in serious or fatal injury. Make sure that the cutting attachment is properly fixed in position. If the head loosens after fixing it in position, replace it immediately. Never use a trimmer with a loose cutting attachment.
• Replace a cracked, damaged or worn-out cutting head immediately, even if damage is limited to superficial cracks. Such attachments may shatter at high speed and cause serious or fatal injury.
• Check the cutting attachment at regular short intervals during operation, or immediately if there is a noticeable change in cutting behavior.
• When replacing the cutting line, use no more than 2.4mm nylon line; using heavier lines than recommended by the manufacturer increases the load on the motor and reduces its operating speed. This results in overheating and damage to the trimmer.
• To reduce the risk of serious injury, never use wire or metal-reinforced line or other material in place of the nylon cutting lines. Pieces of wire could break off and be thrown at high speed toward the operator or bystanders.
• To reduce the risk of injury from loss of control, never work on a ladder or on any other insecure support. Never hold the cutting attachment above waist height.
• Do not charge the battery pack in rain, or in wet locations.
• Use only with the battery packs and chargers listed below:

BATTERY PACK	CHARGER
BA1120, BA1400, BA2240, BA2800, BA4200	CH2100 CH5500

• Use Only With The 56V Lithium-Ion Power Head PH1400.
• Do not dispose of the battery in a fire. The cells may explode. Check with local codes for possible special disposal instructions.
• Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
•
  Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.
• Replacement Parts - When servicing, use only identical EGO replacement parts. Use of any other accessory or attachment may increase the risk of injury.
• Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards even when the tool is not operating. Take care when performing maintenance or service.
• Remove or disconnect battery pack before servicing, cleaning or removing material from the trimmer.
• Do not wash with a hose; avoid getting water in motor and electrical connections.
• If situations occur that are not covered in this manual, use care and good judgment. Contact the EGO Customer Service Center for assistance.

Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you lend this tool to someone else, also lend these instructions to them to prevent misuse of the product and possible injury.

SAVE THESE INSTRUCTIONS!

NOTE: SEE YOUR POWER HEAD OPERATOR'S MANUAL FOR ADDITIONAL SPECIFIC SAFETY RULES.

SPECIFICATIONS

Cutting Mechanism	Bump Head
Cutting Line Type	0.095" (2.4 mm) nylon twist line
Cutting Width	15 in. (38 cm)
Weight	3.51 lb. (1.59 kg)

Recommended Cutting Line

PART NAME	TYPE	MODEL NUMBER
Cutting Line	0.095"/2.4mm twist line (Recommended)	AL2415S AL2450S
	0.080"/2.0mm twist line (Compatible)	AL2015S AL2050S

PACKING LIST

PART NAME	QUANTITY
String Trimmer Attachment	1
Guard	1
Hex Wrench	1
Multi-Function Wrench	1
Operator's Manual	1

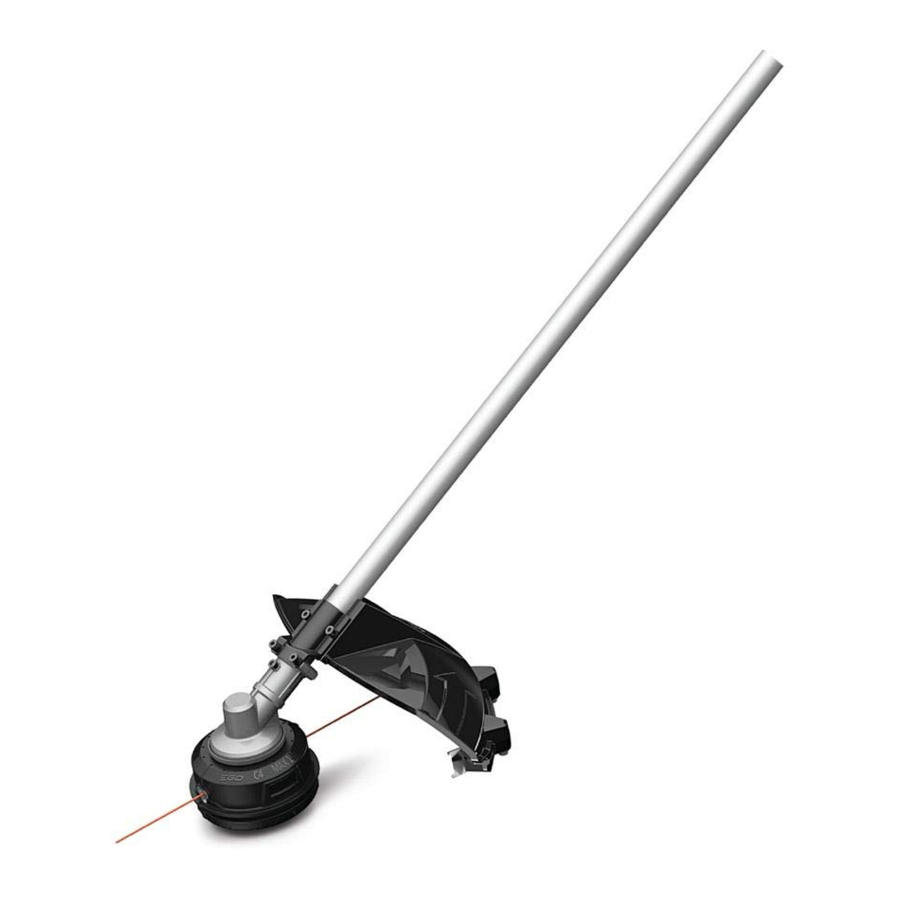

KNOW YOUR PRODUCT

(Fig. 1)
The safe use of this product requires an understanding of the information on the tool and in this operator's manual, as well as knowledge of the project you are attempting. Before using this product, familiarize yourself with all operating features and safety rules.

Never operate the tool without the guard firmly in place. The guard must always be on the tool to protect the user.

TRIMMER HEAD (BUMP HEAD)
Stores the cutting line and releases the cutting line when the head is lightly tapped on the ground during operation.

GUARD
Reduces the risk of injury from foreign objects flung backwards toward the operator and from contact with the cutting attachment.

LINE-CUTTING BLADE
Steel blade on the guard that maintains the cutting line at the proper length.

RELEASE TAB
Releases the spool retainer from the spool base.

ASSEMBLY

If any parts are damaged or missing, do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.

Do not attempt to modify this product or create accessories not recommended for use with this string trimmer. Any such alteration or modification is misuse and could result in a hazardous condition leading to possibly serious personal injury.

Do not connect to power head until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.

UNPACKING

• This product requires assembly.
• Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.

Do not use this product if any parts on the Packing List are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury.

• Inspect the tool carefully to make sure that no breakage or damage occurred during shipping
• Do not discard the packing material until you have carefully inspected and satisfactorily operated the tool.
• If any parts are damaged or missing, please return the product to the place of purchase.

MOUNTING THE GUARD

NOTICE: Install the guard before the attachment is connected to the power head.

To reduce the risk of injury to persons, do not operate without guards in place.

Always wear gloves when mounting or replacing the guard. Be careful of the blade on the guard and protect your hands from being injured by the blade.

1. Lift the trimmer head and face it downward; align the two mounting holes in the guard with the two bolts that are preassembled on the base of the shaft. Make sure that the internal surface of the guard faces towards the trimmer head (Fig. 2).

2. Use the supplied hex wrench to lock the guard in place with the bolts (Fig. 3).


CONNECTING THE UNIT TO THE POWER HEAD

Never attach or adjust any attachment while the power head is running or with the battery installed. Failure to stop the motor and remove the battery may cause serious personal injury.

This string trimmer attachment is designed for use with EGO Power Head PH1400.

The string trimmer attachment connects to the power head by means of a coupler device.

1. Stop the motor and remove the battery pack.
2. Loosen the wing knob.
3. Remove the end cap from the string trimmer attachment. Align the arrow on the string-trimmer shaft with the arrow on the coupler and push the string-trimmer shaft into the coupler until you hear a clear "click" sound, which indicates that the string-trimmer shaft is mounted into place (Fig. 4).

4. Pull the shaft of the attachment to verify that it is securely locked into the coupler. If not, rotate the string-trimmer shaft from side to side in the coupler until it snaps into place.
5. Tighten the wing knob securely.

Be certain that the wing knob is fully tightened before operating the equipment; check it periodically for tightness during use to avoid serious personal injury.

REMOVING THE UNIT FROM THE POWER HEAD

1. Stop the motor and remove the battery pack.
2. Loosen the wing knob.
3. Press the shaft-release button and, with the button depressed, pull or twist the attachment shaft out of the coupler.

OPERATION

Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

Always wear safety goggles or safety glasses with side shield marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

APPLICATIONS

You may use this product for the purpose listed below:

• Trimming grass and weeds from around porches, fences, and decks.

HOLDING THE DEVICE WITH POWER HEAD

Dress properly to reduce the risk of injury when operating this tool.
Do not wear loose clothing or jewelry.
Wear eye and ear/hearing protection.
Wear heavy, long pants, boots and gloves.
Do not wear short pants or sandals or go barefoot.

(Fig. 5)
Hold the string trimmer with one hand on the rear handle and your other hand on the front-assist handle. Keep a firm grip with both hands while operating the tool. The string trimmer should be held at a comfortable position, with the rear handle at about hip height. The trimmer head should be parallel to the ground such that it easily contacts the material to be cut without the operator having to bend over.

USING THE DEVICE

To avoid serious personal injury, wear goggles or safety glasses at all times when operating this unit. Wear a face mask or dust mask in dusty locations.

Clear the area to be cut before each use. Remove all objects, such as rocks, broken glass, nails, wire, or string that can be thrown or become entangled in the cutting attachment. Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders and pets at least 100 feet (30.5m) away; there still may be risk to bystanders from thrown objects. Bystanders should be encouraged to wear eye protection. If you are approached, stop the motor and cutting attachment immediately.

To prevent serious personal injury, remove the battery pack from the tool before servicing, cleaning, changing attachments or removing material from the unit.

Before each use check for damaged/worn parts
Check the trimmer head, guard and front-assist handle and replace any parts that are cracked, warped, bent, or damaged in any away.
The line-cutting blade on the edge of the guard can dull over time. It is recommended that you periodically sharpen it with a file or replace it with a new blade.

Always wear gloves when mounting or replacing the guard or when sharpening or replacing the blade. Note the location of the blade on the guard and protect your hand from injury.

Clean the trimmer after each use
See the Maintenance section for cleaning instructions.

Never use water for cleaning your trimmer. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents. Use clean clothes to remove dirt, dust, oil, grease, etc.

TO START/STOP THE TOOL

See "STARTING/STOPPING THE POWER HEAD" section in the power head PH1400 operator's manual.

Tips for best trimming results (Fig. 6)

• The correct angle for the cutting attachment is parallel to the ground.
• Do not force the trimmer. Allow the very tip of the line to do the cutting (especially along walls). Cutting with more than the tip will reduce cutting efficiency and may overload the motor.
• The cutting height is determined by the distance of the cutting line from the lawn surface.
• Grass over 8 inches (200 mm) should be cut by working from top to the bottom in small increments to avoid premature line wear or motor drag.
• Slowly move the trimmer into and out of the area being cut, maintaining the cutting head position at the desired cutting height. This movement can be either a forward-backward motion or a side-to-side motion. Cutting shorter lengths produces best results.
• Trim only when grass and weeds are dry.
• Wire and picket fences can cause extra string wear or breakage. Stone and brick walls, curbs, and wood may wear strings rapidly.
• Avoid trees and shrubs. Tree bark, wood moldings, siding, and fence posts can easily be damaged by the strings.

ADJUSTING CUTTING LINE LENGTH

The trimmer head allows the operator to release more cutting line without stopping the motor. As line becomes frayed or worn, additional line can be released by lightly tapping the trimmer head on the ground while operating the trimmer (Fig. 7).

Do not remove or alter the line-cutting blade assembly. Excessive line length will cause the motor to overheat and may result in serious personal injury.

For best results, tap the trimmer head on bare ground or hard soil. If line release is attempted in tall grass, the motor may overheat. Always keep the trimming line fully extended. Line release becomes more difficult as the cutting line becomes shorter.

LOAD NEW CUTTING LINE

NOTICE: Always use the recommended nylon cutting line with diameter not greater than 0.095in. (2.4mm). Using line other than that specified may cause the string trimmer to overheat or become damaged.

Never use metal-reinforced line, wire, or rope, etc. These can break off and become dangerous projectiles.

To prevent serious personal injury, remove the battery pack from the power head before servicing, cleaning, changing attachments or removing material from the unit.

1. Remove the battery pack.
2. Remove the remaining cutting line, if necessary. Simply pull it out by hand.
3. Rotate the spool retainer in the direction indicated by the arrow, as necessary, to align the LOAD line on the spool retainer with the eyelets in the spool base (Fig. 8).

4. Cut one piece of cutting line 16ft. (5m) long. Insert the line into the mounting hole located inside the eyelet. Push the line until the end of the line comes out of the other side of the spool base. Pull the line from the other side until equal amounts of line appear on both sides of the spool (Fig. 9).

5. Press, while rotating the spool retainer in the direction indicated by the arrow, to wind the cutting line onto the spool until approximately 5.5in. (14cm) of line is showing on each side (Fig. 10).

6. Push the spool retainer down while pulling on the lines to manually advance the line and to check for proper assembly of the trimmer head.

When the cutting line breaks from the line outlet or the cutting line is not released when the trimmer head is tapped, follow the steps below:

1. Remove the battery pack.
2. Press the release tabs on the spool retainer and remove the spool retainer by pulling it straight out (Fig. 11 & 12).

3. Remove the cutting line from the spool retainer.
4. With one hand holding the spool base, use the other hand to grasp the spool retainer and align the tabs on the spool retainer with the holes in the spool base (Fig. 13); use your palm to press and rotate the spool retainer left and right until the tabs lock with the spool base (Fig. 14).

5. Following the instructions in "LOAD NEW CUTTING LINE" to reload the cutting line.

MAINTENANCE

When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. To ensure safety and reliability, all repairs should be performed by a qualified service technician.

Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. To prevent serious personal injury, take extra precautions and care when performing maintenance, service or for changing the cutting attachment or other attachments.

To prevent serious personal injury, remove the battery pack from the power head before servicing, cleaning, changing add-on attachments or when the product is not in use.

All string trimmer service, other than the items listed in these maintenance instructions, should be performed by competent string trimmer service personnel.

TRIMMER HEAD REPLACEMENT

If the head loosens after it is fixed in position, replace it immediately. Never use a trimmer with a loose cutting attachment. Replace a cracked, damaged or worn out cutting head immediately, even if damage is limited to superficial cracks.
Such attachments may shatter at high speed and cause serious injury.

See Fig. 15

Remove the trimmer head

1. Remove the battery.
2. Press the 2 release tabs on the spool retainer to remove it (see Fig. 11& 12).
3. Pull the spring out of the spool base (Fig. 16).

4. Rotate the spool base to align the slot in the flange with the hole in the gear case (Fig. 17).

5. Insert the hex wrench provided into the aligned holes to act as a stabilizer (Fig. 18). Use the multifunction wrench provided to loosen the nut in the direction of the arrow marked on the spool base inside housing and remove it (Fig. 19).

6. Remove the plain washer from the motor shaft and save it for reassembly (Fig. 20).

7. Hold the spool base and pull it straight out from the motor shaft (Fig. 21).

8. Remove the flange cover and flange in turn from the motor shaft (Fig. 22). Check and replace them if they are worn.


Install the new trimmer head

1. Position the flange removed in step 8 of the "Remove the trimmer head" section onto the motor shaft with the bulge facing away from the base (Fig. 23).

2. Position the flange cover onto the flange with its flat surface facing outwards (Fig. 24).

3. Align the mounting hole in the new spool base with the motor shaft and mount the new spool base onto the shaft.
4. Position the plain washer onto the motor shaft (see Fig. 20).
5. Mount the nut onto the shaft, and pre-tighten it COUNTERCLOCKWISE by hand.
6. Rotate the spool base to align the slot in the flange with the hole in the gear case (see Fig. 17).
7. Insert the hex wrench provided into the aligned holes to act as a stabilizer (see Fig. 18). Use the multi-function wrench provided to tighten the nut securely onto the shaft (Fig. 25).

8. Position the spring into the spool base and press it in place (see Fig. 16).
9. With one hand holding the spool base, use the other hand to grasp the new spool retainer and align the tabs on the new spool retainer with the holes in the spool base. Use your palm to press and rotate the new spool retainer left and right until the tabs lock with the spool base (see Fig. 13 & 14).
10. If any parts of the spool retainer assembly are damaged or worn, replace the damaged part and reassemble them as following showing (Fig. 26).


SHARPEN THE LINE-CUTTING BLADE

Always protect your hands by wearing heavy gloves when performing any maintenance on the line-cutting blade.

1. Remove the battery.
2. Remove the line-cutting blade from the guard.
3. Secure the blade in a vise.
4. Wear proper eye protection and gloves and be careful not to cut yourself.
5. Carefully file the cutting edges of the blade with a fine-tooth file or sharpening stone, maintaining the original cutting edge angle.
6. Replace the blade on the guard and secure it in place with the two screws.

TRANSMISSION GEARS LUBRICATION

The transmission gears in the gear case need be lubricated periodically with gear grease. Check the gear case grease level about every 50 hours of operation by removing the sealing screw on the side of the case.
If no grease can be seen on the sides of the gear, follow the steps below to fill with gear grease up to 3/4 capacity.
Do not completely fill the transmission gear case.

1. Hold the string trimmer on its side so that the sealing screw is facing upwards (Fig. 27).

2. Use the multi-function wrench provided to loosen and remove the sealing screw.
3. Use a grease syringe (not included) to inject some grease into the screw hole, taking care not to exceed 3/4 capacity.
4. Tighten the sealing screw after injection.

CLEAN THE UNIT

• Remove the battery
• Clear any grass that may have wrapped itself around the motor shaft or trimmer head.
• Use a small brush or a small vacuum cleaner to clean the air vents on the rear housing.
• Keep the air vents free of obstructions.
• Clean the unit using a damp cloth with a mild detergent.
•
  Do not use any strong detergents on the plastic housing or the handle. They can be damaged by certain aromatic oils, such as pine and lemon, and by solvents such as kerosene. Moisture can also cause a shock hazard. Wipe off any moisture with a soft dry cloth.

STORING THE UNIT

• Remove the battery pack from the trimmer.
• Clean the tool thoroughly before storing it.
• Store the unit in a dry, well-ventilated area, locked-up or up high, out of the reach of children. Do not store the unit on or adjacent to fertilizers, gasoline, or other chemicals.

TROUBLESHOOTING

PROBLEM	CAUSE	SOLUTION
The unit fails to start	The battery pack is not attached to the power head.	Attach the battery pack to the power head.
	No electrical contact between the power head and the battery pack.	Remove battery, check contacts and reinstall the battery pack until it snaps into place.
	The battery pack is depleted.	Charge the battery pack with EGO chargers listed in this manual.
	The lock-off lever and trigger are not depressed simultaneously.	Press the lock-off lever and hold it, then depress the trigger to turn on the string trimmer.
The unit stops while cutting	The guard is not mounted on the trimmer, resulting in an overly long cutting line and motor overload.	Remove the battery pack and mount the guard on the trimmer.
	Heavy cutting line is used.	Use recommended nylon cutting line with diameter no greater than 0.095 in. (2.4 mm).
	The motor shaft or trimmer head is bound with grass.	Stop the trimmer, remove the battery, and remove the grass from the motor shaft and trimmer head.
	The motor is overloaded.	Remove the trimmer head from the grass. The motor will recover as soon as the load is removed. When cutting, move the trimmer head in and out of the grass to be cut and remove no more than 8 inches of length in a single cut.
	The battery pack or string trimmer is too hot.	Allow the battery pack or trimmer to cool until the temperature drops below 152°F (67°C).
	The battery pack is disconnected from the tool.	Re-install the battery pack.
	The battery pack is depleted.	Charge the battery pack with EGO chargers listed in this manual.
The trimmer head will not advance line.	The motor shaft or trimmer head is bound with grass.	Stop the trimmer, remove the battery, and clean the motor shaft and trimmer head.
	There is not enough line on the spool.	Remove the battery and replace the cutting line; follow the section "LOAD NEW CUTTING LINE" in this manual.
	The trimmer head is dirty.	Remove the battery and clean the spool retainer assembly and spool base.
	The line is tangled in the spool retainer assembly.	Remove the battery, remove the line from the spool and rewind; follow the section "LOAD NEW CUTTING LINE" in this manual.
	The line is too short.	Remove the battery and pull the lines manually while alternately pressing down and releasing the trimmer head.
Grass wraps around trimmer head and motor housing	Cutting tall grass at ground level.	Cut tall grass from the top down, removing no more than 8 inches in each pass to prevent wrapping.
The blade is not cutting the line	The line-cutting blade on the edge of the guard has become dull.	Sharpen the line-cutting blade with a file or replace it with a new blade.
Cracks on the trimmer head or the spool retainer comes loose with spool base	The trimmer head is worn out.	Replace the trimmer head immediately; follow the section "TRIMMER HEAD REPLACEMENT" in this manual.
During line replacement, the line can't be loaded into the trimmer head properly	Spool retainer's LOAD lines do not align with the eyelets in the spool base.	Rotate the spool retainer in the arrow direction to align the LOAD lines on the spool retainer with the eyelets in the spool base.
	The string line is not correctly inserted into the mounting hole in the eyelet.	Align the LOAD lines with the eyelets first, then insert the string line into the mounting hole, which is located inside the eyelet.

WARRANTY

Please contact EGO Customer Service Toll-Free at 1-855-EGO-5656 any time you have questions or warranty claims.

HOW TO OBTAIN SERVICE
For warranty service, please contact EGO customer service toll-free at 1-855-EGO-5656.

For customer service contact us toll-free at: 1-855-EGO-5656 or EGOPOWERPLUS.COM
EGO Customer Service, 120 Ionia Street SW / Suite 102 Grand Rapids, MI 49503

Should you experience any problem you cannot easily remedy, please contact EGO customer service center 1-855-EGO-5656.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND DATE OF PURCHASE AND KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE

Documents / Resources

References

• The #1 Rated Brand in Cordless Outdoor Power Equipment | EGO

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download EGO STA1500 - String Trimmer Manual
