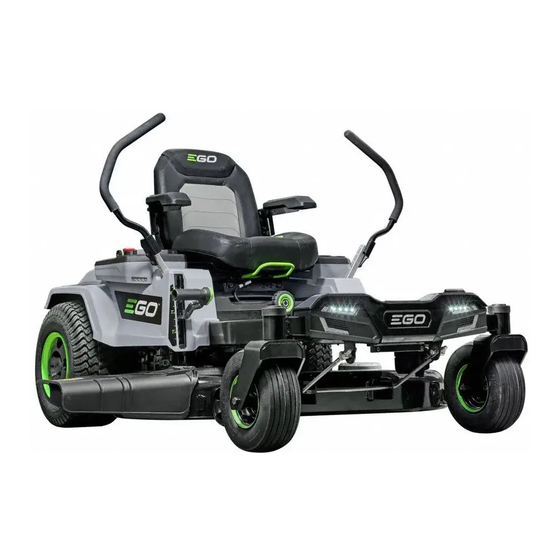

EGO ZT4200L Assembly Instructions Manual

Zero turn mower
Hide thumbs Also See for ZT4200L:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
A. UNPACKING
WARNING: To reduce the risk of injury or mower
damage, do not use a knife to cut the nylon straps. Use
scissors or side cutters.
WARNING : To reduce the risk of damage, remove
watches or other fragile and valuable items from your
wrists. There's a risk of accidental contact with steel
frame elements.
Recommended tools for unpacking (not included):
◾
Scissors or side cutters.
◾
Impact wrench with 1/2 in (13 mm) socket.
1
A
x4 (+2)
7
17
Required for assembly
B
C
x2
D
x4 (+2)
x1
11
8
18
5
16
13
If any parts are missing, please call 1-800-346-9876

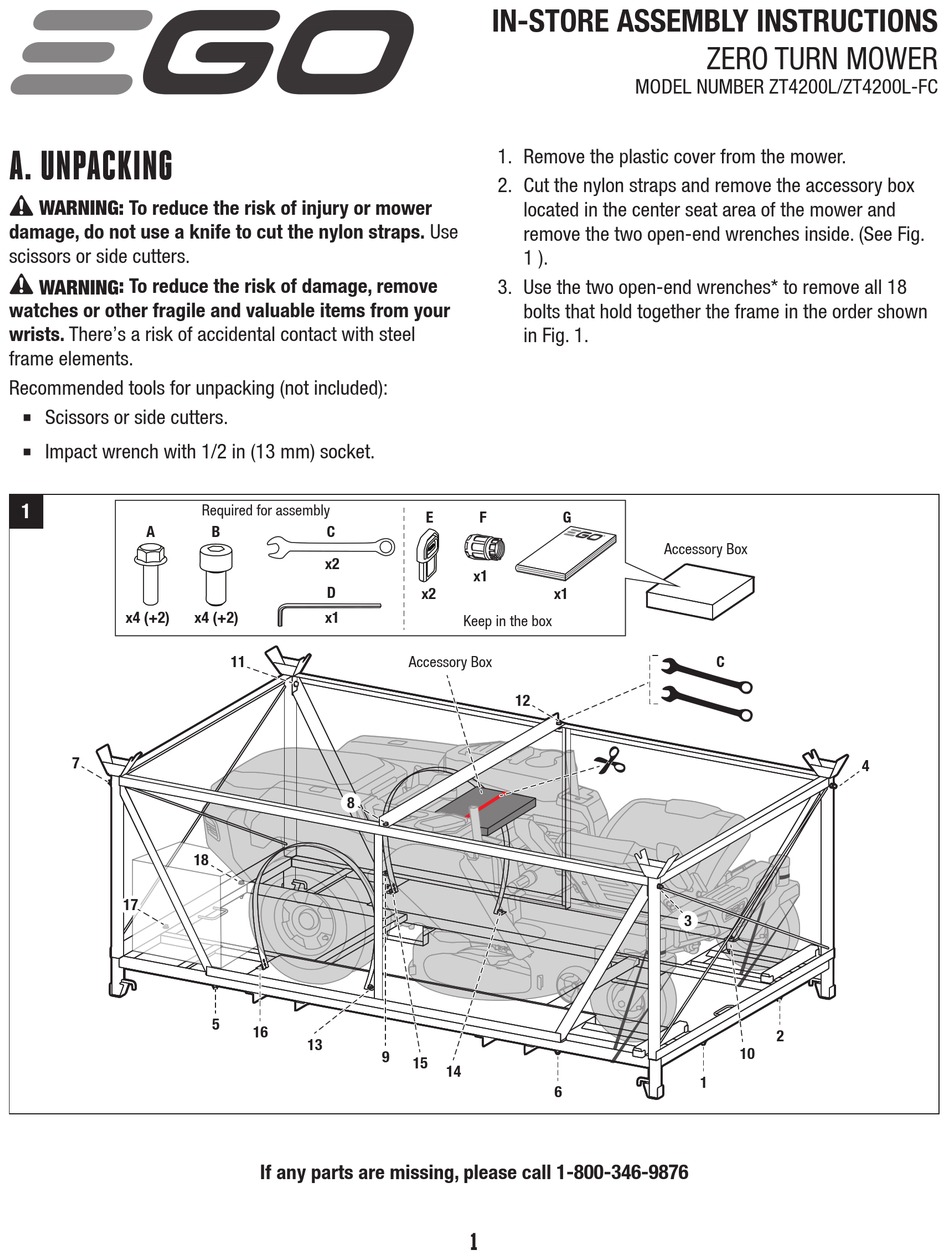

IN-STORE ASSEMBLY INSTRUCTIONS
1. Remove the plastic cover from the mower.
2. Cut the nylon straps and remove the accessory box
located in the center seat area of the mower and
remove the two open-end wrenches inside. (See Fig.
1 ).
3. Use the two open-end wrenches* to remove all 18
bolts that hold together the frame in the order shown
in Fig. 1.
E
F
x1
x2
x1
Keep in the box
Accessory Box
12
9
15
14
6
1
ZERO TURN MOWER
MODEL NUMBER ZT4200L/ZT4200L-FC
G
Accessory Box
C
3
10
1
4
2

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZT4200L and is the answer not in the manual?

Questions and answers

Related Manuals for EGO ZT4200L

Summary of Contents for EGO ZT4200L

  • Page 1 IN-STORE ASSEMBLY INSTRUCTIONS ZERO TURN MOWER MODEL NUMBER ZT4200L/ZT4200L-FC A. UNPACKING 1. Remove the plastic cover from the mower. 2. Cut the nylon straps and remove the accessory box WARNING: To reduce the risk of injury or mower located in the center seat area of the mower and damage, do not use a knife to cut the nylon straps.
  • Page 2 Do not exceed the maximum recommend operating ◾ If any parts are damaged or missing, please contact angle of 15°. EGO after sale service. Parking Brake Pedal (in released position) Mounting Poles for Steering Lever...

  • Page 3: Seat Installation

    B. SEAT INSTALLATION 3. Lift the adjustment lever slightly and pull the seat forward to expose the two backside mounting holes in the steel rails of the seat assembly (Fig. 4). The mower incorporates a safety interlock system that will stop the drive motors and deck motors when the operator 4.

  • Page 4: Checking The Tire Pressure

    C. ATTACHING THE STEERING LEVERS Vertical Alignment Horizontal Alignment 1. Lift one steering lever to align the holes in the steering CORRECT CORRECT lever with the holes in the corresponding mounting pole. Select the preferred steering lever operating INCORRECT INCORRECT height: - Upper two holes in the mounting pole;...
  • Page 5 4. Postion both blades so that the ends point toward the sides of the mower (Fig. 9). 5. On the outside edge of each blade, measure the distance X from the bottom edge of the side of the Blades side to side blade to the ground (Fig.
  • Page 6 To Make Front-to-Rear Adjustment ATTENTION: Always level the deck side-to-side before making a front-to-rear adjustment. 1. Postion both blades so that the ends point toward the Blades front to rear front and back of the mower (Fig. 12). 2. Measure the distance X from the tip of one blade to the ground (see Fig.
