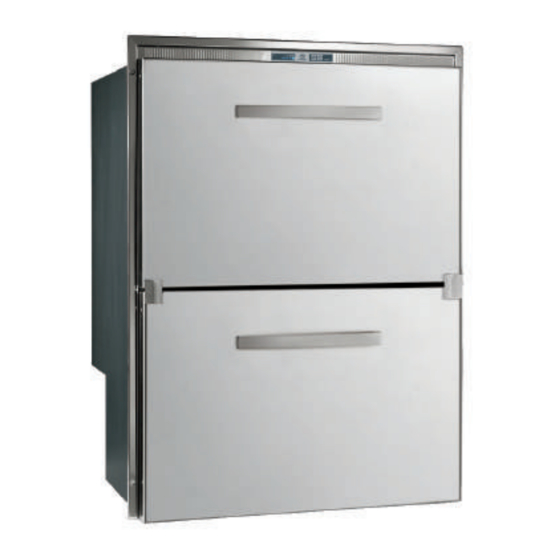

- Page 1 EN 42 SERIE DW ISTRUZIONI DI INSTALLAZIONE USO E MANUTENZIONE LEGGERE ATTENTEMENTE PRIMA DELL’USO...
-
Page 2: Table Of Contents
INSTALLATION USE AND ASSISTANCE MANUAL DW Series Read carefully before use Contents 1 – INTRODUcTION 1.1 – DELIvERY LET TER 1.2 – WARRANTY 1.3 – PRODUCT NAME 1.4 – HOW TO READ THIS MANUAL 1.5 – NOTES FOR THE USER 1.6 –... -
Page 3: Introduction
This manual is considered an integral part of the refrigerator and must accompany it from the time of sale to the end user. vitrifrigo prohibits the reproduction of any part of this manual. before it leaves our factory, every refrigerator undergoes strict tests and inspections to guarantee that it is in perfect working order. -
Page 4: Warranty
1.2 – WARRANTY The appliance and mechanical parts of the machine that are found to be faulty are covered by warranty (see Contractual Provisions). After passing inspection, electrical equipment is not covered by warranty. During the warranty period, all operations concerning the disassembly or replacement of parts must be carried out under the supervision of specialist technical staff under penalty of rendering the warranty null and void. -
Page 5: Intended Use
Only qualified operators are allowed to use the machine. Qualified operators are those persons who have: - read the “instructions for use” in full; - fully understood the concepts expressed in the publication; Manufacturer The manufacturer is not responsible for the consequences of incorrect or improper use of the equipment, such as, for example: - use of unsuitable raw materials;... -
Page 6: Symbols Used
1.7 – SYMbOLS USED The following section contains the symbols used in the manual to draw the reader’s attention to the different hazard levels involved in the use and maintenance operations for the machine. WARNING Any text marked with this symbol contains important information concerning safety and indicates potentially dangerous situations or aspects. -
Page 7: Transport
2 - TRANSPORT 2.1 – TRANSPORT The appliance is shipped as standard on transport means over land. Special packaging and/or containers are available for specific requirements. WARNING Parts packaged in cardboard boxes cannot be stacked. 2.2 – hANDLING AND/OR STORAGE Transport, hoisting and assembly must be performed by specialist companies in the transport industry;... -
Page 8: Models
3 - MODELS 3.1 – DRAWER VERSION The following table shows the different types of version for the models with two compartments (fig.3.1.1) or single compartments (fig. 3.1.2). The letters “*IM” shows the possibility to insert an ICE MAKER into the compartment. 1 DRAWER 2 DRAWERS fridge... -
Page 9: Combined Version
3.2 – cOMbINED VERSION The following table shows the different combined versions (fig. 3.2.1). Ventilated Ventialted with 1 drawer module Ventialted with 2 drawer module Fig. 3.2.1... -
Page 10: Introductory Information
4 – INTRODUcTORY INFORMATION 4.1 – IDENTIFIcATION LAbEL Whenever communicating with the manufacturer or assistance centres, always quote the SERIAL NUMbER of the machine on the identification label (fig. 4.1.1). The label also states all of the technical specifications of your refrigerator. Fig. -
Page 11: Dw Model Description
4.2 – DW MODEL DEScRIPTION FIG. 4.2.1 FIG. 4.2.2 FIG. 4.2.3 Top drawer Control unit Drip tray version “DT” Bottom drawer Compressor Drip tray version “RF” Thermostat Basket/Racks Condenser Racks Fixing bracket Handles Fig. 4.2.1... - Page 12 Fig. 4.2.2 Fig. 4.2.3 ...
-
Page 13: Dw-Im Model Description
4.3 – DW-IM MODEL DEScRIPTION FIG. 4.3.1 FIG. 4.3.2 FIG. 4.3.3 FIG. 4.3.4 Top drawer Water filler pipe Ice cube maker Drip tray version “DT” Bottom drawer Electronic board ice cube maker ON “I” / OFF “0” C Thermostat Protection Basket/Racks Solenoid valve Racks... - Page 14 Fig. 4.3.2 Fig. 4.3.3 Fig. 4.3.4 ...
-
Page 15: Ventilated Model Description
4.4 – VENTILATED MODEL DEScRIPTION FIG. 4.4.1 FIG. 4.4.2 Shelf Control unit Glass shelf Compressor Salad compartment Evaporator fan Condenser Light Door shelves Thermostat Fig. 4.4.1... - Page 16 Fig. 4.4.2 ...
-
Page 17: Installation
5 - INSTALLATION 5.1 - INSTALLATION PPE MUST bE WORN Handle the product with the utmost care and wear suitable personal protective equipment compliant with legal standards. WARNING before connecting the appliance, make sure that the mains voltage is the same stated on the appliance rating plate or on the rating plate of the compressor. - Page 18 WARNING Keep the air vents in the appliance casing and/or cabinet for built-in installation free from obstruction. Using the special screws, continue to fit the refrigerator in the cabinet, inserting the screws into the holes along the fastening profile (Fig. 5.1.3). Install the refrigerator away from heat sources in dry and well-ventilated surroundings.
-
Page 19: Electrical Connections
5.3 – ELEcTRIcAL cONNEcTION WARNING before connecting the refrigerator, make sure that there is an efficient earthing system, compliant with European Standards (EN). WARNING before making any wiring connection, make sure that the main breaker is off (OFF) (Fig. 5.1.4). PLEASE NOTE: For correct connection see the attached wiring diagram accompanying this manual. -
Page 20: Instructions For Battery Connection (Models Equipped For Dc Power Only)
PLEASE NOTE: You are legally obliged to earth the system. Make sure that the electrical system earthing installation is in perfect working order. The manufacturer hereby refuses to accept any liability for damages to people or property arising from the failure to respect this regulation. The use of adapters, multiple sockets, or extension leads is not recommended. - Page 21 the compressor by snapping the cover over the screw head (1). Power supply (fig. 5.4.1) The electronic unit must always be connected directly to the battery poles (2). Connect the plus to + and the minus to -, otherwise the electronic unit will not work. The electronic unit is protected against reverse battery connection.
-
Page 23: Danfoss Bd35/Bd50F 12-24 V Dc Instructions
5.5 - DANFOSS bD35/bD50F 12-24 V Dc INSTRUcTIONS The electronic unit is a multi voltage device. It can be used with 12v/24 v DC and 100-240 v AC 50/ 60Hz systems. The maximum voltage for 12v DC systems is 17 v DC, while for 24 v DC systems it is 31.5 v DC. - Page 24 Lamp (optional, fig. 5.5.1) A 12 v DC 5 Watt lamp (10) can be connected between the terminals A and C. The output voltage between the terminals A and C is always regulated to 12 v DC. A 12 v DC lamp can be used with both the 12 v and 24 v power supply.
-
Page 26: Water Supply Connection (Dw-Im Version Only)
5.6 - WATER SUPPLY cONNEcTION (DW-IM version only) Connect the water mains to the threaded filler on the solenoid valve (A) using the special hose (11) supplied (Fig. 5.6.1). Fig. 5.6.1 PLEASE NOTE: This appliance is suitable to work with a water pressure between 1 - 3 bar (0.1 - 0.3 MPa). - Page 27 To select a cooler temperature, press the control repeatedly until the LED furthest on the right (maximum cold) lights up; pressing it again will cause the LED furthest on the left to light up. When the LED is in the middle, the appliance is at a medium temperature setting. 6.1.1.1 Fig.
-
Page 28: Fine" Adjustment For Water Supply (Version With Ice Maker)
6.1.2 - “FINE” ADJUSTMENT FOR WATER SUPPLY (version with ice maker) To access the screw to adjust the incoming water level, remove the plastic casing from the ice maker (Fig. 13, A). Use a screwdriver on the water level adjustment screw (Fig. 13, b) to move the contact directly on the grid assembly. -
Page 29: Maintenance Mode
6.3 – MAINTENANcE MODE During maintenance operations, the ice-making operations are interrupted. The machine enters maintenance mode when: • The ice maker on switch (Fig. 6.3.1) is off. • Hopper (Fig. 6.3.1) full of ice. To restart the ice maker simply empty the hopper, even partially). -
Page 30: Defrosting The Appliance
7.2 – DEFROSTING ThE APPLIANcE PLEASE NOTE: Defrosting should be carried out whenever the frost layer exceeds a thickness of three millimetres. This is necessary to guarantee efficient refrigeration and to avoid excessive power consumption. For total appliance defrosting: • Press the on-off button “... -
Page 31: Stainless Steel Front Panel Removal
• connect the power cord • refit the cover. WARNING When replacing the board, take great care not to damage the magnetic control reed. 7.5 - STAINLESS STEEL FRONT PANEL REMOVAL before removing the panel, we recommend that you take the drawer out of the fridge, as described in the previous section. -
Page 32: Troubleshooting
8 - TROUbLEShOOTING PRObLEM CAUSE SOLUTION Thermostat make sure it is set to on. set to off. The a u t o m a t i make sure the electrical system automatic circuit breaker is breaker of the engaged. electric system is off. the power supply cable is not faulty any junction points in the power line are efficient and terminals are properly tightened. -
Page 33: Disposal
PRObLEM CAUSE SOLUTION The appliance is not working. Make sure there is electrical power. Make sure that the electrical system circuit breaker on the appliance has not tripped. Make sure that the plug is in perfect working order and is correctly inserted into the socket The appliance is not working... -
Page 34: Wiring Diagrams
10 - WIRING DIAGRAMS WHITE WHITE... - Page 36 WHITE WHITE...
- Page 38 WHITE WHITE...
- Page 40 OLD MODEL WITH SWITCH IN THE DRAWER...
- Page 41 NEW MODEL...
- Page 43 DICHIARAZIONE DI CONFORMITA’ La VITRIFRIGOsrl con sede in via della Produzione 9, 61022 fraz. Montecchio VALLEFOGLIA(PU), Italia, DICHIARA sotto la propria responsabilità che il frigorifero o unità refrigerante per la refrigerazione ed il mantenimento di cibi e bevande i cui dati sono riportati nell’etichetta sottostante ed alla quale questa dichiarazione si riferisce E’...
