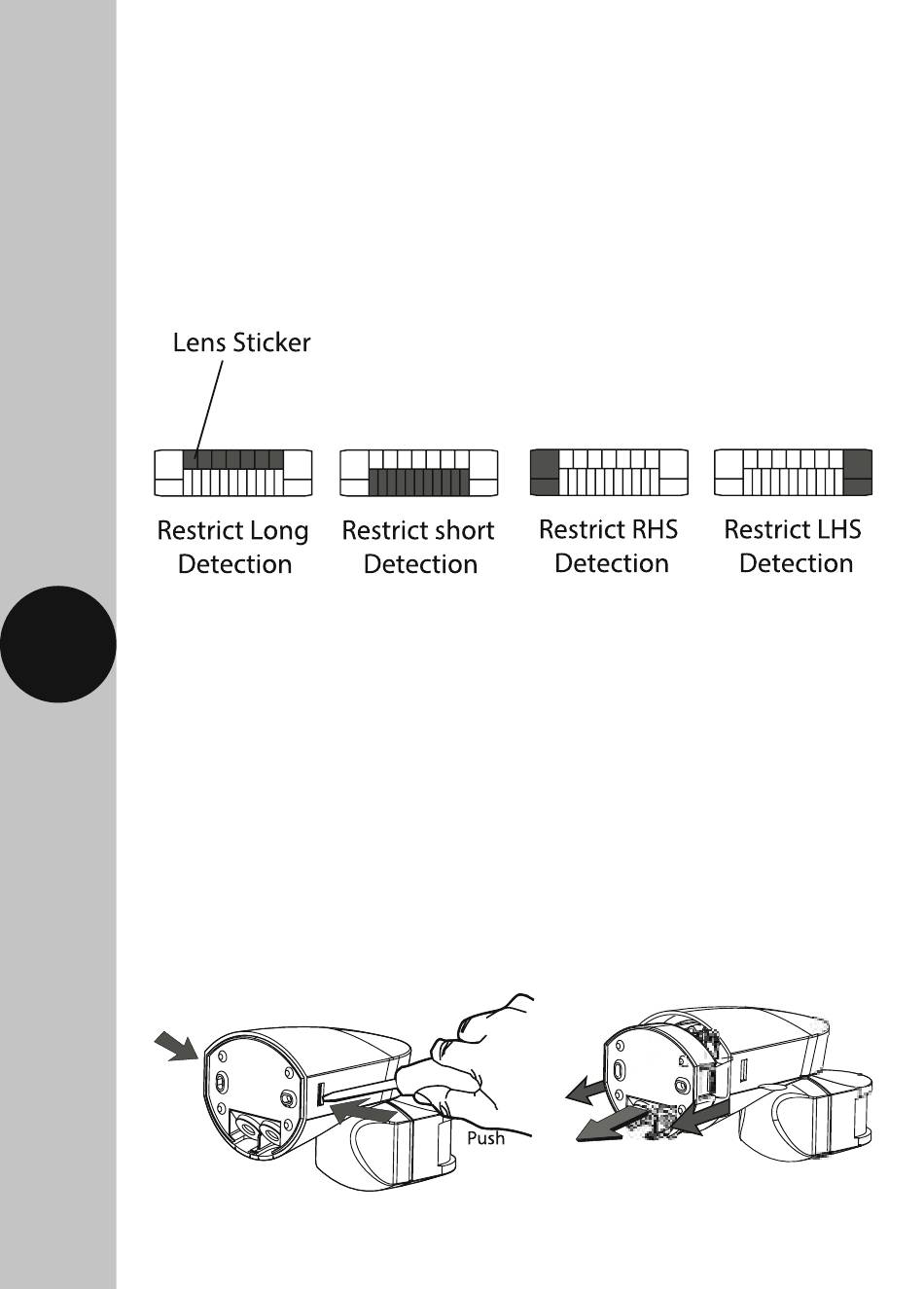

• The top section of the lens covers long range
All manuals and user guides at all-guides.com
• Mask the PIR Light controllers lens to suit
12 10. Accessing Terminals
This may be necessary to add further lighting for instance
and the following procedure for removing the unit from
its back plate should be followed:-
10.1 Insert a flat blade screwdriver in the catch at the
detection, the bottom covers short range.
Similarly the left and right lens sections cover
the left and right detection area respectively.
your installation.
After Installation
sides of the unit and lever it outwards.
