Summary of Contents for Timeguard SLDD1000

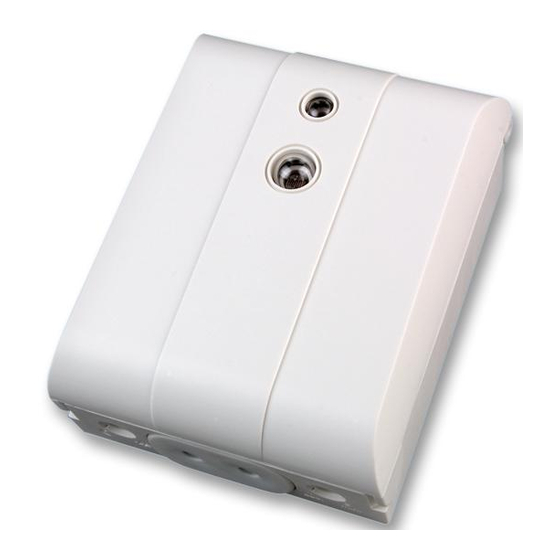

- Page 1 1000W DUSK TO DAWN LIGHT CONTROLLER Cat No. SLDD1000...
- Page 2 Introduction The SLDD1000 features an integral daylight sensing photocell which will automatically switch connected lights on at dusk and off at dawn. It incorporates an adjustable operation delay to prevent mis-operation due to e.g. car headlamps. Insert Common screwdriver and twist...
- Page 3 Time delay View on underside of unit shows adjustments. Parts included • Photocell (Dusk/Dawn) Switch. • Instruction manual. Please keep safe for future reference. • Accessory Pack. Tools and parts needed • 3 core cable • Electric/hand-held drill & bits. •...
- Page 4 Installation The unit is suitable for connection to a 240 V ac 50Hz electricity supply. It is suggested that 3-core round flexible cable of 1sq.mm gauge is used. An internal switch should be installed to switch the power to the unit ON &...
- Page 5 Connection Connect the incoming mains cable to the terminal block on the unit as follows (see connection diagram): NEUTRAL (Blue) EARTH (Green/Yellow) LIVE (Brown) Connect the lighting load cable to the terminal block. NEUTRAL (Blue) EARTH (Green/Yellow) LIVE (Brown) Please note the the N terminals are common. Ensure that the connections are secure.
- Page 6 Connect the unit to the mains and switch power on. After a short delay, the unit will switch ON. This is indicated by the red LED see diagram C. Any attached lights will also illuminate. Setting up for automatic operation The DUSK (LUX) control determines the level of darkness required for the unit to start operating.
- Page 7 Technical specifications 230 V AC ~ 50Hz Power Supply: Filament/incandescent 1000W Maximum Switching capacity: Fluorescent 250W (iron ballast only), not suitable for electronic high frequency ballast units including low energy/compact fluorescent lamps) Not suitable for discharge lighting Dusk - Dawn (adjustable Operation: daylight sensing) Environmental Protection:...
- Page 8 For the second and third years or any difficulty in the first year telephone the helpline on 020 8450 0515. THREE YEAR GUARANTEE HELPLINE 020-8450-0515 For a product brochure please contact: Timeguard Ltd. Victory Park, 400 Edgware Road, London NW2 6ND 020-8452-1112 or email csc@timeguard.com...
