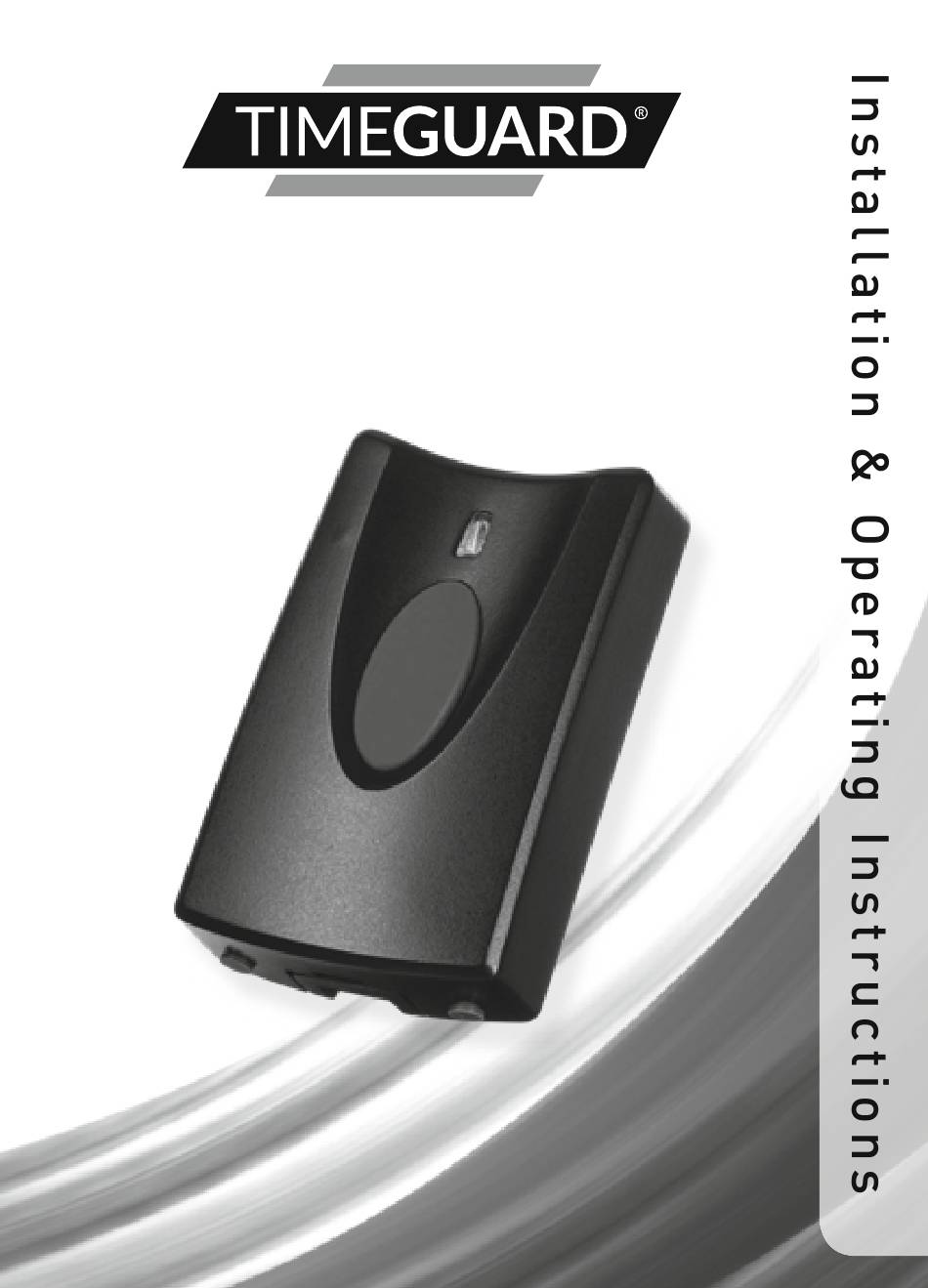

  • Page 1 LEDPRO RF Remote Fob Model: LEDPROFOB – Black...

  • Page 2: General Information

    1. General Information These instructions should be read carefully and retained for further reference and maintenance. 2. Safety • Keep the RF Remote Fob clean and in a good condition. • Do not submerge the fob in water or use in extremely damp or wet locations •...
  • Page 3 • CE Compliant • Dimensions (H x W x D) 60 x 38 x 15mm • Compatible with the following Timeguard PIR products; SLB2300RF PIR Light Controller – Black SLW2300RF PIR Light Controller – White LEDPRORFKB RF Remote Kit – Black...
  • Page 4 4. Battery • To access the battery holder, remove the back plate from the fob as shown in the diagram. 5. Pairing the RF Remote Fob(s) with the PIR Light Controller Note: Please refer to the operating instructions that came with the SLB-W2300FR or LEDPRORFKB-WH products you are using, and ensure you have completed the Walk Test Procedures before you can pair the devices.
  • Page 5 • Press the centre button that is located on the bottom of the PIR light controller once (do not press and hold for longer than 4 seconds), the lamp will flash twice to indicate it is ready to pair your fob(s). Note: once the lamp has flashed twice, the PIR sensor will no longer trigger the lamp with motion until the pairing sequence has been completed.
  • Page 6 LEDPRORFKB-WH Centre Button Location • Press the fob button once. The lamp will turn ON for 3 seconds, and back OFF again, to indicate it has been registered. Note: If you have more than one fob to pair (Up to 6 max) then press the fob buttons, one at a time, waiting for the lamp to turn ON for 3 seconds and back OFF again each time, between presses.
  • Page 7 • After the last fob press, wait for approximately 30 seconds until the lamp flashes twice. This will indicate that your fob(s) have successfully been paired. Note: once the lamp has flashed twice, the PIR light controller will begin to trigger with motion once again.
  • Page 8 6. Erase all RF Remote Fobs from the PIR Light Controller • Press and hold the centre button, located on the bottom of the PIR light controller, for approximately 5 seconds. The lamp will flash 5 times. This indicates that un-pairing has been successful.
  • Page 9 7. Installing a RF Remote Fob into a Wall Switch • Remove the rubber caps from the bottom of the fob as shown. Remove rubber caps • Using 2 of the wires supplied, push them firmly into the 2 spring clamp terminals. Check they are both secure with a light tug.
  • Page 10 • Follow the wall switch wiring image for connection. Dry Contact w/o 230V AC Potential...

  • Page 11: Year Guarantee

    020 8450 0515. Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance...
  • Page 12 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
