Typical Application Diagram; Led Diagnostics - Altronix ACMCB Series Installation Manual

Fig. 1
ACCESS CONTROL
PANEL
C
OUTPUT
NO
RELAY
NC
F1 F2
LED1 LED2
MAG.
LOCK
NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2
ELECTRIC
STRIKE
ELECTROMAGNETIC
DOOR HOLDERS
Power Supply Board
LED
Red (DC) Green (AC)
ON ON
ON OFF
OFF ON
OFF OFF
Red (Bat) Battery Status
ON Normal operating condition.
OFF Battery fail/low battery.
ACM8CB Access Power Controller
LED
LED 1 - LED 8 (Red) Output relay(s) energized.
Trg (Green)
ACMCB series

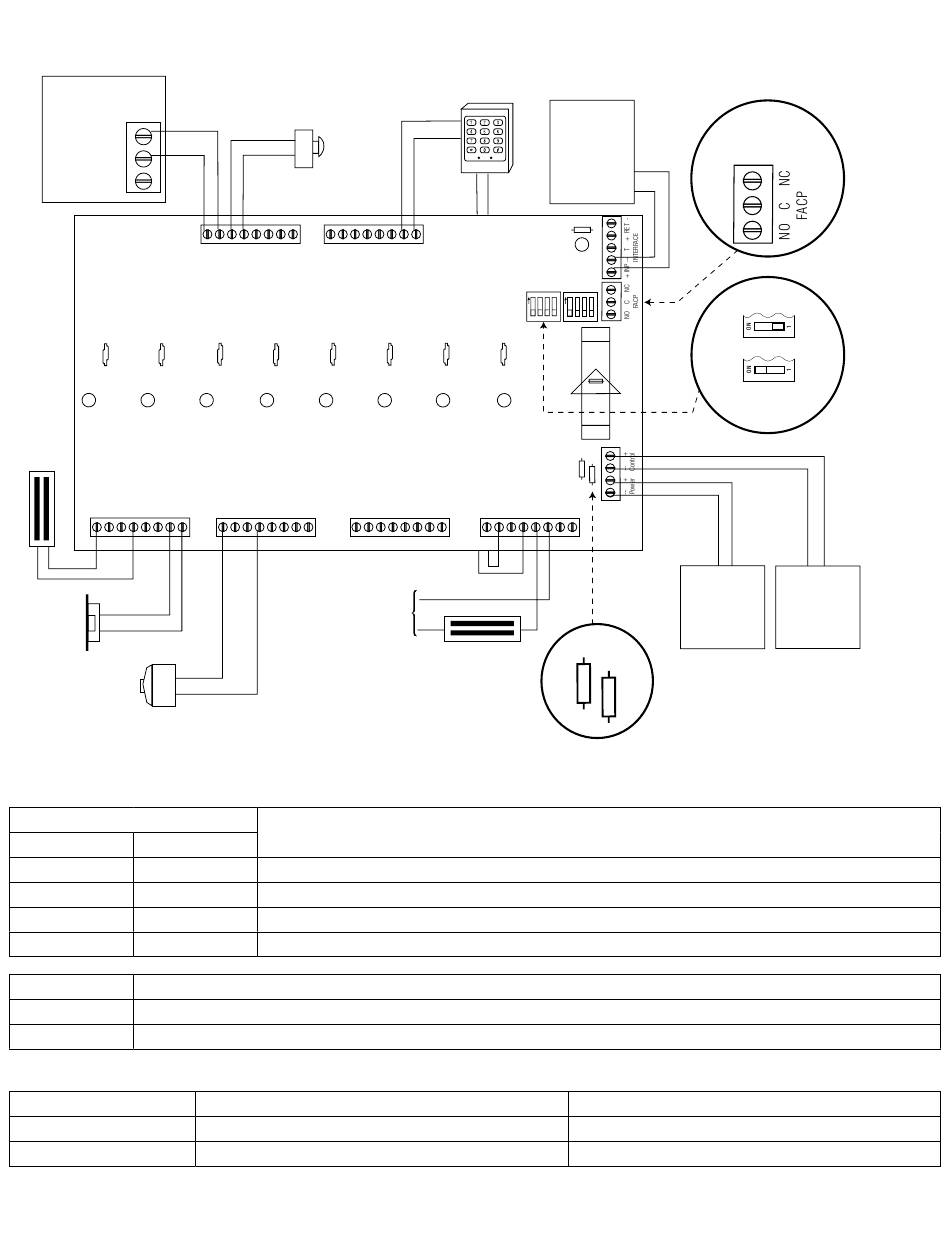

Typical Application Diagram:

NORMALLY OPEN
N.O. DOOR
RELEASING DEVICE
IN GND IN GND IN GND IN GND IN GND IN GND IN GND
1 2 3 4 5 6
F3 F4 F5
LED3 LED4 LED5
NC C NO COM NC C NO COM NC C NO COM
OUTPUT 3 OUTPUT 4 OUTPUT 5
UL Listed
POWER SUPPLY
Power Supply Status
Normal operating condition.
Loss of AC. Stand-by battery supplying power.
No DC output. Short circuit or thermal overload condition.
No DC output.
ON
FACP input triggered (alarm condition).
KEYPAD
Control Panel)
IN GND
7 8
F6 F7 F8
O N
1 2 3 4
LED6 LED7 LED8
NC C NO COM NC C NO COM NC C NO COM
OUTPUT 6 OUTPUT 7 OUTPUT 8
MAG.
LOCK

LED Diagnostics:

Fig. 1a
FACP Dry
FACP
Form "C"
Output
(Fire Alarm
J3
TRG
O N
SW1-SW8
1 2 3 4
FACP Interface Disabled
MAIN
10A 250V
FACP Interface Enabled
J2
J1
AC or DC
POWER
SUPPLY
(req'd.)
J2
J1
Fig. 1b
OFF
Output relay(s) de-energized.
FACP normal (non-alarm condition).
POWER
SUPPLY
(Not evaluated
by UL)
