Layer Cropping and Scaling
In【LAYOUT】interface, click option 【8】 Advanced Setting to do more specific parameter settings
for layer cropping and scaling.

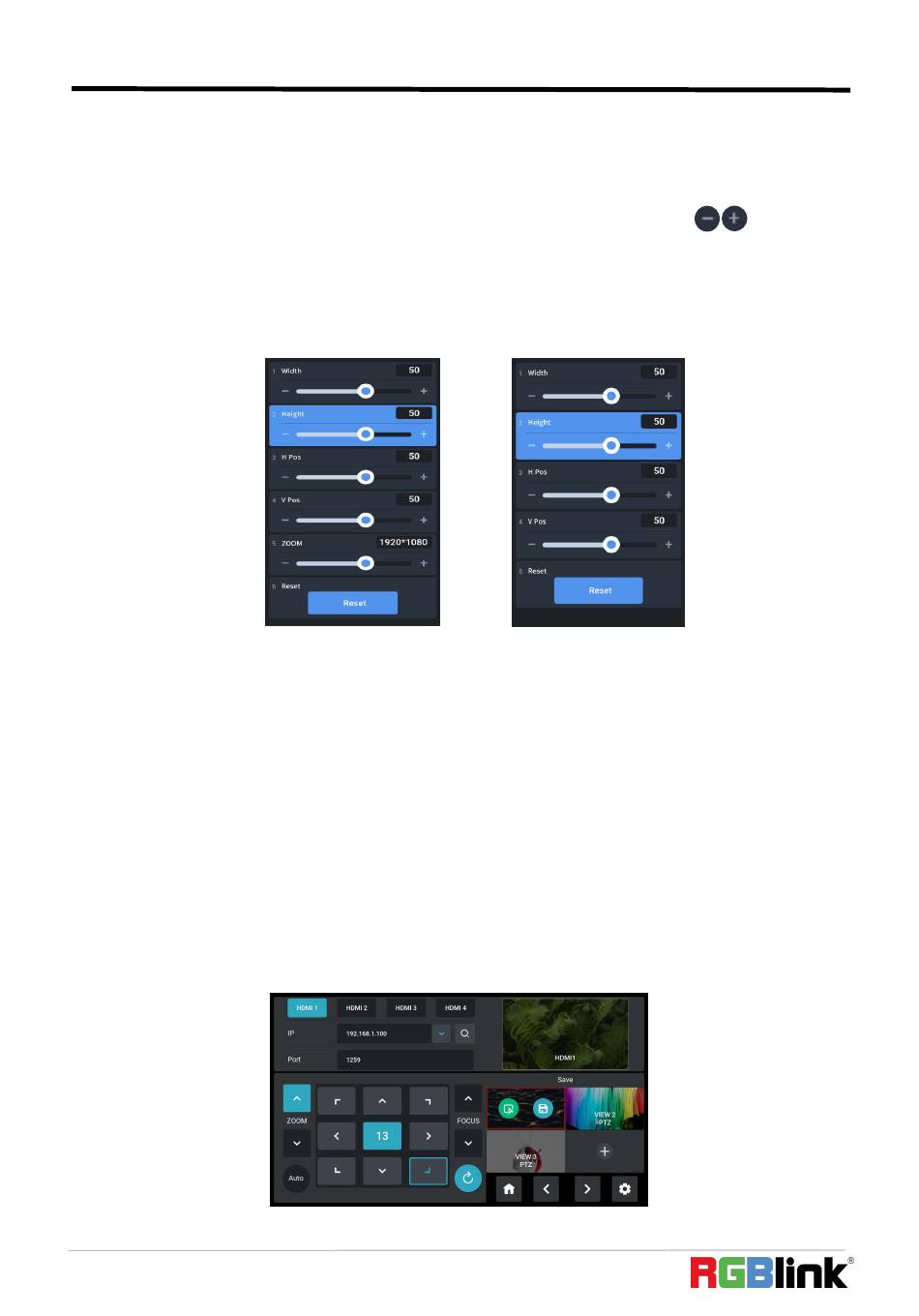

As shown in the figure below, settings can be done by sliding the bar or clicking .
In Layer Scaling interface, users can adjust Width, Height, Horizontal Position, Vertical Position and
set Zoom ratio.
In the Layer Cropping interface, Width, Height, Horizontal Position and Vertical Position can be set.
Same as Layer Size and Position Setting, use the adjuster to adjust layer size and the joystick to
quickly adjust Horizontal Position and Vertical Position.
Click Reset at the bottom of the interface to clear wrong settings so as to restore to the default
values.

3.6 PTZ Control

mini-mx can control the camera's lens moving horizontally and vertically, focus and zoom via IP
VISCA protocol and save the position and zoom information for quick calling.
The PTZ preset of mini-mx not only saves the parameters of the PTZ, but also includes calling the
camera, that is, when the VIEW of PTZ is loaded, the input is switched to the camera signal source
at the same time.
Tap【PTZ】or press Button【3】to enter the menu.
