Chapter 2 Install Your Product

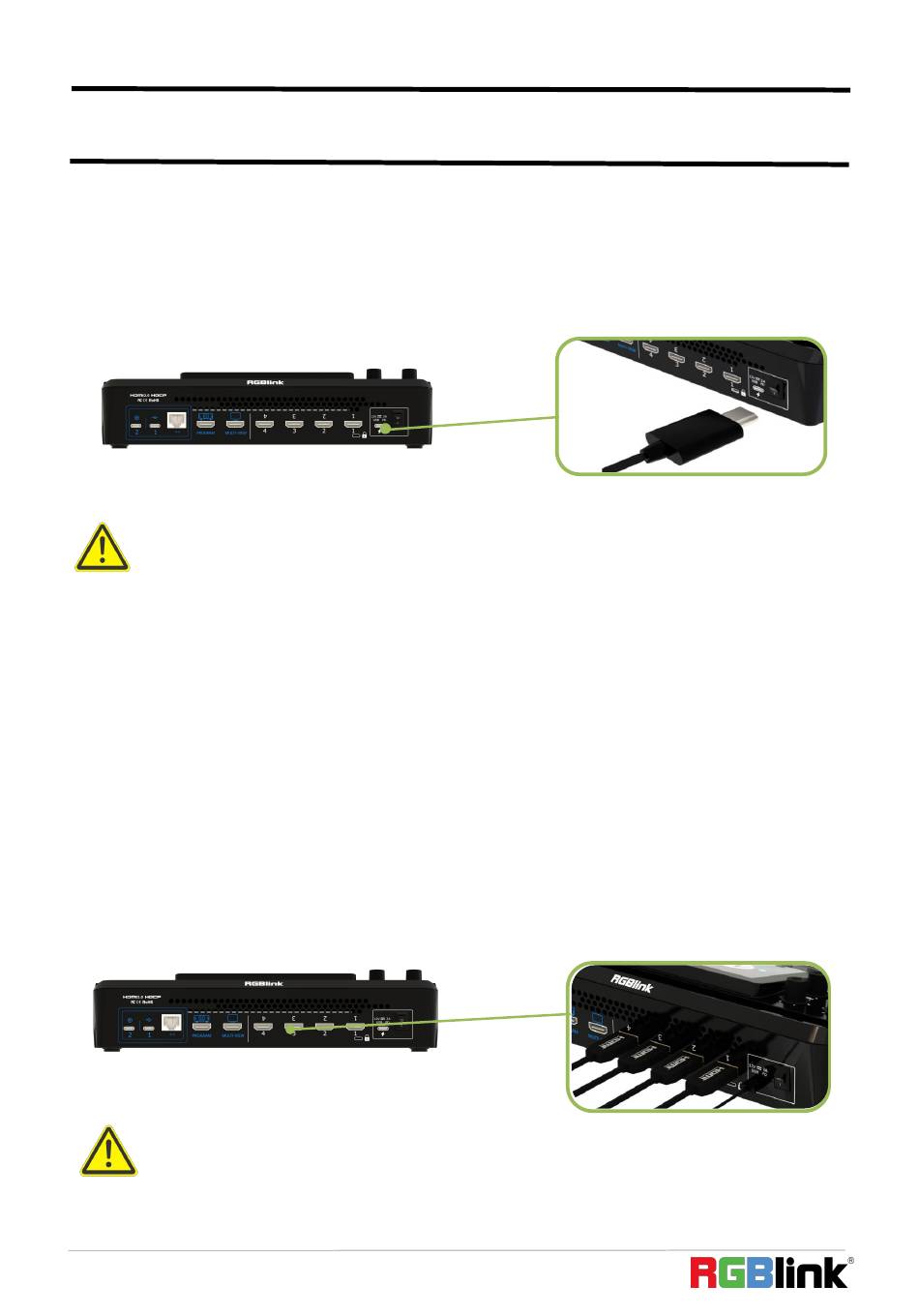

2.1 Plug in Power

RGBlink mini-mx is packaged with a PD power adapter (power cable included) , check the power
supply standard used in your country/region before power connection.
Warning:
The Power Supply included with mini-mx is the recommended power supply to use with the device.
Power supply should meet the following requirements:
1.Support PD "Fast Charge" capability;
2.Interfaces are the same as the adapter provided;
3.The power supply is rated for a minimum of 36W.

2.2 Connect HDMI Input

Users can use any camera, computer or other HDMI device as the input source of the mini-mx.
mini-mx supports up to 4 sources of different formats and resolutions at the same time via 4 HDMI
ports, and 4 HDMI inputs support up to 4K@60Hz. If users are using interlaced signal, mini-mx
supports de-interlace through HDMI 1 automatically.
Users can see the input views on the mini-mx screen when there is active signal plug in. Connect
mini-mx to a monitor with HDMI output interface to see PVW views and output resolutions.
Warning:
The HDMI cable is not included in the mini-mx package and needs to be purchased separately. Some
camcorders use a mini HDMI port, you need to buy a mini HDMI-HDMI cable separately when you use
these camcorders.
© Xiamen RGBlink Science & Technology Co., Ltd.
| support@rgblink.com | www.rgblink.com
Ph: +86 592 5771197
Connect mini-mx to power plug by the link cable
