SOFTWARE OPERATION
The main function of this window is to allow you to read
a predetermined number of samples from the evaluation board
and display them in both the time and frequency domain. The

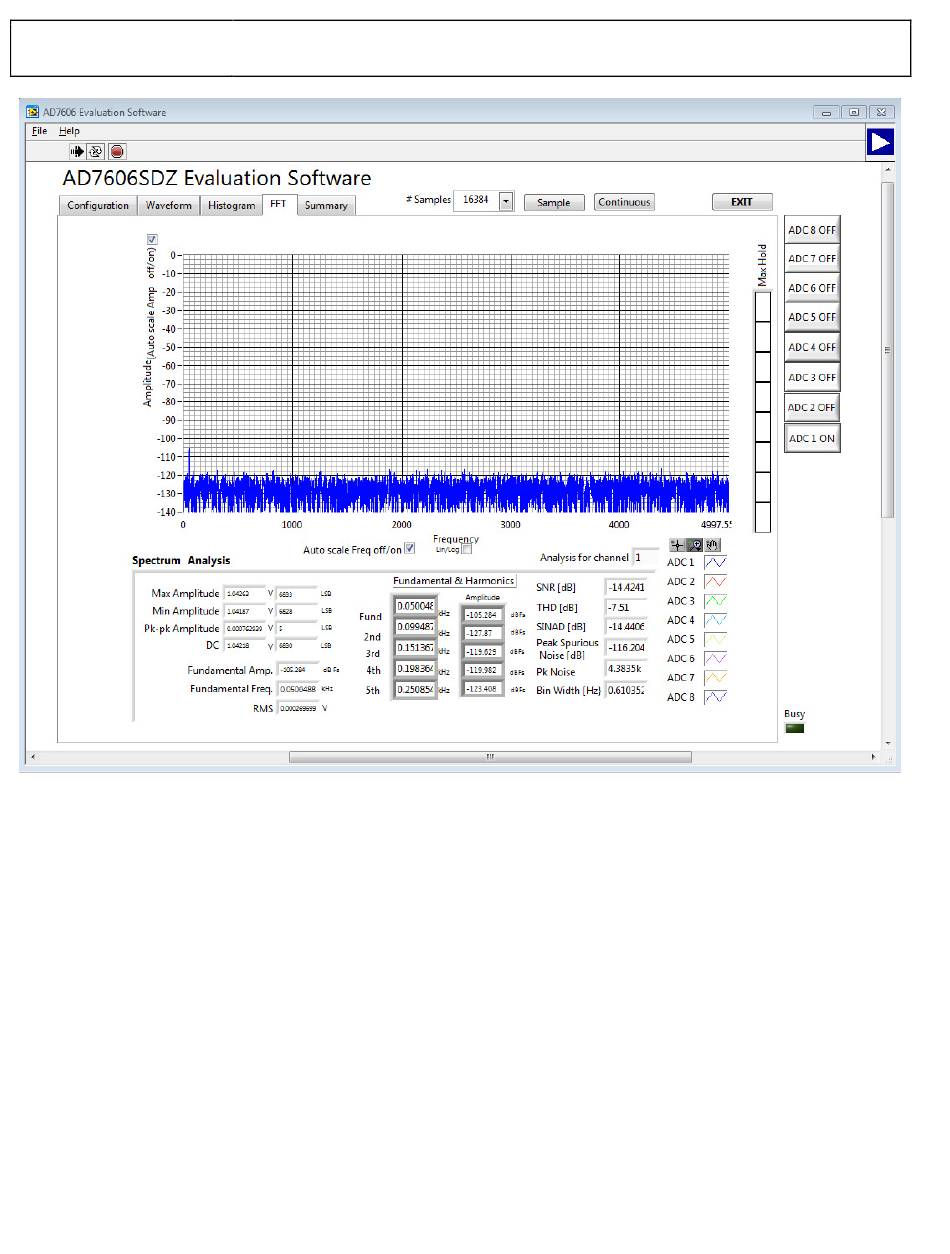

Figure 12. AD7606/7/8 Main Window
top portion of the screen contains the menu bar and the screen
can be divided into three main sections: Part Information,
Data Capture, and Linearity. The Data Capture tab consists
of four subtabs: Waveform, Histogram, FFT, and Summary.
Rev. Pr.A | Page 10 of 13
EVAL-AD7928SDZ User Guide
