SOFTWARE OPERATION

The main window of the EVAL-AD5142ADBZ
two tabs, Visual Mode and Manual Control.
Visual Mode
The Visual Mode tab is divided into the following sections:
ALL CHANNELS COMMANDS, INDIVIDUAL CHANNEL
COMMANDS, and a block diagram that contains boxes for
changing the control register values and buttons and for controlling
the hardware pins.
The ALL CHANNELS COMMANDS section allows you to
send quick commands directly to the AD5142A.
The INDIVIDUAL CHANNEL COMMANDS section allows
you to send quick commands to only specific channels of
the AD5142A.
The block diagram allows you to update the control register
status. Each register value can be easily updated by changing the
value in its respective block within the diagram. In addition,
buttons are available that allow you to change the level of some
software has
hardware pins.
Manual Mode
The Manual Mode tab, as shown in Figure 10, allows you to
customize an I
bars from 0 to 1 or from 1 to 0, as desired, and then clicking
SEND DATA.
Rev. 0 | Page 10 of 20
Evaluation Board User Guide
C data-word by manually switching the scroll
2

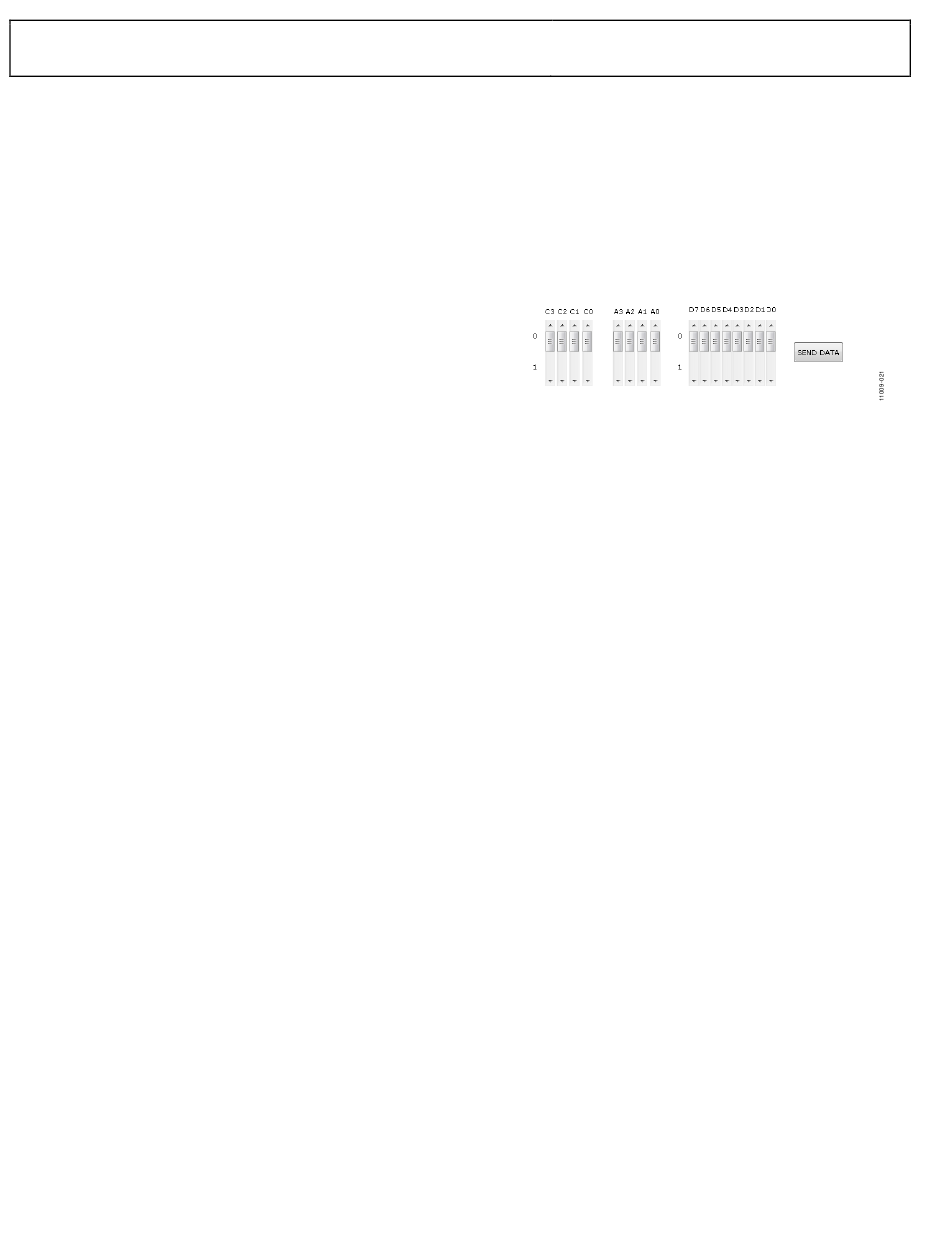

Figure 10. Manual Mode
