EVAL-AD7928SDZ User Guide

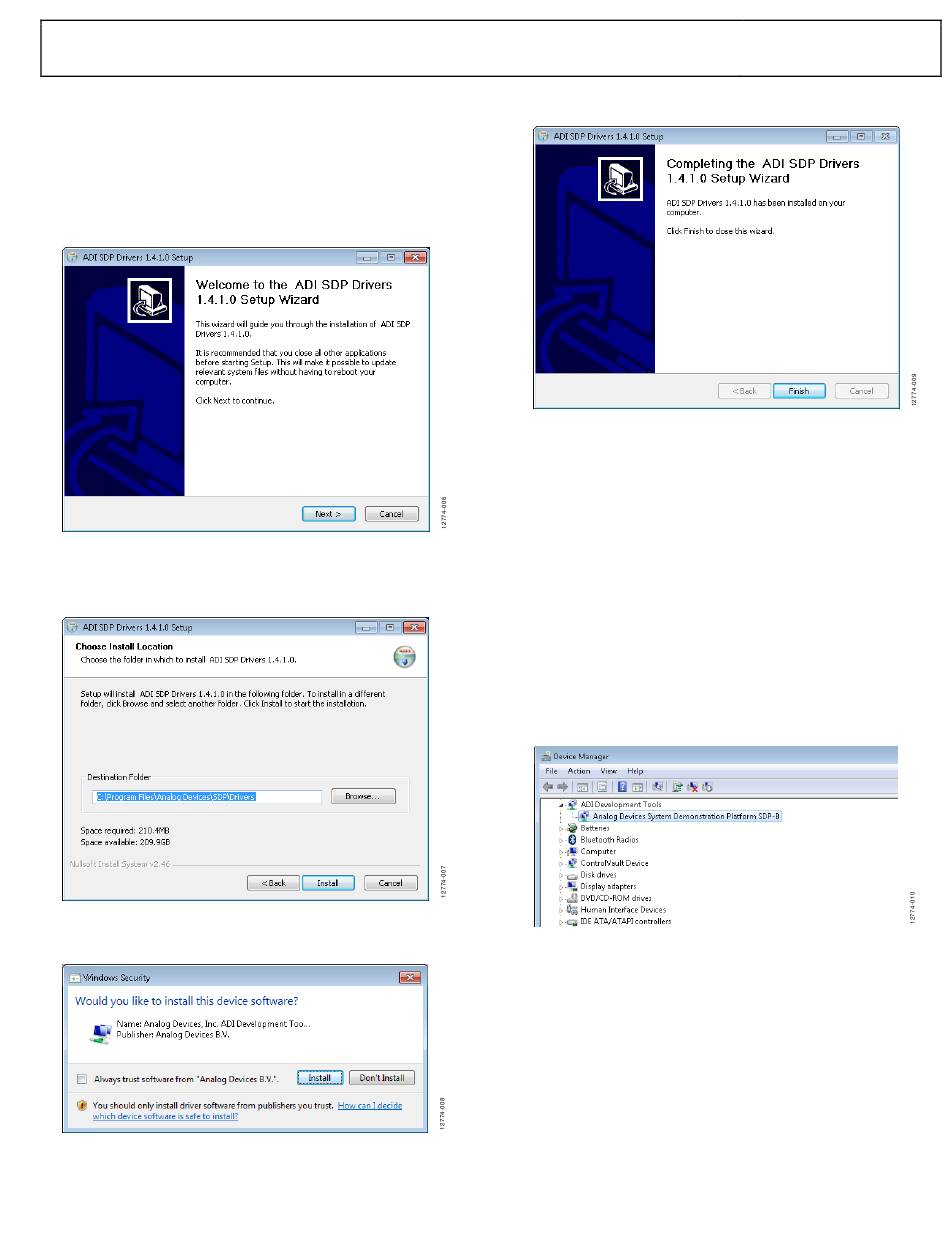

Installing the SDP Board Drivers
After the evaluation board software installation is complete,
the ADI SDP Drivers Setup wizard window opens for the
installation of the
EVAL-SDP-CB1Z
1.
The ADI SDP Drivers Setup Wizard opens. Click Next >
to begin the driver installation process.
Figure 7.
EVAL-SDP-CB1Z
2.
Select a destination folder for the SDP drivers, and click
Install.
Figure 8.
EVAL-SDP-CB1Z
Drivers Installation—Choose Install Location
3.
Click Install to proceed with the installation.
Figure 9.
EVAL-SDP-CB1Z
Drivers Installation—Windows Security
SDP board drivers.
Drivers Installation—Setup Wizard
4.
The SDP drivers installation completes. Click Finish.
Figure 10.
After the evaluation software installation is complete, connect
the
EVAL-AD7606SDZ
SDP board as described in the Evaluation Board Hardware
section.
When you first plug in the
the USB cable provided, allow the Found Hardware Wizard
to run. After the drivers are installed, check that the board is
connected correctly by looking at the Device Manager of the
PC. The Device Manager can be found by right-clicking
My Computer > Manage > Device Manager from the list of
System Tools.
The
EVAL-SDP-CB1Z
Development Tools, as shown in Figure 11.
Rev. PR.A | Page 9 of 13
EVAL-SDP-CB1Z
Drivers Installation—Complete
evaluation board to the
EVAL-SDP-CB1Z
SDP board appears under ADI
Figure 11. Device Manager
EVAL-SDP-CB1Z
SDP board via
