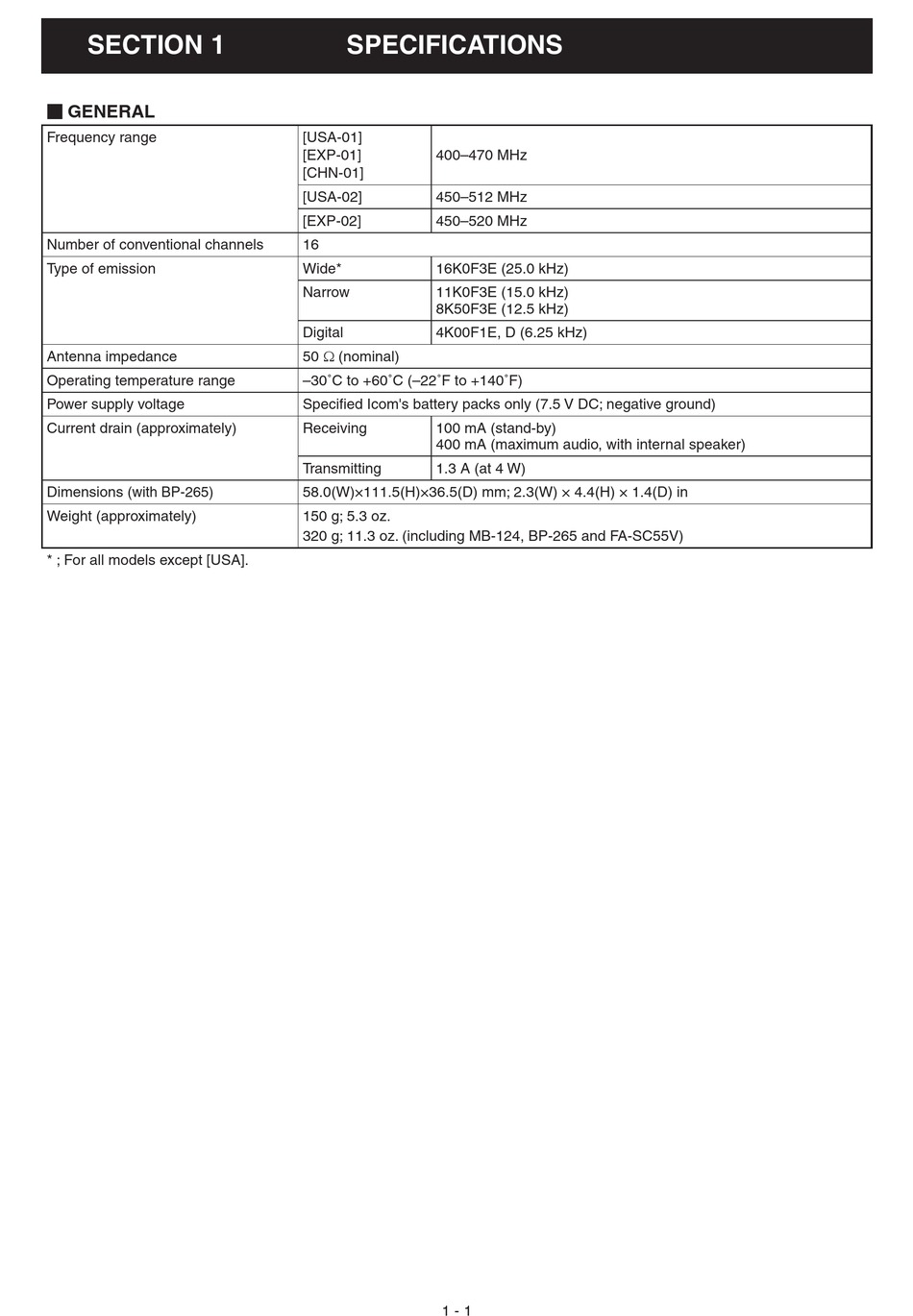

SECTION 1.
M
GENERAL
Frequency range
Number of conventional channels
Type of emission
Antenna impedance
Operating temperature range
Power supply voltage
Current drain (approximately)
Dimensions (with BP-265)
Weight (approximately)
* ; For all models except [USA].

SPECIFICATIONS

[USA-01]
[EXP-01] 400–470 MHz
[CHN-01]
[USA-02] 450–512 MHz
[EXP-02] 450–520 MHz
16
Wide* 16K0F3E (25.0 kHz)
Narrow 11K0F3E (15.0 kHz)
8K50F3E (12.5 kHz)
Digital 4K00F1E, D (6.25 kHz)
50 Ω (nominal)
–30˚C to +60˚C (–22˚F to +140˚F)
Specifi ed Icom's battery packs only (7.5 V DC; negative ground)
Receiving 100 mA (stand-by)
400 mA (maximum audio, with internal speaker)
Transmitting 1.3 A (at 4 W)
58.0(W)×111.5(H)×36.5(D) mm; 2.3(W) × 4.4(H) × 1.4(D) in
150 g; 5.3 oz.
320 g; 11.3 oz. (including MB-124, BP-265 and FA-SC55V)
1 - 1
