Icom IC-F4210D Service Manual page 14

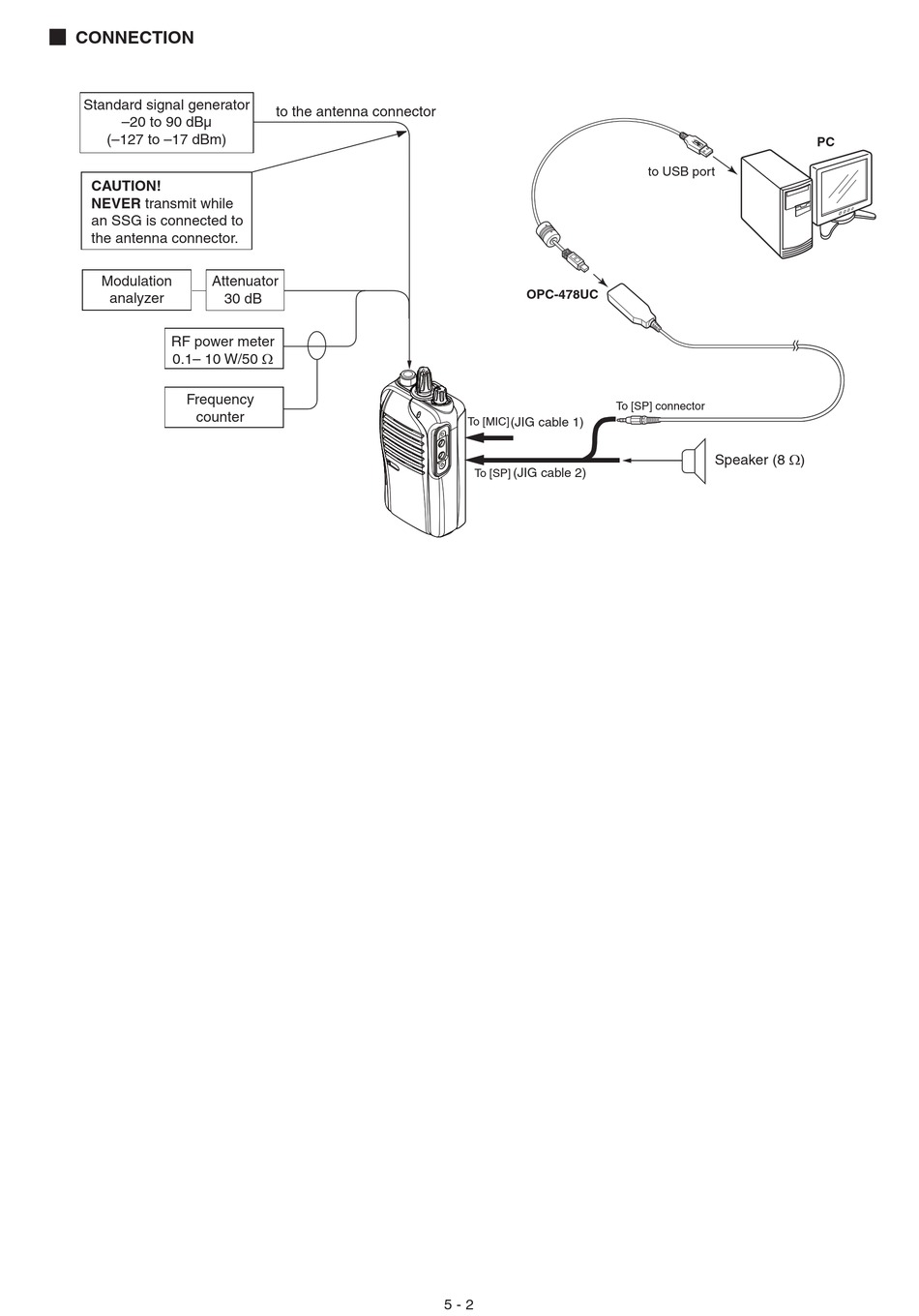

M CONNECTION
Standard signal generator
to the antenna connector
–20 to 90 dBµ
(–127 to –17 dBm)
PC
to USB port
CAUTION!
NEVER transmit while
an SSG is connected to
the antenna connector.
Modulation
Attenuator
OPC-478UC
analyzer
30 dB
RF power meter
0.1– 10 W/50 Ω
Frequency
To [SP] connector
counter
To [MIC] (JIG cable 1)
Speaker (8 Ω)
(JIG cable 2)
To [SP]
5 - 2
