3.1.4.1 Programming
The PRECELLYS® Evolution Touch is designed to operate at a maximum
speed of 10 000 rpm.
A PRECELLYS® Evolution Touch operating protocol is made up of several
successive cycles. Each protocol is composed of different parameters
listed in the table here-after and their setting can be made in the "Protocol
settings" or "Protocol library" menus.
Protocol parameters
Speed*
Number of cycles
Grinding time
Time delay between 2 periods
Tube size
** Cooling module
** Setpoint temperature
** Cooling control mode
* Programming speed between 6900 rpm and 7100 rpm is not permitted,
in order to ensure good functioning and a maximum product life.
** The cooling module is an option.
The operating protocol is under the responsibility of the operator. The
manufacturer recommends for each speed an operating range that
prevents a strong rise in the temperature of the device, the following
paragraph gives the limits of the adjustment parameters accessible to the
operator.
Page 12
Values
From 4500 to 6800 rpm and from 7200 rpm
to 10 000 rpm increments of 100 rpm
From 1 to 10
5 to 120 s by increment of 1 second
5 to 120 s by increment of 1 second
From 0.3 mL to 50 mL
ON or OFF
From 0 to 10°C by increment of 1°C
Manual or automatic

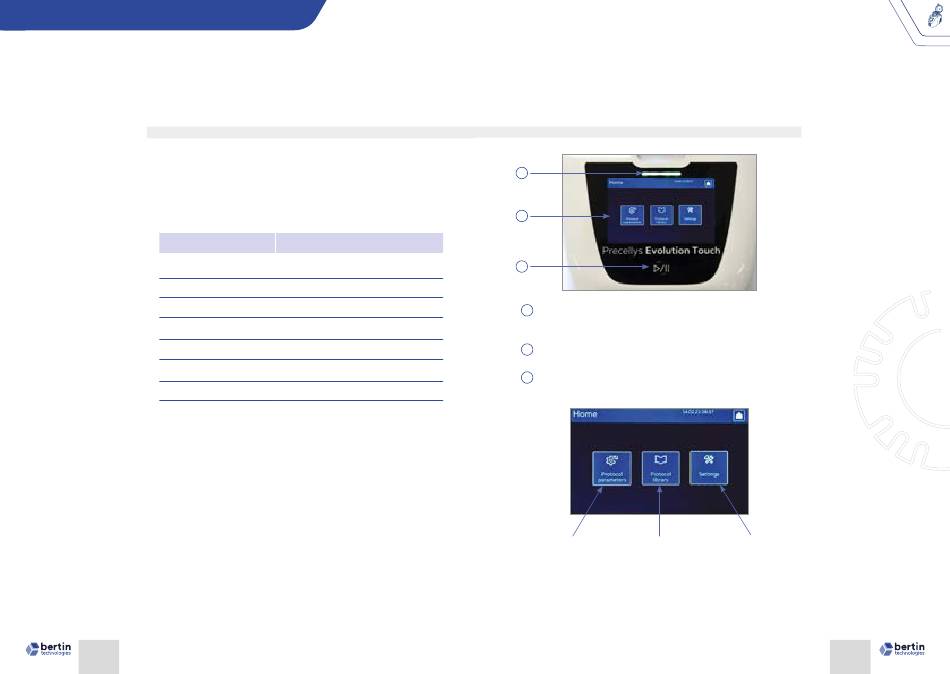

3.1.4.2 Description of the command interface
1
2
3
1
LED: indicates the status of the equipment:
• green: equipment operational and ready to start a cycle
• red: alarms
2 Screen: displays all the information related to the settings and
faults of the equipment
3
Start/Stop Button: starts and stops the cycle
Access to the Access to the list of
protocol settings. saved protocols
Access to the settings
of the device.
