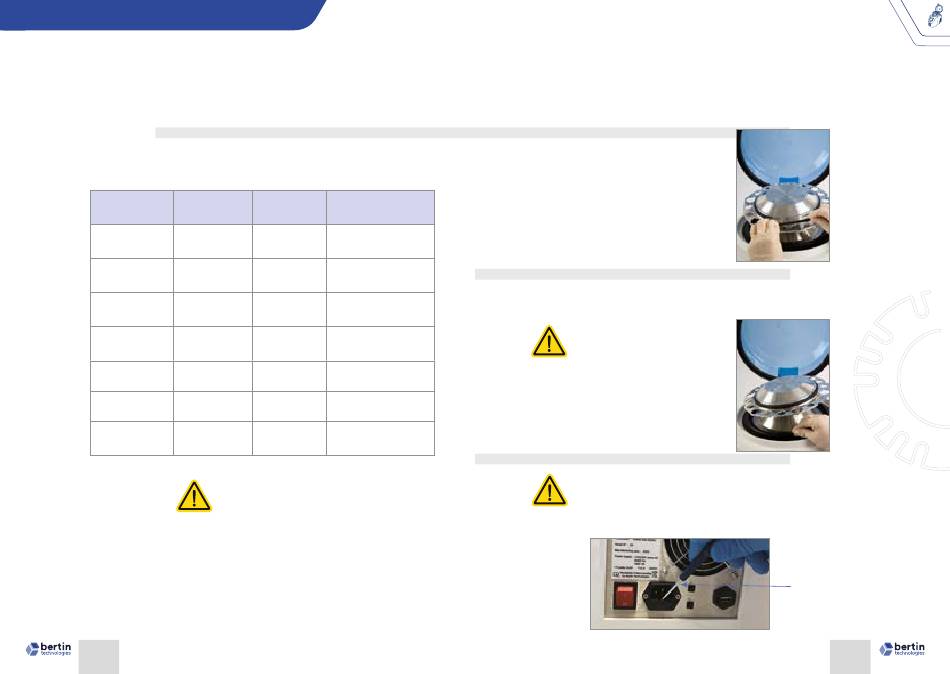

Wear parts replacement

This paragraph specifies the maintenance that users must perform on a
regular basis to ensure that the Precellys® Evolution Touch works properly
and that the tubes are maintained during the homogenization phase:
Wearing part Reference
2 mL blocking plate +
P002274-PEVT0-A.0
tube holder
7 mL blocking plate +
P000911-PEVT0-A.0
tube holder
15 mL blocking plate
P000810-PEVT0-A.0
+ tube holder
Vacuum joint P000806-PEVT0-A.0
Containment seal P000805-PEVT0-A.0
Mains fuse P002574-PEVT0-A.0
Anti-rotation kit P002378-PEVT0-A.0
DO NOT tilt the device: the Precellys® Evolution Touch must always be
resting on its four feet. If not, the internal components can get damaged
or the plastic casing will break.
Page 34
Frequency of
Why ?
replacement
Necessary for maintaining
when damaged tubes in place during
homogenization.
Necessary for maintaining
when damaged tubes in place during
homogenization.
Necessary for maintaining
when damaged tubes in place during
homogenization.
Necessary for maintaining
6 months or when
tubes in place during
damaged
homogenization.
1 year or when Necessary to guarantee the
damaged tightness of the device.
when damaged
Necessary for maintaining
1 year or when
tubes in place during
damaged
homogenization.
The voltage levels in the device are hazardous. In order
to guarantee the safety of the user, including during the
cleaning and disinfection phases, the containment seal
must not be damaged (puncture, tear, etc.)
9.3.1 vacuum joint replacement
The vacuum joint located on the metal holder wears
out during operation. It is recommended to change it
when the «Pressure error» alarm appears permanently or
recurrently. As a preventive measure, this seal should be
replaced at least once every 6 months.
9.3.2 Containment seal replacement
The containment seal should be changed at least once a year. The tube
holder does not have to be dismantled when replacing it.
Switch off the appliance and unplug
the power cord before carrying out
this operation.
1. Place the inner groove of the containment seal over the
metal flange.
2. Place the outer groove of the containment seal on
the housing. The containment seal should be changed
at least once a year. This procedure does not require the
dismantling of the metallic support ring.
9.3.3 Fuse replacement
Switch off the appliance and unplug the power cord
before carrying out this operation.
Remove the fuse holder by pinching the retaining clips .
flat screwdriver
