Summary of Contents for Bertin Technologies PRECELLYS 24 Touch

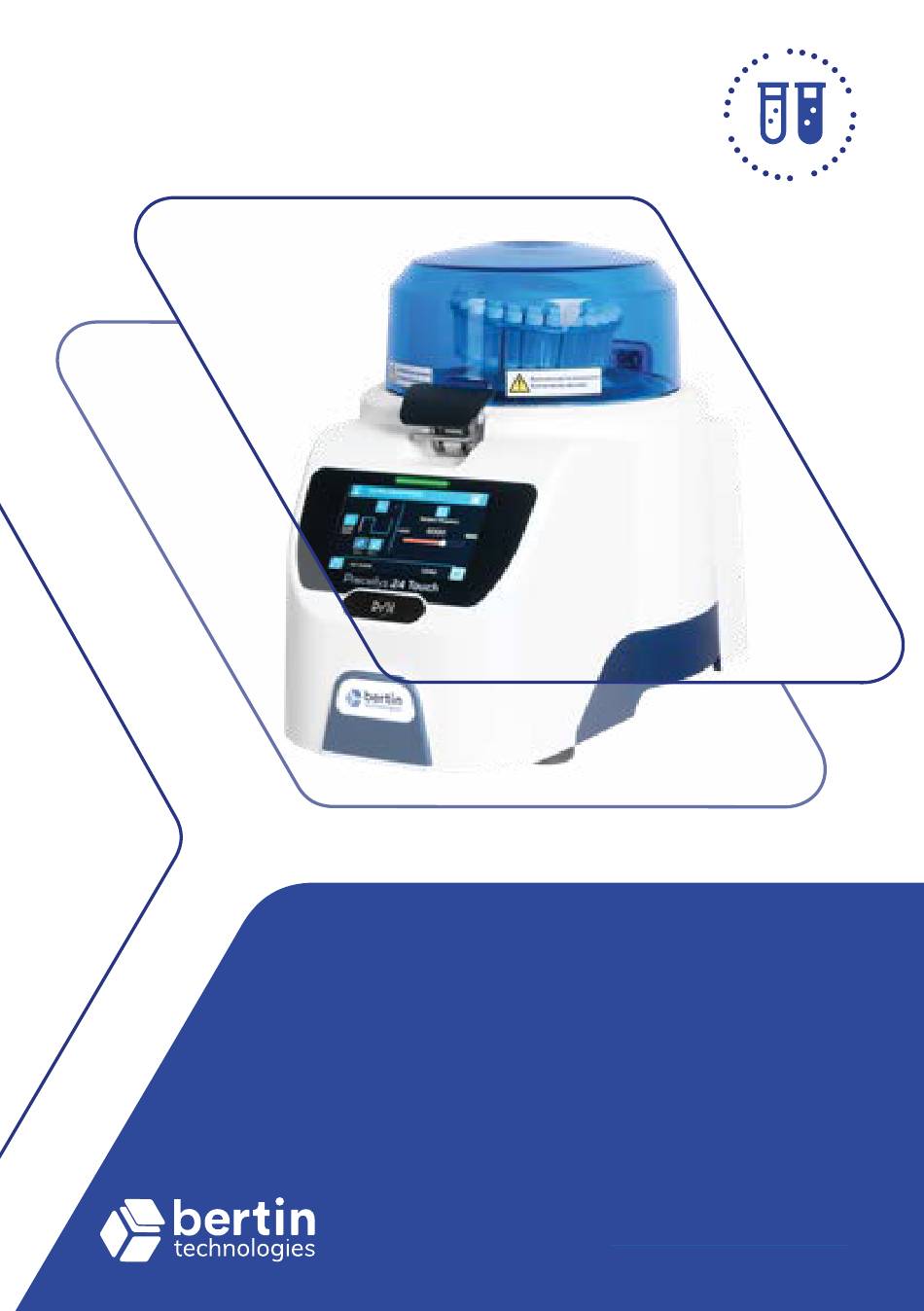

- Page 1 PRECELLYS ® 24 Touch USER MANUAL PRECELLYS 24 Touch ® WWW.BERTIN-TECHNOLOGIES.COM...
-
Page 2: Table Of Contents
Noise level The information in this document is designed only for use with this Bertin 3.4. Warranty Technologies product. Bertin Technologies is not liable of any use of this 3.5. Manufacturer’s Address information that is applied to other products. 3.6. -
Page 3: Introduction
In the event of non-compliance with the safety instructions set out in samples in between a few seconds and two minutes. this document, Bertin Technologies disclaims all liability for any resulting It has a patented automatic tube locking system that uses a vacuum damage to property or physical injury. -
Page 4: Recap Of The Directions For Use
For the Precellys® 24 Touch to work properly, it is strongly recommended to use the grinding tubes supplied by Bertin Technologies and keep within the - Do not plug the device back in until it has been operating limits defined for each grinding kit. -
Page 5: Description Of The Precellys® 24 Touch
3.1.3 Description of the equipment Do not immerse the device Bertin Technologies shall be exempt from any claim for compensation for any damage to property or physical injury resulting from a non-compliance with the safety instructions set out in this document. - Page 6 USER MANUAL PRECELLYS 24 Touch ® Blocking plate: keeps the lysis tubes inserted in the tube 3.1.3 Description of the equipment holder. Tubes: tubes containing the samples. Tube holder: holds the lysis tubes. Containment seal: seals the Precellys® 24 Touch. Air inlet: diffuses the air in the Precellys®...
- Page 7 USER MANUAL PRECELLYS 24 Touch ® Duration of the period: 5 to 90 s in increments of 1 second 3.1.4.3 Setting up the cycles of the Precellys® 24 Touch Time delay between 2 periods: 5 to 120 s in increments of 1 The Precellys®...
-
Page 8: Characteristics
2x – 5x20 – T 6.3A – L 250 Warranty Safety Class I device Physical characteristics Bertin Technologies warrants that the equipment is free of defects when it is shipped. Width 287 mm This warranty is limited to a period of one (1) year and does not include... -
Page 9: Standardisation Requirements
USER MANUAL PRECELLYS 24 Touch ® Standardisation requirements TRANSPORT AND STORAGE This equipment complies with CE marking requirements. Transport Avoid violent shocks which could make the device not work properly. Do the following each time you transport the device: 1- Reposition the tube holder locking foam 2- Close the lid 3- Use the items from the original packaging. -
Page 10: Installation And Connection
USER MANUAL PRECELLYS 24 Touch ® 2. Carefully remove the Precellys® 24 Touch from its box and place it on a Installation and connection clean, horizontal and stable work surface (weight of the device = 23 kg): the height of the 4 feet can be adjusted in order to make the equipment 1. -
Page 11: Instructions
The samples must be prepared in the lysing kits recommended by Bertin Technologies listed on the www.bertin-technologies.com website. Only the lysing kits recommended by Bertin Technologies should be used. Using any other accessories may reduce the level of protection provided by the device. Page... -
Page 12: Alarms
Operating limits of the grinding kits The blocking plate is damaged. Replace the blocking plate The lysing kits offered by Bertin Technologies must be used within the operating limits indicated on the www.bertin-instruments.fr website The vacuum seal is damaged. Replace the vacuum seal. -
Page 13: Cleaning And Disinfection
(see appendix 1). If one of these faults persists, contact the technical team. If there is no duly completed return slip, the equipment cannot be processed by the Bertin Technologies’ After-Sales Service. CLEANING AND DISINFECTION Replacing the power cord:... -
Page 14: Problems Encountered
Replacing wear parts Problems encountered This paragraph specifies the maintenance that users must perform on a regular basis to ensure that the Precellys® 24 Touch works properly and that Encountered problem Possible cause(s) Remedial measures the tubes are maintained during the homogenisation phase: 1. - Page 15 9.3.1 Replacing the vacuum seal Remove the fuse holder by pinching the retaining clips. The vacuum seal on the tube holder wears out during operation. It is recommended to change it when the «Pressure error» alarm appears permanently or recurrently. As a preventive measure, this seal should be replaced at least once every 6 months.
-
Page 16: Support
The equipment, its spare parts and its consumables are to be sorted and recycled in accordance with the directive on waste electrical and electro- nic equipment (WEEE) 2012/19/EU. Bertin Technologies is responsible for processing WEEE for its products sold in France (via RECYLUM). For other countries, the importer is responsible for waste processing. -
Page 17: Precellys® Returns
11.1 Precellys® returns Given its mass, the device should preferably be Should you wish to return a Precellys, contact your local distributor. handled by two operators. 11.2.1 Preparing the Precellys® 24 Touch 11.2.3 Packing 1. Open the lid and place the 2. - Page 18 MANUEL UTILISATEUR PRECELLYS 24 Touch ® NOTES NOTES Page Page...
- Page 19 MANUEL UTILISATEUR PRECELLYS 24 Touch ® NOTES NOTES Page Page...
- Page 20 Precellys Minilys Cryolys Precellys Lysing Kits Evolution Touch The Individual The Cooling Unit More than 1000 scientific protocols and data on the application center Join the Precellys community now! Bertin Technologies 10 bis, avenue Ampère, 78180 Montigny-le-Bretonneux, France www.bertin-technologies.com...
