Parts List; 24" Wood Crated Fan Pn 14843 And 24" Galvanized Crated Fan Pn 27495 - Chore-Time 14843 Installation & Operator's Instruction Manual

Parts List

Parts List
6
8
7
2
4
10
*NOTE: 27495 Galvanized Crated Fan Assembly is shown. 14843 (wood) Crated Fan Assembly is similar
except that the shroud is enclosed by a plywood crate instead of galvanized steel.
**The Suspension Kit and Shutter are optional and must be ordered separately.
10

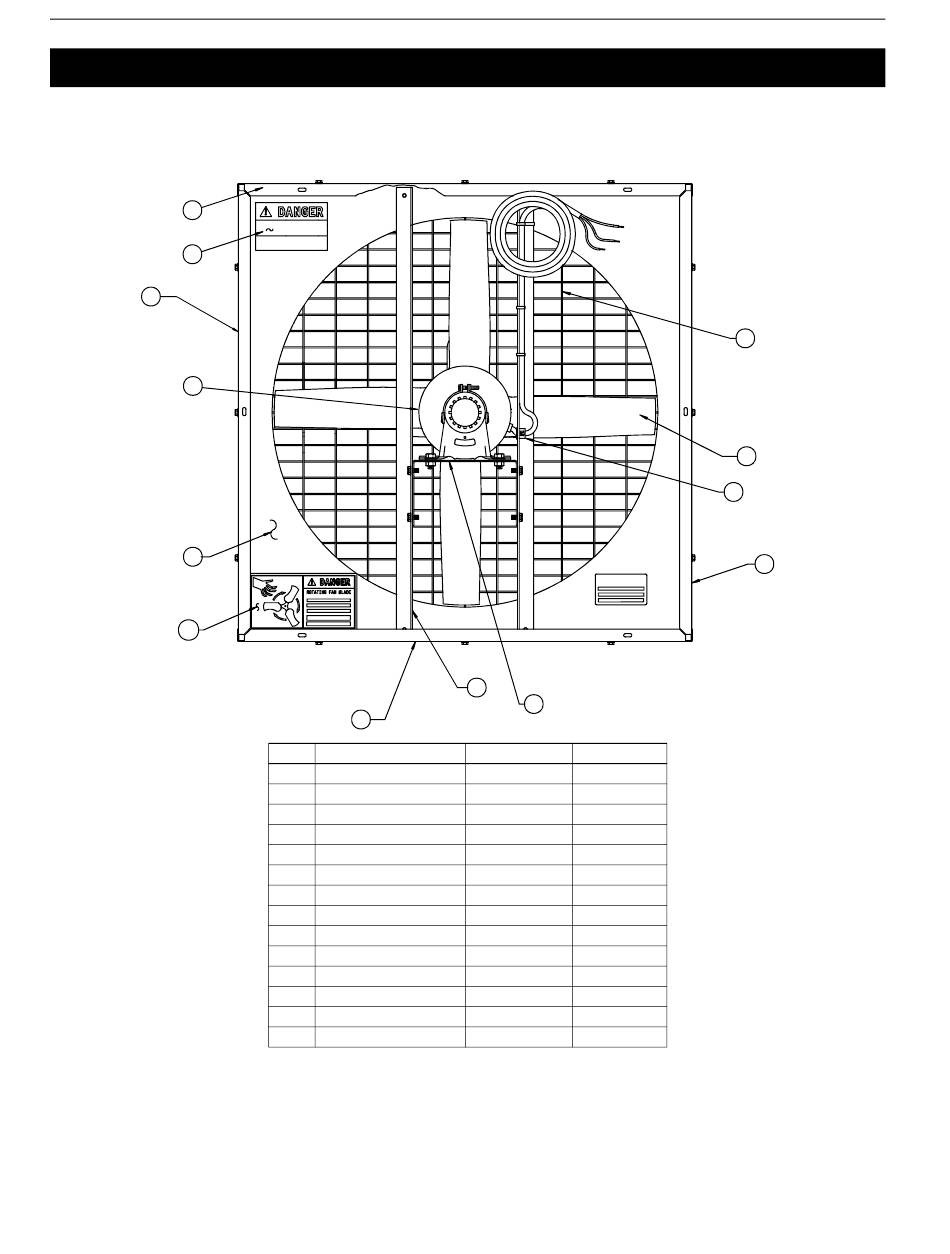

24" Wood Crated Fan PN 14843
24" Galvanized Crated Fan PN 27495
6
Item Description
1 Fan Blade
2 1/3 H.P. Motor
3 Post
4 24" Shroud
5 Wire Screen
6 Top and Bottom Panel - - - -
7 Side Panel
8 Danger Decal
9 Post Bracket
10 Danger Decal
11 Snap Bushing
--** Suspension Kit
--** Shutter
24" Crated and Galvanized Crated Fan
MV903-11 10/99
3
9
14843* 27495*
Part No. Part No.
40277 40277
3005 3005
27825 27825
5544 5544
6023-27 6023-21
27328
- - - - 27368
2527-11 2527-11
27826 27826
2527-50 2527-50
28479 28479
13123 13123
24119 24119
5
1
11
7
MV903E
