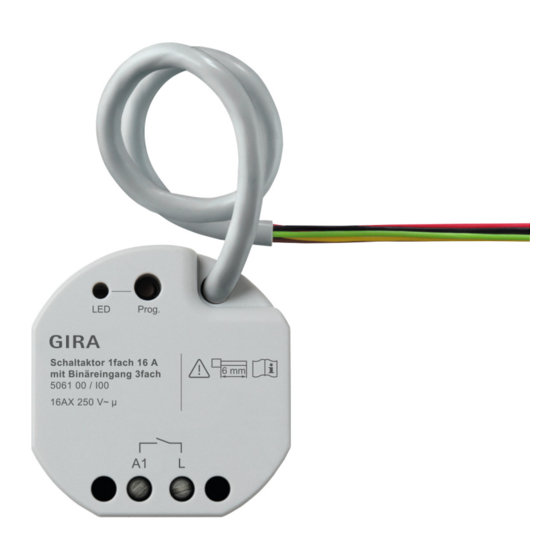

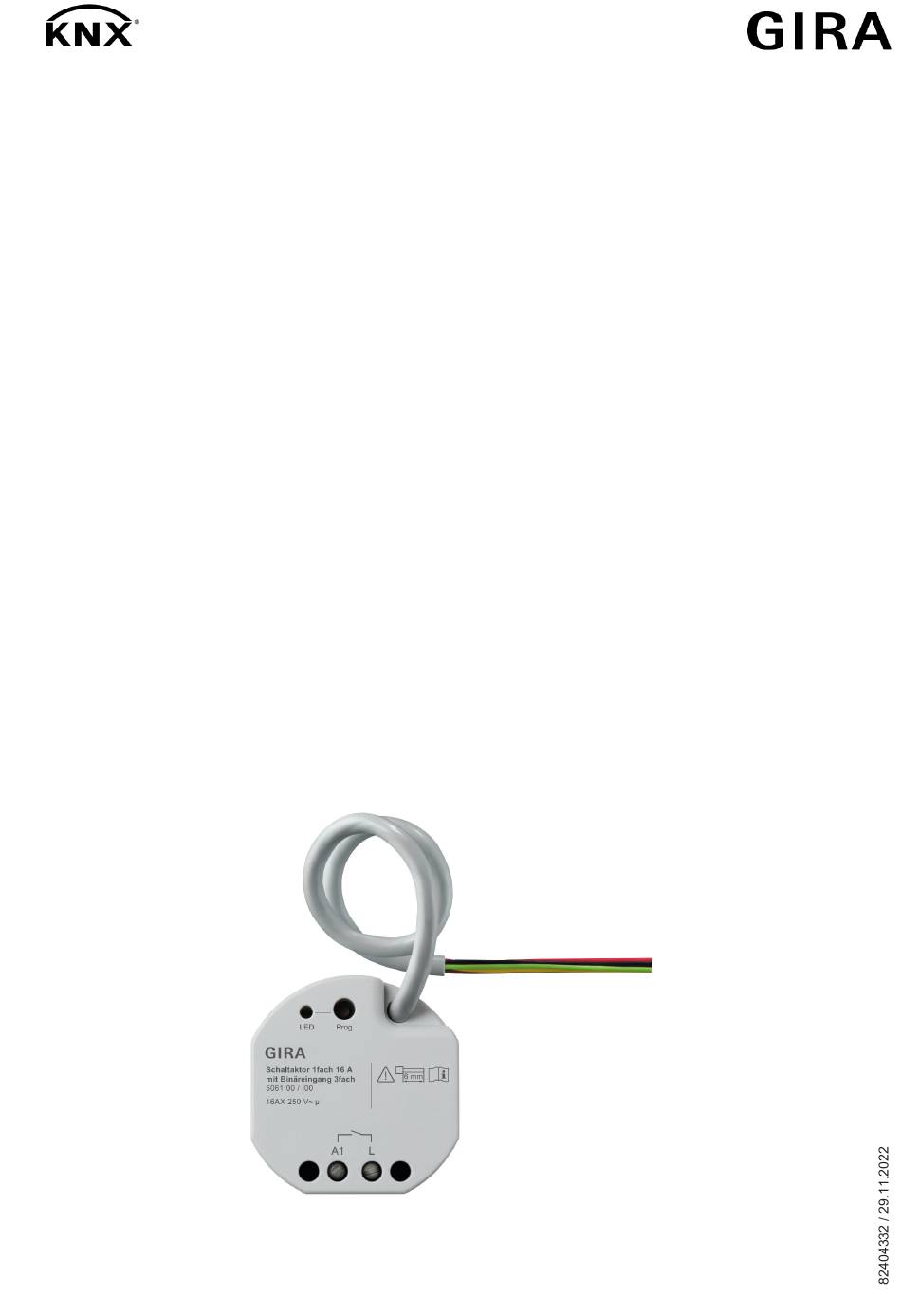

- Page 1 Operating instructions Switching actuator, 1-gang 16 A with binary input, 3-gang Order no. 5061 00...
-
Page 2: Table Of Contents
Switching actuator, 1-gang 16 A with binary input, 3-gang Table of Contents Safety instructions ...................... 3 Device components...................... 3 Function .......................... 4 Information for electrically skilled persons ................ 6 Mounting and electrical connection................ 6 Commissioning ...................... 8 Technical data ......................... 10 Accessories ........................ 11 Warranty.......................... 11 82404332 29.11.2022 2 / 12... -
Page 3: Safety Instructions
Switching actuator, 1-gang 16 A with binary input, 3-gang Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock. Device is not suitable for disconnection from supply voltage. -
Page 4: Function
The device can be updated. Firmware can be easily updated with the Gira ETS Ser- vice App (additional software). The device is KNX Data Secure capable. KNX Data Secure offers protection against manipulation in building automation and can be configured in the ETS project. - Page 5 NTC temperature sensor can be connected to input 3. – Supply via KNX, no additional power supply necessary – KNX Data Secure compatible – Updatable with Gira ETS Service App Characteristics switch operation – Operation as NO or NC contacts – Feedback function –...
-
Page 6: Information For Electrically Skilled Persons
Switching actuator, 1-gang 16 A with binary input, 3-gang – Comparator – Limit value switch Information for electrically skilled persons DANGER! Mortal danger of electric shock. Disconnect the device. Cover up live parts. Mounting and electrical connection DANGER! When connecting the bus/extensions and mains voltage wires in a shared appliance box, the KNX bus line may come into contact with the mains voltage. - Page 7 Switching actuator, 1-gang 16 A with binary input, 3-gang Image 3: Mounting example in electronic appliance box with partition wall, series push-button and NTC temperature sensor Appliance box Partition potential-free contacts (e.g. series push-button) NTC temperature sensor (optional) Image 4: Cable spacing Minimum spacing between the mains voltage and bus/extension wires: 4 mm (see figure 4) Image 5: Connection of load...
-
Page 8: Commissioning
Switching actuator, 1-gang 16 A with binary input, 3-gang Observe ambient temperature. Ensure adequate cooling. ￭ Connect the device to KNX with the correct polarity. ￭ Connect load as shown in the connection example (see figure 5). ￭ If required, connect potential-free contacts or condensation/leakage sensors to inputs 1...3, or NTC temperature sensors to input 3 (see figure 2). - Page 9 5 s. Restoring the device to factory settings Devices can be reset to factory settings with the Gira ETS Service App. This function uses the firmware contained in the device that was active at the time of delivery (de- livered state).
-
Page 10: Technical Data
Switching actuator, 1-gang 16 A with binary input, 3-gang Technical data KNX medium TP256 Commissioning mode S-mode Rated voltage KNX DC 21 ... 32 V SELV Current consumption KNX 5 ... 18 mA Connection mode KNX Device connection terminal on control cable Outputs Connection mode... -
Page 11: Accessories
Please submit or send faulty devices postage paid together with an error de- scription to your responsible salesperson (specialist trade/installation company/elec- trical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG... - Page 12 Switching actuator, 1-gang 16 A with binary input, 3-gang info@gira.de 82404332 29.11.2022 12 / 12...
