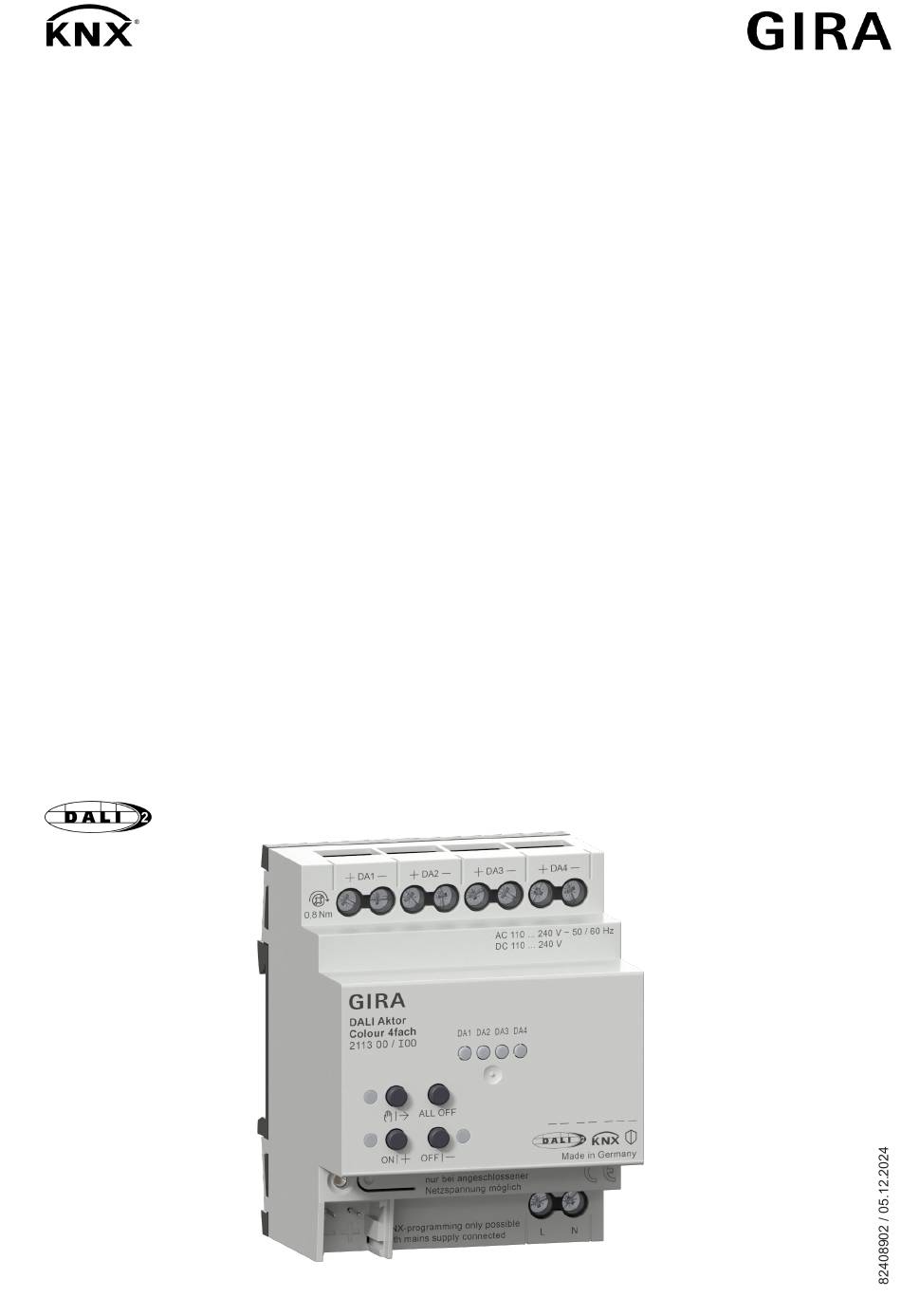

- Page 1 Operating instructions DALI actuator Colour, 4-gang Order no. 2113 00 Product image non-binding...
-
Page 2: Table Of Contents
DALI actuator Colour, 4-gang Table of contents Safety instructions ...................... 3 Device components ...................... 3 System information ...................... 4 Intended use ........................ 4 Product characteristics ..................... 4 Operation .......................... 5 Information for electrically skilled persons ................ 7 Mounting and electrical connection................ 7 Commissioning ...................... -
Page 3: Safety Instructions
DALI actuator Colour, 4-gang Safety instructions Electrical devices may be mounted and connected only by electrically skilled persons. Serious injuries, fire or property damage are possible. Please read and follow the manual fully. Danger of electric shock. Always disconnect before carrying out work on the device or load. -
Page 4: System Information
The device can be updated. Firmware can be easily updated with the Gira ETS Ser- vice App (additional software). -
Page 5: Operation
DALI actuator Colour, 4-gang – Control of up to 128 DALI devices in 4 DALI systems – Broadcast control of each of the four DALI systems – Setting the colour temperature or light colour (RGB, RGBW) for luminaires with DALI Device Type 8 in accordance with IEC 62386-209 –... - Page 6 DALI actuator Colour, 4-gang Switching on/off the permanent manual mode Operation using the button field is programmed and not disabled. ￭ Press the ǃ (1) button for at least 5 seconds. LED ǃ (2) lights up, LED (12) of the first DALI system flashes. Permanent manual operation is switched on.
-
Page 7: Information For Electrically Skilled Persons
DALI actuator Colour, 4-gang DALI systems blocked via manual operation can be operated in manual mode. Information for electrically skilled persons Mounting and electrical connection DANGER! Electric shock when live parts are touched. Electric shocks can be fatal. Always disconnect before carrying out work on the device or load. To do so, switch off all corresponding circuit breakers, secure them against being switched on again and check that there is no voltage. -
Page 8: Commissioning
DALI actuator Colour, 4-gang Figure 2: Connection example ￭ Connect device as shown in the connection example (see figure 2). The mains voltage supply can also be provided by the DC voltage of an emer- gency lighting system. The four DALI systems are supplied with power exclusively via the DALI actu- ator. - Page 9 DALI actuator Colour, 4-gang Voltage check: When the programming button is pressed, the red program- ming LED must light up. ￭ Configure and program the physical address with the help of the ETS. ￭ Download the application program using the ETS. The DALI actuator initialises all connected DALI operating devices and sets the DALI parameters (power ON level, system failure level ...) according to the ETS programming.
- Page 10 5 s. Restoring the device to factory settings The device can be reset to factory settings with the Gira ETS Service App. This func- tion uses the firmware contained in the device that was active at the time of delivery (delivered state).
-
Page 11: Technical Data
DALI actuator Colour, 4-gang Technical data KNX medium TP 256 KNX commissioning mode S mode Rated voltage KNX DC 21 ... 32 V SELV Current consumption KNX 3 ... 4 mA Connection type for bus Device connection terminal Supply Rated voltage AC 110 ... -
Page 12: Troubleshooting
DALI actuator Colour, 4-gang Storage temperature -5 ... +45 °C Transport temperature -25 ... +70 °C Clampable cable cross-sections (see figure 4) Figure 4: Clampable cable cross-sections Installation width 72 mm / 4 HP Terminals Connection mode Screw terminal Stripping length 8 mm Suitable tool Phillips screwdriver (recommended) -
Page 13: Warranty
Please submit or send faulty devices postage paid together with a fault de- scription to your responsible salesperson (specialist trade / installation company / electrical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG...
