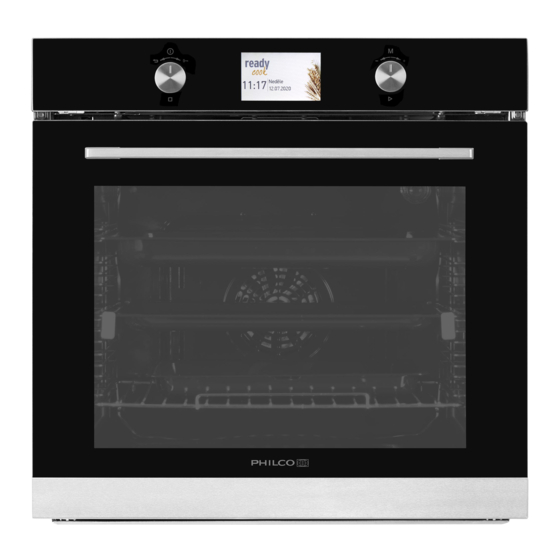

Built-in Oven
OWNER'S MANUAL
POB 7810 CBX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POB 7810 CBX and is the answer not in the manual?

Questions and answers

Related Manuals for Philco POB 7810 CBX

Summary of Contents for Philco POB 7810 CBX

  • Page 1 Built-in Oven OWNER’S MANUAL POB 7810 CBX...
  • Page 2 IMPORTANT / NOTE Operating the system correctly Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user’s manual. Copyright © 2020, Fast ČR, a. s.

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS ..........................2 1.1 General Safety Warnings................................2 1.2 Installation Warnings ................................. 4 1.3 During Use ..................................... 5 1.4 During Cleaning and Maintenance ............................6 2. INSTALLATION AND PREPARATION FOR USE ....................8 2.1 Installation instructions ................................8 2.2 Installation of the Oven ................................8 2.3 Electrical Connection and Safety ............................10 3.

  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual. 1.1 General Safety Warnings • This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental...
  • Page 5 • Handles may get hot after a short period during use. • Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces. • Do not use steam cleaners for cleaning the appliance. WARNING: To avoid the possibility of electric shock, make sure that the appliance is switched off before replacing the lamp. CAUTION: Accessible parts may be hot when cooking or grilling.

  • Page 6: Installation Warnings

    • Do not use the oven door handles to lift or move the appliance. • All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories. • Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.

  • Page 7: During Use

    1.3 During Use • When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that, before using your oven for the first time, you leave it empty and set it at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.

  • Page 8: During Cleaning And Maintenance

    • Do not hang towels, dishcloths or clothes from the appliance or its handles. 1.4 During Cleaning and Maintenance • Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations. • Do not remove the control knobs to clean the control panel. • To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents in case of need. CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and...
  • Page 9 Disposal of your old machineThis This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be...

  • Page 10: Installation And Preparation For Use

    2. INSTALLATION AND PREPARATION FOR USE WARNING: This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations. • Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid. • Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency) and the adjustments of the appliance are compatible.
  • Page 11 Installation under a worktop Installation in a wall unit EN - 9 Copyright © 2020, Fast ČR, a. s. Revision 02/2020...

  • Page 12: Electrical Connection And Safety

    After making the electrical connections, insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws. 2.3 Electrical Connection and Safety WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the...

  • Page 13: Product Features

    3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Control Panel 2. Oven Door Handle 3. Oven Door Control Panel 1. Control knob 2. LCD display 3.

  • Page 14: Use Of Product

    4. USE OF PRODUCT 4.1 Oven Controls Left knob • Long push: Switch on / off • Short push: Pause cooking • Turn right: Key lock • Turn left: Undo / Go to previous menu Right knob • Push: Select / Start cooking • Turn right: Menu navigation / Increase temperature • Turn left: Menu navigation / Decrease temperature Oven Functions * The functions of your oven may be different due to the model of your product. Oven Lamp: Only the oven light will switch on.
  • Page 15 Fan-assisted roasting: The oven’s thermostat and warning lights will switch on, and the upper and lower heating elements and fan will start operating. This function is good for baking pastry. Cooking is carried out by the lower and upper heating elements within the oven and by the fan, which provides air circulation, giving a slightly grilled effect to the food.

  • Page 16: Cooking Table

    Vap Clean Function: Set the oven function and thermostat to the Vap Clean function symbol. Pour 200-250ml of water (about 1 cup) into the small tray on the oven base. Vap Clean runs for approximately 20 minutes and will prepare your oven so that it can be easily cleaned. 4.2 Cooking Table Dishes Puff Pastry 2-3-4 170-190...
  • Page 17 Settings The settings menu allows you to change and set the date, time, screen brightness, buzzer tone, and language option. The main menu • Rotate the right knob in either direction until ‚ Settings‘ is highlighted. • Press the right knob to select the highlighted option. The languages menu • Rotate the right knob in either direction to change the language. • Press the right knob to set the desired language. The brightness menu • Rotate the right knob in either direction to change the screen brightness between the levels 0 and 4. • Press the right knob to set the screen brightness.
  • Page 18 The date menu • Rotate the right knob in either direction to change the date. • Press the right knob to set the date. • The date is set in the format: month, day, year. The clock menu • Rotate the right knob in either direction to change the clock. • Push the right knob to set the clock. • Clock is set in the format: minute and hour. On the buzzer tone menu • Rotate the right knob in either direction to choose from 3 different buzzer tones. • Press the right knob to set the desired buzzer tone. EN - 16 Copyright © 2020, Fast ČR, a. s. Revision 02/2020...
  • Page 19 The software version menu • The software version will be displayed as information only. It cannot be changed. Key lock The key lock is used to avoid unintentional changes being made to the oven settings. To activate or deactivate the key lock, rotate the left knob anti-clockwise and hold it for 3 seconds. While the key lock is active, only the “ON/OFF”...
  • Page 20 Manual cooking You can adjust every cooking setting in Manual Cooking mode, including the 7 different cooking functions, the temperature, the boost function, the cooking duration, and the cooking end time. Follow the steps listed below to navigate the Manual Cooking menu. The main menu • Rotate the right knob in either direction until “Manual Cooking” is highlighted. • Press the right knob to select the highlighted option. Oven function • Rotate the right knob in either direction to navigate between the available oven functions. • Press the right knob to select the highlighted option.
  • Page 21 Increased power - BOOSTER • Rotate the right knob in either direction to highlight Boost “ON” or “OFF”. • Press the right knob to select the highlighted option. • Use this function to heat the oven the desired temperature as quickly as possible. This mode is not appropriate for cooking. Roasting (cooking) duration • To change the roasting (cooking) duration, turn the right control knob in any direction. • To set the roasting (cooking) duration, press the right control knob. • NOTE: When the roasting (cooking) duration is set to 00:00, roasting will continue until you stop it manually.
  • Page 22 The information screen • Cooking will begin within 10 seconds of the last action, or when the right knob is pressed. • Rotate the left knob anti-clockwise to go back to the previous setting. The animation screen displays: • Cooking time • Temperature • Cooking start and end time • Information regarding the roasting function and possible change of roasting parameters EN - 20 Copyright © 2020, Fast ČR, a. s. Revision 02/2020...
  • Page 23 The animation screen • Press the left knob to stop cooking. • Press the right knob to start / continue cooking. • Rotate the right knob in either direction to change the temperature. • Rotate the left knob anti-clockwise, while any cooking function is active, to display the oven function, temperature, and cooking time setting screen. • To stop cooking and return to the main menu, press the left knob then rotate it anti-clockwise. Auto Cooking The “ Ready Cook” function has predefined recipes that can be selected from the automatic roasting menu. You will only be able to select the name of the desired meal.
  • Page 24 The main menu • Rotate the right knob in either direction until “Automatic cooking (roasting)” is highlighted. • Press the right knob to select the highlighted option. Food categories • Rotate the right knob in either direction to navigate between the available recipes. • Press the right knob to select the highlighted option. Recipe selection • Rotate the right knob in either direction to navigate between the available recipes. • Press the right knob to select the highlighted option. EN - 22 Copyright © 2020, Fast ČR, a. s. Revision 02/2020...
  • Page 25 Food weight • Rotate the right knob in either direction to change the weight value. • Press the right knob to set the weight. Cooking end time • Rotate the right knob in either direction to change the cooking end time. • Press the right knob to set the cooking end time. The information screen • Cooking will start within 10 seconds of no activity, or when the right knob is pressed. • Rotate the left knob anti-clockwise to go back through the previous setting screens. • To achieve the best possible roasting results, place the dish to the highlighted position. EN - 23 Copyright © 2020, Fast ČR, a. s. Revision 02/2020...
  • Page 26 The animation screen • Press the left knob to stop cooking. • Press the right knob to start and continue cooking. • To stop cooking and return to the main menu, press the left knob and rotate it anti-clockwise. Favourites It is possible to save your manual cooking settings, allowing you to quickly select the same cooking settings at any time. At the end of the Manual Cooking menu, after the cooking duration setting, you will be asked whether you want to save the settings to your favourites.
  • Page 27 Favourites • Rotate the right knob in either direction to navigate between the available options. • Press the right knob to select the highlighted option. • The parameters of the favourite program are saved in the bottom section of the display. The run/edit screen • Highlight the “Progress (Run)” option by rotating the right control knob. • Select the “Progress (Run)” option by pressing the right control knob. Cooking end time • Rotate the right knob in either direction to change the cooking end time. • Press the right knob to set the cooking end time. EN - 25 Copyright ©...
  • Page 28 The information screen • Cooking will start within 10 seconds of no activity, or when the right knob is pressed. • Rotate the left knob anti-clockwise to go back through the previous setting screens. • Place food on the middle shelf to achieve the best cooking results. The animation screen • Press the left knob to stop cooking. • Press the right knob to start and continue cooking. • To stop cooking and return to the main menu, press the left knob and rotate it anti-clockwise. To edit any Favourites settings, follow the steps below. The main menu • Rotate the right knob in either direction until “Favourites” is highlighted. • Press the right knob to select the highlighted option. EN - 26 Copyright © 2020, Fast ČR, a. s. Revision 02/2020...
  • Page 29 Favourites • Rotate the right knob in either direction to navigate between the available options. • Press the right knob to select the highlighted option. • The settings stored in the selected ‚ Favourite‘ will be displayed at the bottom of the screen. The run/edit screen • Rotate the right knob to highlight “Edit”. • Press the right knob to select “Edit”. Oven function • Rotate the right knob in either direction to navigate between the available oven functions. • Press the right knob to select the highlighted option. EN - 27 Copyright © 2020, Fast ČR, a. s. Revision 02/2020...
  • Page 30 Temperature • Rotate the right knob in either direction to navigate between the available temperature settings. • Press the right knob to select the highlighted option. Increased power - BOOSTER • Rotate the right knob in either direction to highlight Boost “ON” or “OFF”. • Press the right knob to select the highlighted option. • Use this function to heat the oven the desired temperature as quickly as possible. This mode is not appropriate for cooking. Cooking duration • Rotate the right knob in either direction to change the cooking duration. • Press the right knob to set the cooking duration. EN - 28 Copyright ©...
  • Page 31 Tray position • To switch between the available oven positions, turn the right control knob in any direction. • Select the required position by pressing the right control knob. • The information regarding the specific tray position is important in order to achieve even roasting results. The information screen • Rotate the left knob anti-clockwise to go back through the previous setting screens. Save to favourites • Rotate the right knob to highlight “Save” (to save the settings) or “Cancel” (to discard the settings). • Press the right knob to select the highlighted option. EN - 29 Copyright © 2020, Fast ČR, a. s. Revision 02/2020...
  • Page 32 Cleaning With the Vapclean function, dried residue within the oven will be softened with vapour. To perform Vapclean, pour a glass of water onto the oven shelf at the bottom of the oven, then follow the steps listed below. On the main menu • Rotate the right knob in either direction until “Cleaning” is highlighted. • Press the right knob to select the highlighted option. The function selection screen • Press the right knob to select “Vapclean”. Cleaning duration • Rotate the right knob in either direction to change the cleaning duration.
  • Page 33 Cleaning end time • Rotate the right knob in either direction to change the cleaning end time. • Press the right knob to set the cleaning end time. The information screen • Cleaning will start within 10 seconds of no activity, or when the right knob is pushed. • Rotate the left knob anti-clockwise to go back through the previous setting screens. The animation screen • Press the left knob to stop cleaning. • Press the right knob to start and continue cleaning. • To stop cleaning and return to the main menu, press the left knob and rotate it anti-clockwise. EN - 31 Copyright © 2020, Fast ČR, a. s. Revision 02/2020...

  • Page 34: Accessories

    4.4 Accessories The EasyFix Wire Rack Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use. • Insert the accessory to the correct position inside the oven. • Allow at least a 1 cm space between the fan cover and accessories. • Take care removing cookware and/or accessories out of the oven. Hot meals or accessories can cause burns. • The accessories may deform with heat. Once they have cooled down, they will recover their original appearance and performance.
  • Page 35 **** Accessories may vary depending on the model purchased. The Deep Tray The deep tray is best used for cooking stews. Put the tray into any rack and push it to the end to make sure it is placed correctly. FIRST IN THE WORLD Hot Air Shield System in Built-in Ovens The patented hot air shield system prevents hot air from reaching the end user by creating an air curtain when the oven door is opened.
  • Page 36 Placing the meat probe • Place the probe before roasting begins. • Insert the probe into the side of the roast so that the point reaches its centre. • Insert the entire probe, up to the handle. • We recommend that you turn the roast over half-way through cooking. Bear this in mind when placing the probe to avoid problems with it later. • The point of the probe must not be touching a bone or fatty areas of the joint. Also, it should not be in a hollow area, which could happen with poultry. • Put the roast with the probe already in it into the oven. • Plug the probe into the socket in the upper left side of the oven. Using the Meat Probe with the Timer Plug the probe into the socket in the upper left side of the oven, the Meat Probe symbol and “AUTO” will appear on the display.
  • Page 37 Wire Rack with Easyfix Full Extension Telescopic Rail The telescopic rail extends out fully to allow easy access to your food. Telescopic rails Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use. Fastening Fastener • Positioning of the telescopic rails on the wire rack is secured with the fastening tabs on the fasteners.
  • Page 38 The Telescopic Wire Grid The Telescopic wire grid is best used for grilling or for processing food in ovenfriendly containers. WARNING: Be sure to place the telescopic wire grid on the rail arms, between the rail stopers shown in figure. Rail stopers The number of wire racks changes depening on the model of your product. The Wire Grid The wire grid is best used for grilling or for processing food in oven-friendly containers.
  • Page 39 Soft-Close Oven Door The oven door closes slowly by itself when it is released just before the closed position. The Water Collector In some cases of cooking, condensation may appear on the inner glass of the oven door. This is not a product malfunction.

  • Page 40: Cleaning And Maintenance

    5. CLEANING AND MAINTENANCE 5.1 Cleaning WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out. General Instructions • Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance. • Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces. Do not use cleaners that contain particles as they may scratch the glass, enamelled and/or painted parts of your appliance.
  • Page 41 Removal of the Inner Glass You must remove the oven door glass before cleaning, as shown below. 1. Push the glass in the direction of B and release from the location bracket (x). Pull the glass out in the direction of A. To replace the inner glass: 2. Push the glass towards and under the location bracket (y), in the direction of B. 3. Place the glass under the location bracket (x) in the direction of C. If the oven door is a triple glass oven door, the third glass layer can be removed the same way as the second glass layer.
  • Page 42 Removal of the Oven Door Before cleaning the oven door glass, you must remove the oven door, as shown below. 1. Open the oven door. 2. Open the locking catch (a) (with the aid of a screwdriver) up to the end position. 3. Close the door until it is almost in the fully closed position, and remove the door by pulling it towards you. Removal of the Wire Shelf To remove the wire rack, pull the wire rack as shown in the figure.

  • Page 43: Maintenance

    5.2 Maintenance WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified technician only. Changing the Oven Lamp WARNING: Switch off the appliance and allow it to cool before cleaning your appliance. • Remove the glass lens, then remove the bulb. • Insert the new bulb (resistant to 300 °C) to replace the bulb that you removed (230 V, 15-25 Watt, Type E14).

  • Page 44: Troubleshooting & Transport

    6. TROUBLESHOOTING & TRANSPORT 6.1 Troubleshooting If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Oven does not switch on. Power is switched off. Check whether there is power supplied.

  • Page 45: Technical Specifications

    7. TECHNICAL SPECIFICATIONS DATA SHEET: Philco Philco trademark: Brand PHILCO Model POB 7810 CBX Type of Oven ELECTRIC Mass 33,2 Energy Efficiency Index - conventional 106,0 Energy Efficiency Index - fan forced 94,6 Energy Class Energy consumption (electricity) - conventional kWh/cycle 0,93 Energy consumption (electricity) - fan forced kWh/cycle 0,83 Number of cavities...
  • Page 46 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical &...
  • Page 47 Manufacturer/Importer: Fast ČR, a.s. Praha 10, Černokostelecká 2111 CZ-10000; CZECH REPUBLIC is a registered trademark used under license from SK - 45 Electrolux Home Products., Inc. Copyright © 2020, Fast ČR, a. s. Revízia 02/2020...
