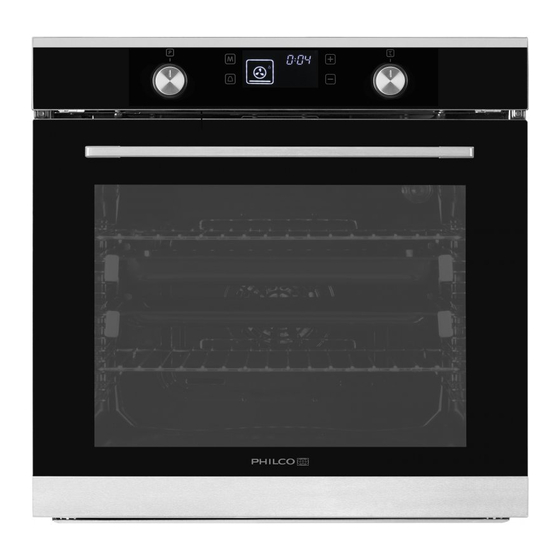

Built-in Oven
OWNER'S MANUAL
POB 789 BX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POB 789 BX and is the answer not in the manual?

Questions and answers

Related Manuals for Philco POB 789 BX

Summary of Contents for Philco POB 789 BX

  • Page 1 Built-in Oven OWNER’S MANUAL POB 789 BX...
  • Page 2 IMPORTANT / NOTE Operating the system correctly Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user’s manual. Copyright © 2020, Fast ČR, a. s.

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS ..........................2 1.1 General Safety Warnings................................2 1.2 Installation Warnings ................................. 4 1.3 During Use ..................................... 5 1.4 During Cleaning and Maintenance ............................6 2. INSTALLATION AND PREPARATION FOR USE ....................8 2.1 Installation instructions ................................8 2.2 Installation of the Oven ................................8 2.3 Electrical Connection and Safety ............................10 3.

  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual. 1.1 General Safety Warnings • This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental...
  • Page 5 • Handles may get hot after a short period during use. • Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces. • Do not use steam cleaners for cleaning the appliance. WARNING: To avoid the possibility of electric shock, make sure that the appliance is switched off before replacing the lamp. CAUTION: Accessible parts may be hot when cooking or grilling.

  • Page 6: Installation Warnings

    • Do not use the oven door handles to lift or move the appliance. • All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories. • Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.

  • Page 7: During Use

    1.3 During Use • When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that, before using your oven for the first time, you leave it empty and set it at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.

  • Page 8: During Cleaning And Maintenance

    • Do not hang towels, dishcloths or clothes from the appliance or its handles. 1.4 During Cleaning and Maintenance • Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations. • Do not remove the control knobs to clean the control panel. • To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents in case of need. CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and...
  • Page 9 Disposal of your old machineThis This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be...

  • Page 10: Installation And Preparation For Use

    2. INSTALLATION AND PREPARATION FOR USE WARNING: This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations. • Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid. • Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency) and the adjustments of the appliance are compatible.
  • Page 11 Installation under a worktop Installation in a wall unit EN - 9 Copyright © 2020, Fast ČR, a. s. Revision 02/2020...

  • Page 12: Electrical Connection And Safety

    After making the electrical connections, insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws. 2.3 Electrical Connection and Safety WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the...

  • Page 13: Product Features

    3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Control Panel 2. Oven Door Handle 3. Oven Door Control Panel 4. Timer 5. Oven Function Control Knob 6.

  • Page 14: Use Of Product

    4. USE OF PRODUCT 4.1 Oven Controls Oven function control knob Turn the knob to the corresponding symbol of the desired cooking function. For the details of different functions see ´Oven Functions`. Oven thermostat knob After selecting a cooking function, turn this knob to set the desired temperature. The oven thermostat light will illuminate whenever the thermostat is in operation to heat up the oven or maintain the temperature.
  • Page 15 Fan-assisted roasting: The oven’s thermostat and warning lights will switch on, and the upper and lower heating elements and fan will start operating. This function is good for baking pastry. Cooking is carried out by the lower and upper heating elements within the oven and by the fan, which provides air circulation, giving a slightly grilled effect to the food.

  • Page 16: Cooking Table

    4.2 Cooking Table Dishes Puff Pastry 2-3-4 170-190 35-45 Cake 2-3-4 170-190 30-40 Cookie 2-3-4 170-190 30-40 Stew 175-200 40-50 Chicken 2-3-4 45-60 Puff Pastry 2-3-4 170-190 25-35 Cake 2-3-4 150-170 25-35 Cookie 2-3-4 150-170 25-35 Stew 175-200 40-50 Chicken 2-3-4 45-60 Puff Pastry...

  • Page 17: Use Of The Visio Touch Programmer

    4.3 Use of the Visio Touch Programmer Function Description Mode key Alarm key Time setting key Time setting / Temperature settings for meat probe / Key lock key Oven function display Timer display Temperature display Adjusting the Time of Day When the oven is switched on for the first time after installation, „0.00“ will flash on the display. Press the „M“...
  • Page 18 When the timer reaches zero, an audible warning will sound and the „ “ symbol will flash on the screen. Pressing „+“ or „ -“ will stop the audible warning and the symbol will disappear from the screen. Adjusting the Cooking Duration Time This function helps you to cook for a fixed period of time. Prepare the food for cooking and put it in the oven. Then, select the desired cooking function and the temperature.

  • Page 19: Accessories

    4.4 Accessories The EasyFix Wire Rack Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use. • Insert the accessory to the correct position inside the oven. • Allow at least a 1 cm space between the fan cover and accessories. • Take care removing cookware and/or accessories out of the oven. Hot meals or accessories can cause burns. • The accessories may deform with heat. Once they have cooled down, they will recover their original appearance and performance.
  • Page 20 The Shallow Tray The shallow tray is best used for baking pastries. Put the tray into any rack and push it to the end to make sure it is correctly placed. Wire Rack with Easyfix Full Extension Telescopic Rail The telescopic rail extends out fully to allow easy access to your food. Telescopic rails Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use.
  • Page 21 • On each telescopic rail there are top and bottom fasteners that allows you to reposition the rails. • Hang the telescopic rail top fasteners on the side rack level reference wire and simultaneously press the bottom fasteners until you clearly hear the fasteners clip into the side rack level fixing wire. • In order to remove, hold the front surface of the rail and follow the previous instructions in reverse. The Telescopic Wire Grid The Telescopic wire grid is best used for grilling or for processing food in ovenfriendly containers. WARNING Be sure to place the telescopic wire grid on the rail arms, between the rail stopers shown in figure.
  • Page 22 The Wire Grid The wire grid is best used for grilling or for processing food in oven-friendly containers. WARNING Place the grid to any corresponding rack in the oven cavity correctly and push it to the end. Soft-Close Oven Door The oven door closes slowly by itself when it is released just before the closed position.
  • Page 23 The Water Collector In some cases of cooking, condensation may appear on the inner glass of the oven door. This is not a product malfunction. After the roasting is completed, open the oven door to the grilling position and keep it in this position for about 1 minute.

  • Page 24: Cleaning And Maintenance

    5. CLEANING AND MAINTENANCE 5.1 Cleaning WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out. General Instructions • Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance. • Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces. Do not use cleaners that contain particles as they may scratch the glass, enamelled and/or painted parts of your appliance.
  • Page 25 Removal of the Inner Glass You must remove the oven door glass before cleaning, as shown below. 1. Push the glass in the direction of B and release from the location bracket (x). Pull the glass out in the direction of A. To replace the inner glass: 2. Push the glass towards and under the location bracket (y), in the direction of B. 3.
  • Page 26 Removal of the Oven Door Before cleaning the oven door glass, you must remove the oven door, as shown below. 1. Open the oven door. 2. Open the locking catch (a) (with the aid of a screwdriver) up to the end position. 3. Close the door until it is almost in the fully closed position, and remove the door by pulling it towards you. Removal of the Wire Shelf To remove the wire rack, pull the wire rack as shown in the figure.

  • Page 27: Maintenance

    5.2 Maintenance WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified technician only. Changing the Oven Lamp WARNING: SSwitch off the appliance and allow it to cool before cleaning your appliance. • Remove the glass lens, then remove the bulb. • Insert the new bulb (resistant to 300 °C) to replace the bulb that you removed (230 V, 15-25 Watt, Type E14).

  • Page 28: Troubleshooting & Transport

    6. TROUBLESHOOTING & TRANSPORT 6.1 Troubleshooting If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Oven does not switch on. Power is switched off. Check whether there is power supplied.

  • Page 29: Technical Specifications

    7. TECHNICAL SPECIFICATIONS DATA SHEET: Philco Philco trademark: Brand PHILCO Model POB 789 BX Type of Oven ELECTRIC Mass 33,3 Energy Efficiency Index - conventional 106,0 Energy Efficiency Index - fan forced 94,6 Energy Class Energy consumption (electricity) - conventional kWh/cycle 0,93 Energy consumption (electricity) - fan forced kWh/cycle 0,83 Number of cavities...
  • Page 30 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste.
  • Page 31 Manufacturer/Importer: Fast ČR, a.s. Praha 10, Černokostelecká 2111 CZ-10000; CZECH REPUBLIC is a registered trademark used under license from SK - 29 Electrolux Home Products., Inc. Copyright © 2020, Fast ČR, a. s. Revízia 02/2020...
