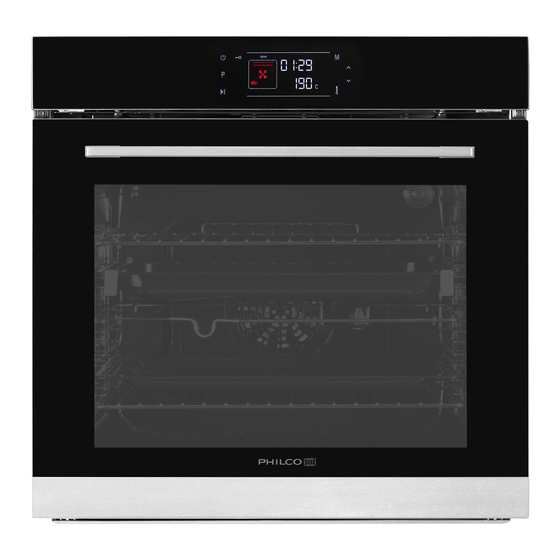

Built-in Oven
OWNER'S MANUAL
POB 789 FBX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POB 789 FBX and is the answer not in the manual?

Questions and answers

Related Manuals for Philco POB 789 FBX

Summary of Contents for Philco POB 789 FBX

  • Page 1 Built-in Oven OWNER’S MANUAL POB 789 FBX...
  • Page 2 IMPORTANT / NOTE Operating the system correctly Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user’s manual. Copyright © 2020, Fast ČR, a. s.

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS ..........................2 1.1 General Safety Warnings................................2 1.2 Installation Warnings ................................. 4 1.3 During Use ..................................... 5 1.4 During Cleaning and Maintenance ............................6 2. INSTALLATION AND PREPARATION FOR USE ....................8 2.1 Installation instructions ................................8 2.2 Installation of the Oven ................................8 2.3 Electrical Connection and Safety ............................10 3.

  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual. 1.1 General Safety Warnings • This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental...
  • Page 5 • Handles may get hot after a short period during use. • Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces. • Do not use steam cleaners for cleaning the appliance. WARNING: To avoid the possibility of electric shock, make sure that the appliance is switched off before replacing the lamp. CAUTION: Accessible parts may be hot when cooking or grilling.

  • Page 6: Installation Warnings

    • Do not use the oven door handles to lift or move the appliance. • All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories. • Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.

  • Page 7: During Use

    1.3 During Use • When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that, before using your oven for the first time, you leave it empty and set it at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.

  • Page 8: During Cleaning And Maintenance

    • Do not hang towels, dishcloths or clothes from the appliance or its handles. 1.4 During Cleaning and Maintenance • Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations. • Do not remove the control knobs to clean the control panel. • To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents in case of need. CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and...
  • Page 9 Disposal of your old machineThis This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be...

  • Page 10: Installation And Preparation For Use

    2. INSTALLATION AND PREPARATION FOR USE WARNING: This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations. • Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid. • Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency) and the adjustments of the appliance are compatible.
  • Page 11 Installation under a worktop Installation in a wall unit EN - 9 Copyright © 2020, Fast ČR, a. s. Revision 02/2020...

  • Page 12: Electrical Connection And Safety

    After making the electrical connections, insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws. 2.3 Electrical Connection and Safety WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the...

  • Page 13: Product Features

    3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Control Panel 2. Oven Door Handle 3. Oven Door Control Panel 4. Timer EN - 11 Copyright © 2020, Fast ČR, a. s. Revision 02/2020...

  • Page 14: Use Of Product

    4. USE OF PRODUCT Oven Functions * The functions of your oven may be different due to the model of your product. Oven Lamp: Only the oven light will switch on. It will remain on for the duration of the cooking function. Defrosting: The oven’s warning lights will switch on and the fan will start operating.
  • Page 15 Pizza: The oven’s thermostat and warning lights will switch on, and the ring, lower heating elements and fan will start operating. This function is ideal for baking food, such as pizza, evenly in a short time. The fan evenly disperses the heat in the oven, while the lower heating element ensures baking of the food.

  • Page 16: Cooking Table

    4.1 Cooking Table Dishes Puff Pastry 170-190 35-45 Cake 170-190 30-40 Cookie 170-190 30-40 Stew 175-200 40-50 Chicken 45-60 Puff Pastry 170-190 25-35 Cake 1-2-3 150-170 25-35 Cookie 1-2-3 150-170 25-35 Stew 175-200 40-50 Chicken 45-60 Puff Pastry 1-2-3 170-190 35-45 Cake 1-2-3 150-170 30-40 Cookie...

  • Page 17: Use Of The Full Touch Control Timer

    4.2 Use of the Full Touch Control Timer The appliance is operated using touch control sensors. The functions are controlled by touching the sensor fields. When you are using the controls, make sure that you touch the sensor field correctly. If your touch is too flat or too small the sensors will not operate correctly. The cooling fan will switch on automatically in order to keep the surfaces of the appliance cool. The fan will continue to run until it automatically switches off, even after the oven has been switched off.
  • Page 18 After the desired function has been selected, and the temperature and time are set, touch the START/STOP sensor to start the oven function operation. Adjusting the Time of Day When the oven has been installed, the time of day must be set according to the following instructions. Turn on the oven by touching the ON/OFF button and hold the M button, until the daily time value starts flashing on the display. Now you can set the current time using the PLUS and MINUS buttons.
  • Page 19 The oven will calculate the operating time by deducting the cooking period from the set finishing time, at which it will stop operating. The timer will give an audible warning and the Cooking End Time symbol will flash. Touching any button on the timer will end the audible warning. Digital Timer Sound Adjustment When you want to change the acoustic signal time while daily time is displayed on the display, press and hold the MINUS button, until TONE is displayed and until the acoustic signal is heard.

  • Page 20: Accessories

    4.3 Accessories The EasyFix Wire Rack Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use. • Insert the accessory to the correct position inside the oven. • Allow at least a 1 cm space between the fan cover and accessories. • Take care removing cookware and/or accessories out of the oven. Hot meals or accessories can cause burns. • The accessories may deform with heat. Once they have cooled down, they will recover their original appearance and performance.
  • Page 21 FIRST IN THE WORLD Hot Air Shield System in Built-in Ovens The patented hot air shield system prevents hot air from reaching the end user by creating an air curtain when the oven door is opened. The Rotisserie 1. Loosen the screws on the skewer clamps (b) and pull them off the spit. Push the spit through the chicken, slide the clamps back on, and stick them into the chicken.
  • Page 22 Important: Make sure the oven is not in operation while performing these steps. Place the grill heat deflector under the control panel if your oven does not support closed-door grilling. The Shallow Tray The shallow tray is best used for baking pastries. Put the tray into any rack and push it to the end to make sure it is correctly placed. Wire Rack with Easyfix Full Extension Telescopic Rai The telescopic rail extends out fully to allow easy access to your food. EN - 20 Copyright ©...
  • Page 23 Telescopic rails Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use. Fastening tab Fastener • Positioning of the telescopic rails on the wire rack is secured with the fastening tabs on the fasteners. • Remove the side runner. See section “Removal of the wire shelf”. • On each telescopic rail there are top and bottom fasteners that allows you to reposition the rails. • Hang the telescopic rail top fasteners on the side rack level reference wire and simultaneously press the bottom fasteners until you clearly hear the fasteners clip into the side rack level fixing wire. • In order to remove, hold the front surface of the rail and follow the previous instructions in reverse.
  • Page 24 Rail stopers The number of wire racks changes depening on the model of your product. The Wire Grid The wire grid is best used for grilling or for processing food in oven-friendly containers. WARNING Place the grid to any corresponding rack in the oven cavity correctly and push it to the end. EN - 22 Copyright © 2020, Fast ČR, a. s. Revision 02/2020...
  • Page 25 Soft-Close Oven Door The oven door closes slowly by itself when it is released just before the closed position. The Water Collector In some cases of cooking, condensation may appear on the inner glass of the oven door. This is not a product malfunction.

  • Page 26: Cleaning And Maintenance

    5. CLEANING AND MAINTENANCE 5.1 Cleaning WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out. General Instructions • Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance. • Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces. Do not use cleaners that contain particles as they may scratch the glass, enamelled and/or painted parts of your appliance.
  • Page 27 Removal of the Inner Glass You must remove the oven door glass before cleaning, as shown below. 1. Push the glass in the direction of B and release from the location bracket (x). Pull the glass out in the direction of A. To replace the inner glass: 2. Push the glass towards and under the location bracket (y), in the direction of B. 3. Place the glass under the location bracket (x) in the direction of C.
  • Page 28 Removal of the Oven Door Before cleaning the oven door glass, you must remove the oven door, as shown below. 1. Open the oven door. 2. Open the locking catch (a) (with the aid of a screwdriver) up to the end position. 3. Close the door until it is almost in the fully closed position, and remove the door by pulling it towards you. Removal of the Wire Shelf To remove the wire rack, pull the wire rack as shown in the figure.

  • Page 29: Maintenance

    5.2 Maintenance WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified technician only. Changing the Oven Lamp WARNING: Switch off the appliance and allow it to cool before cleaning your appliance. • Remove the glass lens, then remove the bulb. • Insert the new bulb (resistant to 300 °C) to replace the bulb that you removed (230 V, 15-25 Watt, Type E14).

  • Page 30: Troubleshooting & Transport

    6. TROUBLESHOOTING & TRANSPORT 6.1 Troubleshooting If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Oven does not switch on. Power is switched off. Check whether there is power supplied.

  • Page 31: Technical Specifications

    7. TECHNICAL SPECIFICATIONS DATA SHEET: Philco Philco trademark: Brand PHILCO Model POB 789 FBX Type of Oven ELECTRIC Mass 35,1 Energy Efficiency Index - conventional 106,0 Energy Efficiency Index - fan forced 94,6 Energy Class Energy consumption (electricity) - conventional kWh/cycle 0,93 Energy consumption (electricity) - fan forced kWh/cycle 0,83 Number of cavities...
  • Page 32 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical &...
  • Page 33 Manufacturer/Importer: Fast ČR, a.s. Praha 10, Černokostelecká 2111 CZ-10000; CZECH REPUBLIC is a registered trademark used under license from SK - 31 Electrolux Home Products., Inc. Copyright © 2020, Fast ČR, a. s. Revízia 02/2020...
