Summary of Contents for Philco POB70

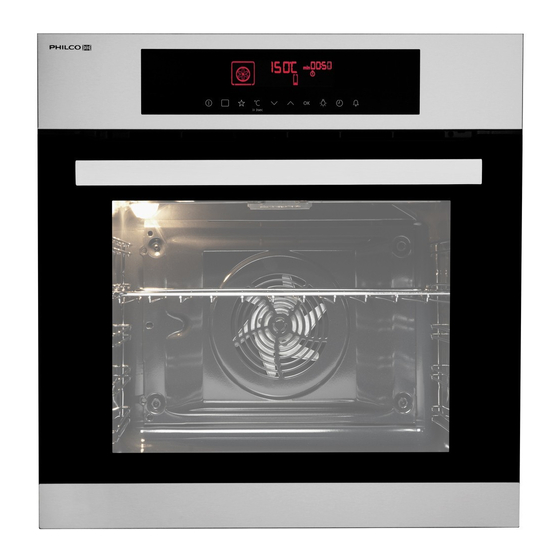

- Page 1 Istruzioni per User manual l’uso Oven Forno POB70...
-
Page 2: Table Of Contents
CONTENTS Safety information Using the accessories Safety instructions Additional functions Product description Helpful hints and tips Before first use Care and cleaning Control panel What to do if… Daily use Technical data Clock functions Installation Automatic programmes Environment concerns Subject to change without notice. SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. -
Page 3: Safety Instructions
• Internally the appliance becomes hot when in operation. Do not touch the heating elements that are in the appliance. Al- ways use oven gloves to remove or put in accessories or ovenware. • Do not use a steam cleaner to clean the appliance. •... -
Page 4: Pliance
• The shock protection of live and insulated • Do not let sparks or open flames to come parts must be fastened in such a way in contact with the appliance when you that it cannot be removed without tools. open the door. -
Page 5: Pliance
perature operation to a well-ventilated Pyrolytic cleaning area. Warning! Risk of Injury / Fires / • Small pets can also be highly sensitive to Chemical Emissions (Fumes) in Pyrolitic the localized temperature changes in the Mode. vicinity of all Pyrolytic Ovens. •... -
Page 6: Product Description
PRODUCT DESCRIPTION Oven lamp Shelf support, removable Rating plate Shelf positions Oven accessories • Wire shelf For cookware, cake tins, roasts. • Baking tray For cakes and biscuits. • Grill- / Roasting pan To bake and roast or as pan to collect fat. -
Page 7: Control Panel
CONTROL PANEL Electronic programmer Use the sensor fields to operate the appli- ance. Sensor Field Function Description DISPLAY Shows the current settings of the appliance. ON / OFF To activate and deactivate the appliance. OPTIONS To set an oven function or an automatic pro- gramme. -
Page 8: Other Indicators In The Display
Display A) Heating function symbol B) Temperature / time display C) Clock / residual heat display (also Mi- nute Minder and Time of Day) D) Residual heat indicator E) Indicators for the clock functions (refer to the table "Clock functions") F) Heat-up indicator G) Number of a heating function / pro- gramme... -
Page 9: Setting The Oven Function
Oven function Application Pizza Setting To bake food on one shelf position for a more intensive browning and a crispy bottom. When you use this function, decrease the oven temperature by 20 - 40 °C from the standard temperatures you use for Conventional Cooking. Slow Cook To prepare very lean and tender roasted food. -
Page 10: Fast Heat Up Function
2. Touch ments are deactivated 10% earlier to go back to the set tem- (the lamp and fan continue to op- perature or the display shows it auto- erate). For this feature to operate, matically after five seconds. the cooking time must be longer Fast heat up function than 30 minutes or you must use the clock functions (Duration, End,... -
Page 11: Setting The Duration
You cannot use the Count Up Timer sults of the cooking, and, if necessary, add when Duration or End is set. the END or DURATION time. Setting the SET+GO Setting the DURATION 1. Set an oven function (or programme) 1. Activate the appliance and set an oven and temperature (refer to "Setting the function and temperature. -
Page 12: Automatic Programmes
dot shows which clock function is on in the Clock / residual heat display. AUTOMATIC PROGRAMMES Warning! Refer to the Safety chapters. There are two types of automatic programmes: • Automatic recipes There are 20 automatic programmes and recipes. Use an automatic pro- •... -
Page 13: Using The Accessories
3. Touch During this time you can change the to set the weight pro- gramme. default weight value with The display shows: the cooking time, Touch the duration symbol , a default 6. When the set time ends, an acoustic weight, a unit of measurement (kg, g). -
Page 14: Additional Functions
ADDITIONAL FUNCTIONS My Favourite Programme Function Lock function You can activate the function only when the appliance operates. The Function Lock pre- Use this function to save your favourite vents an accidental change of the oven temperature and time settings for an oven function. -
Page 15: Cooling Fan
Indicator of the setting Description Value to set menu KEY TONE CLICK / BEEP / OFF SET4 SET5 FAULTY TONE ON / OFF SET6 SERVICE MENU SET7 RESTORE SETTINGS YES / NO TIME EXTENSION ON / OFF SET8 1) It is not possible to deactivate the tone of the ON / OFF sensor field. 2) Selected models only You can set the settings menu only 5. -
Page 16: Helpful Hints And Tips
HELPFUL HINTS AND TIPS • The appliance has five shelf levels. Count • If you use two baking trays at the same the shelf levels from the bottom of the time, keep one empty level between appliance floor. them. • The appliance has a special system Cooking meat and fish which circulates the air and constantly re- •... -
Page 17: Bread And Pizza
Conventional Cook- True Fan Cooking TYPE OF Cooking Notes DISH time [min] Shelf posi- Temp Shelf posi- Temp tion [°C] tion [°C] Christmas 90 - 120 In a 20 cm cake cake / Rich fruit mould cake Plum cake 50 - 60 In a bread tin Small cakes - 150 -... - Page 18 Conventional True Fan Cooking Cooking TYPE OF Cooking Notes DISH time [min] Shelf po- Temp Shelf posi- Temp sition [°C] tion [°C] Bread rolls 2 (2 and 4) 25 - 40 6 - 8 rolls in a baking tray Pizza 230 - 230 - 10 - 20...
- Page 19 Conventional True Fan Cooking Cooking TYPE OF Cooking Notes DISH time [min] Shelf po- Temp Shelf posi- Temp sition [°C] tion [°C] Rabbit 60 - 80 Cut in pieces Hare 150 - 200 Cut in pieces Pheasant 90 - 120 Whole FISH Conventional...
- Page 20 Temperature TYPE OF DISH Quantity Shelf position Time [min] [°C] Roast beef or fillet, per cm of thick- 1 or 2 8 - 10 170 - 180 well done ness 1) Preheat the oven. Pork Temperature TYPE OF DISH Quantity Shelf position Time [min] [°C]...
- Page 21 When you use this function, always 2. Put the meat together with the hot cook dishes without a cover. roasting pan into the oven on the wire shelf. 1. Sear the meat in a pan on the hob on a 3.
-
Page 22: Care And Cleaning
Cooking time until Further cooking time PRESERVE Temperature [°C] simmering [min] at 100 °C [min] Mixed pickles 160 – 170 50 – 60 5 – 10 Kohlrabi, peas, aspara- 160 – 170 50 – 60 15 – 20 1) After you deactivate the appliance, leave the preserve in the oven. Drying - True Fan Cooking Cover the oven shelves with baking parch- ment. -
Page 23: Removing The Shelf Supports
Removing the shelf supports 1. Pull the front of the shelf support away from the side wall. 2. Pull the rear end of the shelf support away from the side wall and remove it. During the pyrolytic cleaning the door is Installing the shelf supports locked. -
Page 24: Cleaning The Oven Door
Put a cloth on the bottom of the oven Cleaning the oven door to prevent damage to the oven light The oven door has four glass panels. You and glass cover. can remove the oven door and the internal Always hold the halogen lamp with a glass panels to clean them. - Page 25 3. Close the oven door to the first open- ing position (halfway). Then pull forward and remove the door from its seat. 4. Put the door on a soft cloth on a stable surface. 5. Release the locking system to remove the glass panels.
-
Page 26: Installing The Door And The Glass Panels
7. Carefully lift (step 1) and remove (step 2) the glass panels one by one. Start from the top panel. 8. Clean the glass panels with water and soap. Dry the glass panels carefully. Installing the door and the glass panels When the cleaning is completed, install the glass panels and the oven door. -
Page 27: Technical Data
Problem Possible cause Remedy The appliance does not heat The automatic switch-off is ac- Refer to „Automatic switch-off“. tivated. The appliance does not heat The fuse is released. Make sure that the fuse is the cause of the malfunction. If the fuse releases again and again, contact a qualified electrician. -
Page 28: Electrical Installation
Building In Electrical installation Warning! Only a qualified person must do the electrical installation. The manufacturer is not responsible if you do not follow the safety precau- tions from the chapter "Safety Informa- tion". This appliance is supplied with a main plug min.
