Installation location and position

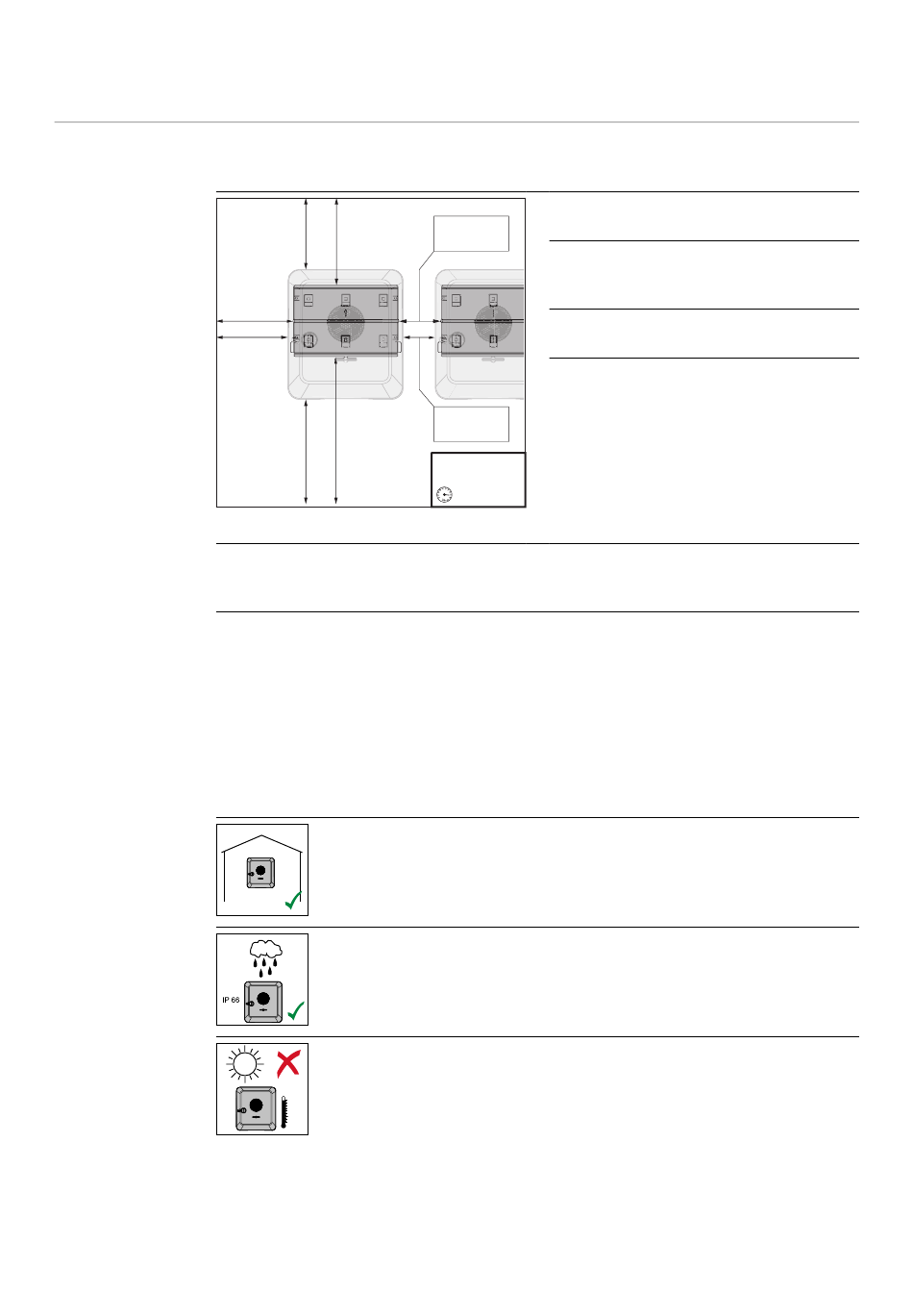

Choosing the Please note the following criteria when choosing a location for the inverter:
location of the
inverter
≥ 225 mm
(≥ 8.86 inch)
≥ 200 mm
(≥ 7.87 inch)
When installing the inverter on the outer walls of cattle sheds, it is important
to maintain a minimum clearance of 2 m between the inverter and the ventila-
tion and building openings on all sides.
The following substrates are permissible for installation:
-
-
-
-
58
≥ 200 mm ≥ 270 mm
(≥ 7.87 inch) (≥ 10.63 inch)
≥ 250 mm ≥ 440 mm
(≥ 9.84 inch) (≥ 17.32 inch)
Walls (corrugated metal walls [mounting rails], brick walls, concrete walls,
or other non-flammable surfaces sufficiently capable of bearing loads)
Mast or support (installed using mounting rails, behind the PV modules
directly on the PV mounting system)
Flat roofs (if installing on a foil roof, make sure that the foils adhere to the
fire protection requirements and are thus not easily flammable. Ensure
compliance with the national provisions.)
Covered car park roofs (no overhead installation)
The inverter is suitable for indoor installation.
The inverter is suitable for outdoor installation.
Due to its protection class IP 66, the inverter is insensitive to
water jets from all directions and can also be used in humid en-
vironments.
In order to minimise the heating up of the inverter, do not ex-
pose it to direct insolation.
Only install on a solid, non-flam-
mable surface.
≥ 150 mm
(≥ 5.91 inch)
Max. ambient temperatures:
-40 °C - +60 °C
-40 °F - +140 °F
Relative humidity:
0-100%
If the inverter is installed in a switch
cabinet or similar enclosed space,
ensure sufficient heat dissipation
≥ 100 mm
with forced-air ventilation.
(≥ 3.94 inch)
-40°C - +60°C
For detailed information on the di-
-40°F - +140°F
mensions of the inverter, see chapter
0 - 100%
Fronius Primo GEN24 3 - 6 kW
page 209.
