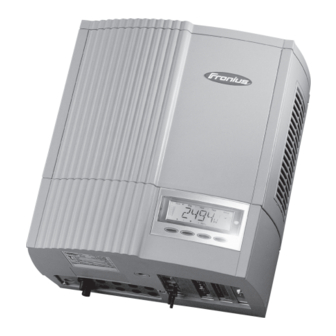

FRONIUS IG
15 / 20 / 30 / 40 / 60 / 60 HV
42,0410,0828
010-29062016
Operating Instructions
Grid-connected inverters for
photovoltaic systems

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IG 15 and is the answer not in the manual?

Questions and answers

Related Manuals for Fronius IG 15

Summary of Contents for Fronius IG 15

  • Page 1 / Battery Charging Systems / Welding Technology / Solar Electronics Operating Instructions FRONIUS IG Grid-connected inverters for 15 / 20 / 30 / 40 / 60 / 60 HV photovoltaic systems 42,0410,0828 010-29062016...
  • Page 3 Read the manual carefully and you will soon be familiar with all the many great features of your new Fronius product. This really is the best way to get the most out of all the advantages that your machine has to offer.

  • Page 5: Safety Rules

    Safety rules DANGER! “DANGER!” indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. This signal word must be limited to the most extreme situations. This signal word is not used for hazards relating to property damage unless there is also a risk of personal injury appropriate to this level.
  • Page 6 General Remarks For information about where the safety instructions and warning signs are (continued) located on the machine, please refer to the section of your machine’s in- struction manual headed “General Remarks”. Any malfunctions which might impair machine safety must be remedied immediately before the machine is switched on.
  • Page 7 Safety Precauti- Ensure when installing machines with cooling-air vents that the cooling air can flow freely ons at the Machi- through the air vents without obstruction. Only operate the machine with the degree of ne Location protection specified on the rating plate. Information on The inverter generates a maximum sound power level of <80 dB(A) (ref.
  • Page 8 Electrical Installa- Electrical installations may only be executed in accordance with the relevant tions national and regional standards and specifications. ESD Protective Danger of damage to electronic components due to electrostatic discharge. Measures Take appropriate protective measures when replacing and installing the components.

  • Page 9: Table Of Contents

    General information ...................... 7 Your roof is your power generator ................. 7 Electricity is converted under the roof ................8 The FRONIUS IG Unit in the Photovoltaic System ............9 General information ...................... 9 Transforming DC into AC electricity ................9 Fully automatic operation management ................
  • Page 10 Choosing the location - outdoor housing..............47 Fixing the wall mounting frame for indoor housing............48 Fixing the wall mounting frame for FRONIUS IG Outdoors ........49 Connection ........................... 52 Connection to the Solar Modules and to the Public Mains ..........52 Solar modules ......................
  • Page 11 Customer service ......................72 Annex ........................... 73 Technical Data ......................... 73 Fronius IG 15 / 20 / 30 ....................73 Fronius IG 40 / 60 / 60 HV ..................74 Our product complies with the following standards and regulations ......75 Warranty and Liability .......................

  • Page 12: Safety Of Persons

    The separately insulation encased power stage shall only be opened when not under voltage and only by Fronius-trained service staff. Galvanic insu- The design and function of the FRONIUS IG unit offer a maximum of safety, lation both during installation as well as in operation. A complete galvanic insulati- on between DC and AC side guarantees maximum safety.

  • Page 13: Photovoltaic Generator

    In case the solar modules exceed a no-load voltage of 500 V - or 530 V for the IG 60 HV - the FRONIUS IG unit will be completely damaged and all warranty rights will cease to exist.

  • Page 14: The Safety Concept

    The Safety Concept Standards and Your FRONIUS IG unit complies with all applicable standards and regula- tions. Regulations They comprise in particular: - Guideline 89/336/EEC electromagnetic compatibility - Guideline 93/68/EEC CE-marking - European standards EN 50 081-1, EN 50 082-2, EN 61 000-3-2 - „Guideline for parallel operation of self-owned photovoltaic generating...

  • Page 15: General Introduction

    General Introduction How a photovoltaic system works General infor- The energy from worldwide insolation amounts to a total of about mation 1,540,000,000,000,000,000 kWh/year (1,540 Peta kWh/year). This is 15.000 times as much as the electricity consumption worldwide. We congratulate you on your decision to actively use world’s biggest energy pool.

  • Page 16: Electricity Is Converted Under The Roof

    The direct current generated in the solar modules can be fed into the converted public mains network or put to home use after having been transformed in under the roof an inverter. This is the basic purpose of your FRONIUS IG unit.

  • Page 17: The Fronius Ig Unit In The Photovoltaic System

    The FRONIUS IG Unit in the Photovoltaic System General infor- Your FRONIUS IG unit is the latest generation of solar inverters. It is the mation highly complex link between solar modules and the public electricity mains network. As such it is in charge of a number of highly qualified tasks.

  • Page 18: Monitoring The Mains Network

    (continued) derably less weight. In spite of its full galvanic insulation, the FRONIUS IG unit achieves a high degree of efficiency, due to its innovative circuit schemes.

  • Page 19: Your Advantage

    Based on our experience and the use of the most innovative technologies, the FRONIUS IG unit is able to manage all these tasks simultaneously. In addition, the FRONIUS IG unit complies with a whole number of requi- rements established for the safety of people and other household ap- pliances, as well for its own safety.

  • Page 20: Product Description

    FRONIUS IG unit fully shuts off the mains connection. - during the night the FRONIUS IG unit does not draw any energy from the public mains - the data and parameters set remain available...
  • Page 21 1/10 of the total duration of the test is over (5) Synchronisation ENS (option) - if the FRONIUS IG unit is equipped with the ENS option, every detail of the ENS will be tested and synchronized - the screen displays „SYNC “...

  • Page 22: Overview For Fronius Ig (For Indoor Housing)

    (5) keyboard (6) slot -in board area (7) various versions of connection plate (8) connection area - to be opened only by licensed electricity installers (9) power stage, separately insulation encased - to be opened only by Fronius trained service staff...

  • Page 23: Overview For Fronius Ig Outdoors

    Overview for FRONIUS IG Outdoors (1) tightening screws for housing (2) cooling bonnets (3) LED for operation status (4) display outside (5) keyboard outside (6) covering for AC connection and slot-in board area (7) connection rail Multicontact (8) cover slide to protect the buttons and the display from the sun’s rays.

  • Page 24: Led For Operating Status

    Depending on the operating status, the LED assumes different colours (1) LED lights up green: - a green light starts as soon as the FRONIUS IG unit has completed the startup phase, it stays green as long as the operation of feeding...
  • Page 25 - when a warning is being displayed on the screen (continued) - or the FRONIUS IG unit has been set to standby operation in the setup menu = manual shutoff of power supply operation - after the next day sunrise, power supply operation will be resu-...

  • Page 26: Operating Scheme

    Operating scheme The Display The FRONIUS IG unit is pre-configured to be ready for operation, therefo- General infor- re it is not necessary to make any adjustments in order to be able to get it mation to operate fully automatic and feed power into the mains.

  • Page 27: Navigating In The Display

    ... appears with data readings which are directly related to the solar modules ... appears with data readings which are related directly to the FRONIUS IG unit ... appears with data readings which are related to environment conditions, like insolation and temperature (optional) (10) ...appears with data readings which are transmitted by the con-...

  • Page 28: Menu Level

    Menu level From the menu level you enter the display mode or the setup menu. Move into the menu surface by pressing key (C) - the screen displays „Menu“ - the display is operating in the menu level - move into the menu level Select display (1) (2) (3) (4) - select the desired display mode...

  • Page 29: Scrolling Between Display Functions

    „Year“ ...shows data for supply into the mains in current calendar year - only in combination with data recorder option display mode „Total“ ... shows data for supply into the mains since your FRONIUS IG unit has been first operating...

  • Page 30: Scheme Of Display Readings

    (minimum) meter (°C; alternat. also °F) ambient temperature ambient temperature(maximum) (°C; alternnatively also in °F) (°C; alternat. also °F) insolation ambient temperature( minimum) (W/m²) (°C; alternat. also °F) time insolation (maximum) (HH:MM) (W/m²) operating hours of FRONIUS IG unit (HH:MM)

  • Page 31: Display Mode „Now

    The resistance of the local low voltage mains up to the next transformer station is metered. Whenever the local low voltage mains network is switched off for repair works, the mains impedance will increase substantially, in this case the FRONIUS IG unit will interrupt power supply for safety reasons.
  • Page 32 (Am- pere) The FRONIUS IG unit keeps the module voltage always within the range of the maximum possible power withdrawal from the solar modules. This results in the optimum for the module electricity.
  • Page 33 Display mode Display example for negative po- „Now“ tential (sign „-“) (continued) Short circuit between DC- line and earth Display example for positive poten- tial (sign „+“) Short circuit between DC+ line and earth power output drawn from mains supply... present con- sumption (Watt;...

  • Page 34: Display Mode „Day / Year / Total

    Total“ Display mode „Day“ ... shows readings for mains supply feed-in of current Important! For the FRONIUS IG unit, the day begins with the moment it switches on. In case the DC supply line is disconnected, the following parameters will be re-set after repeating the start-up:...
  • Page 35 Display mode Energy supplied ... energy „Day / Year / supplied during period monito- Total“ red (kWh / MWh) (continued) Due to different monitoring systems there can be deviations in compari- son with readings of other metering instruments. For invoicing of the energy supplied only the readings of the calibrated meter supplied by the electric utility company are relevant.
  • Page 36 Display mode Minimum mains voltage... „Day / Year / lowest reading of mains volta- Total“ ge (V) during observation (continued) period Maximum module voltage... highest reading of module voltage (V) during observation period Energy consumption meter reading energy consumed during ob- servation period (kWh / MWh;...

  • Page 37: The Setup Menu

    Duration of operation is shown in hours and minutes upto 999 h and 59 min (display: „999:59“). From then on only full hours are displayed. Although the FRONIUS IG unit is not operating during the night, all data required for the sensor card option are monitored and saved around the clock.

  • Page 38: Display Mode „Setup

    Display mode „Setup“ The setup menu allows easy readjustment of the preset parameters of the FRONIUS IG unit in order to adapt to your needs and requirements in the best possible way. Enter the - move to to the menu level (chap-...

  • Page 39: Setting The Menu Items

    „Enter“ key The menu item „Standby“ allows manual activation of the standby operati- on of the FRONIUS IG unit. During standby operation the electronic system of the power stage is switched off. No power is fed into the mains. There is an orange flash on the LED.
  • Page 40 - „Contrast“ ... set contrast on LCD display - enter „Contrast“: press key „En- ter“ (D) As contrast depends on tempera- ture, it may be necessary to adjust the menu item „Contrast“ when - select from settings „0“ to ambient conditions change. „7“...
  • Page 41 - „Light Mode“ ... pre-setting of display illumination - to enter „Light Mode“: press key „Enter“ (D) - To switch between settings Auto 1., On 2. and Off 3. - press keys (A) or (B): 1. The display illumination will stop 30 seconds after the last time a key has been pressed - accept: press key „Enter“...
  • Page 42 1. Enter currency (factory pre-set for EUR) - first digit starts flashing - select a character for the first digit by pressing key (A) or (B) - confirm by pressing key „Enter“(D) - next digit starts flashing - follow same procedure as descri- bed above for subsequent digits - accept the currency selected by pressing key „Enter“...
  • Page 43 FRONIUS IG into a data communication network using data recorders. It is important to give each FRONIUS IG an own address, so that the data recorder can differentiate between the individual static inverters. If two FRONIUS IG are in the system with the same address, they cannot com- municate with the data recorder.
  • Page 44 If a successful data link has been „Error“ is displayed if DatCom is set up then „OK “ is displayed. not installed or the data link is not functioning correctly. - Press key (B) to call up the Sig- nal Card test - Start the Signal Card test by Signal Card not installed pressing the „Enter“...
  • Page 45 Important! The menu item „Year“ is only supported when the option data recorder is connected. - „Time“ ... setting of date and time - enter „Time“ by pressing key „Enter“ (D) 1. Enter date (e.g.: 03.10.2003) - first digit starts flashing - select a character for the first digit by pressing key (A) or (B) - confirm by pressing key „Enter“...
  • Page 46 - „Extended“ ... Isolation warning activation and deactivation - Press „Enter“ (D) - Isolation warning menu display - Press „Enter“ (D) - Use button (A) or (B) to selected the „Off“ or „On“ setting - Press „Enter“ (D) to apply the setting When the setting is „Off,“...
  • Page 47 - „STATE_PS“ ... Status display of power stage sets - Press „Enter“ key (D) - In this case for example the first power stage set (PS00) is on „Standby“ - „Standby“ means no electricity is being fed into the public mains - Press „Enter“...
  • Page 48 - to switch into display of version serial number number for ENS: press keys (A) or (B) - exit with key „Esc“ (C) Note! in case the FRONIUS IG unit is not equipped with the ENS option, type num- ber and version number display cannot be displayed.

  • Page 49: Additional Information

    Additional information Upgrading the The FRONIUS IG unit is prepared for a whole series of system upgrades, system such as: - for communicating between FRONIUS IG and outside system extensi- ons, for example with other FRONIUS IG units - Data logger (for recording and managing data from your photovoltaic...

  • Page 50: Forced Ventilation

    - your FRONIUS IG unit will remain ready for operation as long as possible without any interruption. - Even if the FRONIUS IG is frequently used at full load the fan can be expected to last approx. 20 years.

  • Page 51: Installation Manual

    Installation manual...

  • Page 52: Open The Housing

    Opening connection area - insert screwdriver into the borehole (1) at the bottom of the FRONIUS IG - unlock cover (2) of connection area by lifting the screwdriver carefully at the end of its handle...

  • Page 53: Fronius Ig Outdoors

    Warning! Hazard due to (continued) supply voltage and DC-volta- ge from the solar modules. Only Fronius-trained service staff are authorized to open the separately insulation- enclosed power stage (3) (4) - loosen securing screw (5) and remove wall mounting frame...

  • Page 54: Installation

    - the FRONIUS IG unit is not to be set up in areas where there is heavy dust development - the FRONIUS IG unit is not to be set up in areas where there is heavy...

  • Page 55: Choosing The Location - Outdoor Housing

    - areas used in the preparation of grain, green fodder or animal feeds sing - greenhouses (continued) Choosing the - The IP 45 protection system means that the FRONIUS IG can be ex- location - posed to moisture. However we recommend if possible that direct mois- outdoor hou- ture is avoided.

  • Page 56: Fixing The Wall Mounting Frame For Indoor Housing

    Housing“) Caution! There is a danger of the machine toppling over. Hang the FRONIUS IG unit into the wall mounting frame and secure it with screw (4) in the connection area. - install AC and DC cable as described in chapter „Connection“.

  • Page 57: Fixing The Wall Mounting Frame For Fronius Ig Outdoors

    FRONIUS IG frame for unit, the following must be obser- indoor hou- ved: sing - lower edge of FRONIUS IG unit (continued) will be located exactly 26 mm beneath the wall mounting frame 26 mm Fixing the wall...
  • Page 58 Fixing the wall The following illustration shows both parts (1) and (2) of the wall bracket. mounting Both parts are included with the FRONIUS IG. The illustration shows how frame for the FRONIUS IG is hung in part (1). FRONIUS IG...
  • Page 59 - Open on the FRONIUS IG connecting area (section „Open housing“) Caution! There is a danger of the machine toppling over if the FRONIUS IG is not secured using part (2) of the wall bracket. Hang the FRONIUS IG into part (1) of the wall bracket and secure using part (2) of the wall bracket.

  • Page 60: Connection

    500 V - or 530 V for the IG 60 HV. Whenever the no-load voltage of the solar modules exceeds 500 V - or 530 V for the IG 60 HV - the FRONIUS IG unit will be destroyed, and all warranty rights will become null and void.

  • Page 61: Ac-Side Overcurrent Protection

    - A separate 16 A fuse for each Fronius IG 15 and 30 - A separate 25 A fuse for each Fronius IG 40 and 60 - Alternative for Fronius IG 40 and 60: 32 A automatic circuit breaker, type „C“...

  • Page 62: Dc Plug

    For easier installation and maintenance the solar modules are connected via a contact- voltage-proof plug connection with a choice between one and five plug pairs - fix the FRONIUS IG unit on the wall as shown in chapter „Installation“ - open connection area - see chapter „Open the Housing“...

  • Page 63: Ac Plug Connection And Dc Plug

    Connection to the mains is effected by means of a touchproof AC plug which can be latched. - Fix the FRONIUS IG unit on the wall as shown in chapter „Installation“ Note! Only cables up to a cross section of 4 mm² are permitted for...
  • Page 64 9,5 to 15 mm diameter - assemble AC plug - connect AC plug to FRONIUS IG unit and latch Note! Always shut off voltage before unplugging the AC connec- tion by disconnecting fuse in the house distribution cabinet.

  • Page 65: Fronius Ig Outdoors

    Should an electric arc develop during unplugging, both plug and socket must be replaced. Never re-use damaged DC connections. 4. FRONIUS IG fix the FRONIUS IG unit on the wall as shown in chapter „Installation“ Outdoors - loosen four tightening screws at the cover (2)
  • Page 66 - plug the strings on to the FRONIUS IG unit Note! Never disconnect the DC plugs of the FRONIUS IG unit from the sockets when it is in operation of feeding power supply. Before disconnecting the strings, always first disconnect fuse in the house distributor panel.

  • Page 67: Start Up Operation

    - the LED light continues green as long as power supply is fed into the mains, it confirms that the operation continues to function without fault. In case the initial operation of your FRONIUS IG unit does not proceed as shown above and the FRONIUS IG unit does not start feeding power supply into the mains network, you should consult the chapter „Error...

  • Page 68: Localnet

    COM Card In order to tie in the FRONIUS IG unit with the LocalNet, the following system upgrading is required (slot-in board) - COM card ......for exchanging data between your FRONIUS...

  • Page 69: Insert Slot-In Boards, Fronius Ig (Installation For Indoor Housing)

    For versions for countries where the ENS card is a standard requirement, the unit will not operate without this card. Legal regulations require a safety system which does not allow operation of the FRONIUS IG without installation of ENS. - power supply feeding operation can be resumed as soon as the ENS...

  • Page 70: Configuration

    Each COM card has two RS-485 interfaces for entry and exit. Connection is effected with RJ45 plugs. The first FRONIUS IG unit with COM card can be located at a distance of up to 1000 m from the last FRONIUS IG unit with COM card.
  • Page 71 Important however is: One FRONIUS IG can have only one COM card One network can contain only one data recorder. More information on the various system upgrade possbilities you will find in the respective service manuals or in the internet under www.fronius.com.

  • Page 72: Status Diagnosis And Repair

    It is thus possible to quickly ascertain de- fects in the FRONIUS IG unit, in the photovoltaic system as well as instal- lation and operation errors.

  • Page 73: Complete Failure

    Should the no-load voltage of the modules (at the connecting points of the FRONIUS IG UNIT) not reach 160 V, it is possibly the case of a defect in the remaining part of the photovoltaic system.

  • Page 74: Class 1

    Service codes of service class 1 appear mostly only temporarily, their cause lies in the public mains network. The first reaction of your FRONIUS IG unit is to disconnect from the mains. Subsequently the mains network will be checked for the duration of the observation period stipulated.

  • Page 75: Class 2

    Class 2 service codes are also related to the parameters of the mains network. Some of the checking procedures therefore overlap with those of service class 1. Your FRONIUS IG unwill react in the same way as in the case of service codes in service class 1.

  • Page 76: Class 3

    After automatic disconnection from the mains and monitoring of the mains as stipulated, your FRONIUS IG unit will try to resume the feeding operati- Code Designation...

  • Page 77: Class 4

    No communication If it is possible, your FRONI- FRONIUS IG has no net- possible between the US IG unit will resume the work connection. Check control unit and ENS power feeding operation af-...
  • Page 78 If Service-Code is dis- played permanently, you should contact a Fronius trained service technici- Control problems The FRONIUS IG briefly dis- If Service-Code is dis- connects from the mains played permanently, you supply due to changed net- should contact a Fronius work requirements.

  • Page 79: Class 5

    Class 5 service codes generally do not impair the operation of feeding power into the mains network. They will be displayed so long until the service code displayed is cancelled by pressing a key (the FRONIUS IG unit, however, continues working normally in the background).

  • Page 80: Customer Service

    If service code is Bridge short-circuit displayed permanently: contact Fronius-trained Detection of intermediate service technician. circuit voltage damaged Customer Important! contact your Fronius dealer or Fronius trained service partner service if an error not mentioned in the schedule appears frequently or perma- nently.

  • Page 81: Annex

    Reaction at DC-overload shift of operating point Values given are standard. Your FRONIUS IG unit has been specifically adjusted in accordance with the regulations of your country. The AC-output reduces (power-derating) when the ambient temperature is increased, from approx. 35 °C (dependent on the solar module voltage).

  • Page 82: Fronius Ig 40 / 60 / 60 Hv

    Reaction at DC-overload shift of operating point Values given are standard. Your FRONIUS IG unit has been specifically adjusted in accordance with the regulations of your country. The AC-output reduces (power-derating) when the ambient temperature is increased, from approx. 35 °C (dependent on the solar module voltage).

  • Page 83: Our Product Complies With The Following Standards And Regulations

    In the particular country versions both with as well as without ENS the moni- toring and safety systems integrated in the FRONIUS IG as part of its stan- dard equipment make sure that in case of a mains dropout (caused either by shutoff effected by the utility supplier or by power transmission line failure) the power supply feeding will be immediately interrupted.

  • Page 84: Warranty And Liability

    Warranty and Liability Detailed, country-specific warranty terms are available on the internet: Fronius www.fronius.com/solar/warranty manufacturer's To obtain the full warranty period for your newly installed Fronius inverter warranty or storage system, please register at: www.solarweb.com. Maintenance and disposal of obsolete equipment Maintenance The filter should be checked regularly to maintain its high quality and to ensure that it is functioning correctly.
