- Page 1 1080P HDMI over IP Receiver HDIP120 Receiver User Manual...
- Page 2 Introduction Introduction Overview The HDIP120 receiver is an 1080P HDMI over IP Receiver that designed to work with HDIP120 transmitter for extending HDMI signals from a source device to one or multiple displays through a Cat 5a/6 cable up to 120 meters.

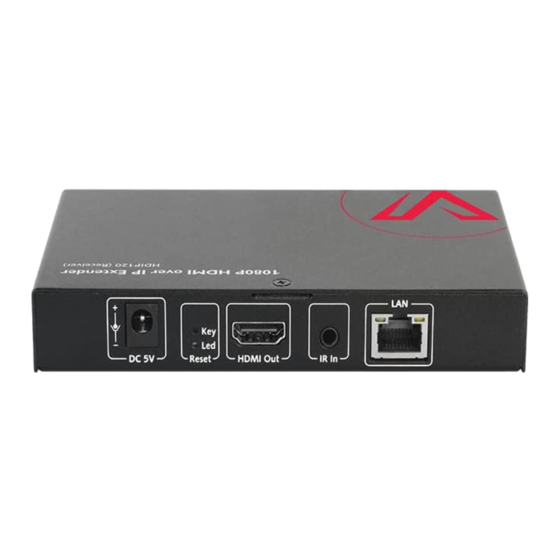

- Page 3 Installation and Application Panel Features and Ports a. Power input port | b. Reset Key and Led | c. HDMI Out port | d. IR In port | e. LAN port | f. Power Led | g. Link Led Installation and Application Bracket Installation Note: Before installation, please ensure the device is disconnected from the power source.
- Page 4 Installation and Application Application (1) 1-1 DVD Player IR Emitter Transmitter Receiver IR Receiver DVD Player Remote (2) 1 - N DVD Player Network Switch Receiver 1 IR Receiver IR Emitter Transmitter Receiver (N) IR Receiver DVD Player Remote Note: One transmitter can be linked to N (N ≤ 10) receivers in the same LAN.
- Page 5 Specifications Specifications Technical Input A/V Port 1 x LAN Input Resolutions Up to 1080P@60Hz Output A/V Port 1 x HDMI Output Resolutions Up to 1080P@60Hz Compliance HDMI 1.3, HDCP 1.4 Transmission Distance 120m/394ft General Operating Temperature +32°F ~ +113°F (0°C ~ +45°C), 10% ~ 90%, non-condensing Storage Temperature -4°F ~ 140°F (-20°C ~ +70°C), 10% ~ 90%, non-condensing Power Supply...
- Page 6 The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide.
