Chapter 4
Mounting the Workstation 820 and Peripheral Expansion Module on the Low Profile Stand

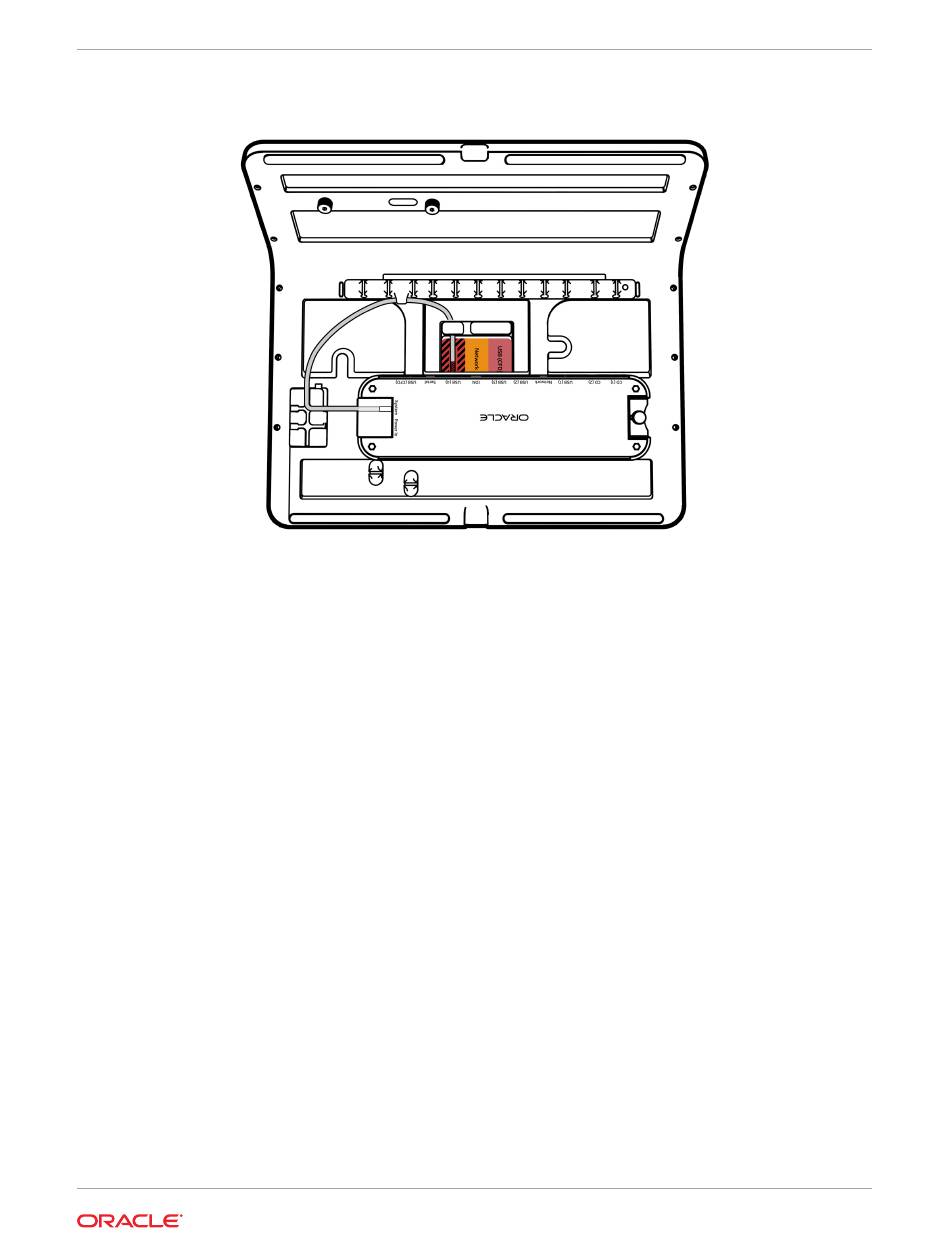

Figure 4-19
Connecting and routing the system cable
Connect the Workstation 8 Series power supply to the Power In port on the Peripheral
6.
Expansion Module. Follow the cable routing path shown in Figure 4.
4-13
