Mounting the Workstation 820 and Peripheral Expansion Module on the Low Profile Stand

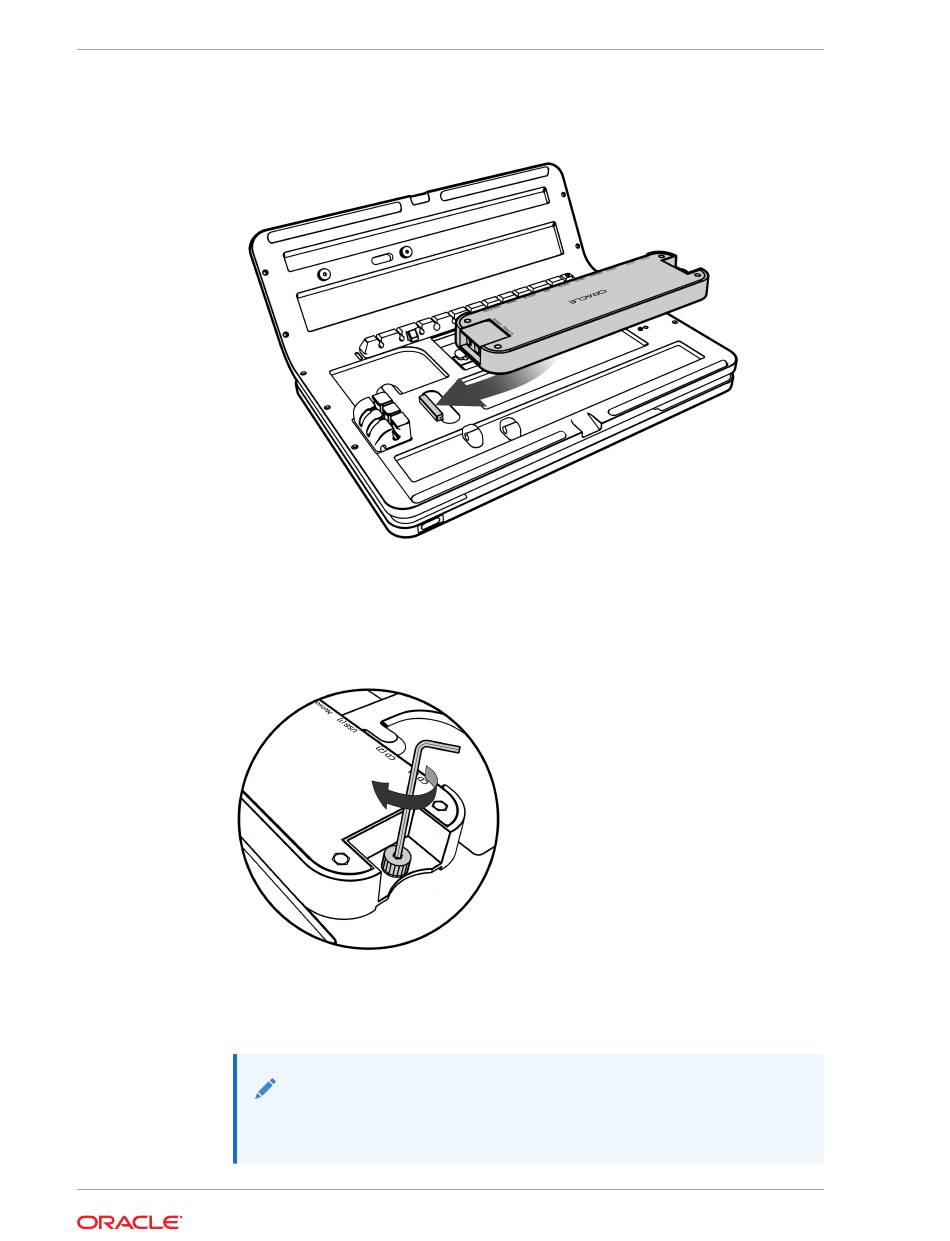

Figure 4-17 Mounting the Peripheral Expansion Module on the Low Profile
Stand
Tighten the Peripheral Expansion Module captive screw with the Oracle 2.5mm
4.
hex key or equivalent.
Figure 4-18 Tightening the Peripheral Expansion Module captive screw
Connect the system cable to the Power In port on the Workstation 820 and the
5.
System port on the Peripheral Expansion Module. Open the port cover for easy
access to the ports. Follow the cable routing path shown below.
Note:
Workstation 8 Series ports and cables are color-coded to simplify
assembly.
