Table 3-1
Port/Feature
1.CD(1), CD(2)
2. USB(1)
3. Network
4. USB(2), USB(3)
5. IDN
6. USB(4)
7. Serial
8. USB(CFD)
9. System, Power In
10. System/Power In Cover
Product Dimensions

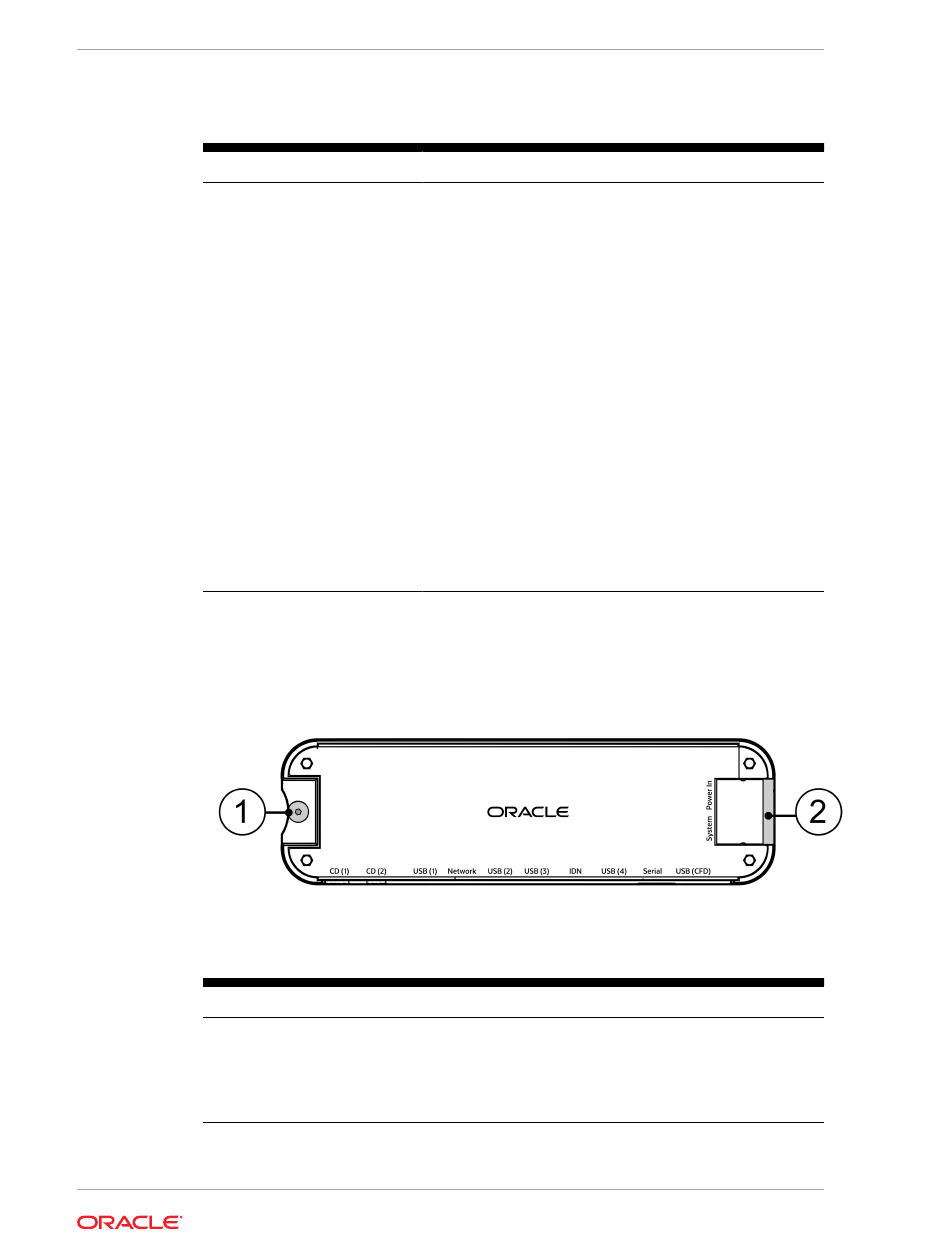

Peripheral Expansion Module Stand Mounting Points

Figure 3-2
Table 3-2
Mounting Point
1. Captive screw
2. Stand mounting edge The stand mounting edge slides into the mounting slot on
Peripheral Expansion Module Basic Features
Description
Cash drawer ports.
USB port for connecting peripherals.
Ethernet port for connecting to wired networks.
USB ports for connecting peripherals.
IDN port for connecting to IDN devices. Can also be used
for connecting serial devices without hardware
handshaking. IDN = Com 4 Serial = Com 2.
USB port for connecting peripherals.
Serial port (Com 1).
USB port for connecting peripherals, including the 7–
Inch Customer Facing Display.
System: Connect to the Power In port on the
Workstation 820.
Power In: Connect to the Workstation 8 Series power
supply to deliver power to the Workstation 820 and all
peripherals.
The cover can be opened for easy port access.
230.63mm x 67.83mm x 18.45mm (9.1 x 2.7 x .7 inches)
Peripheral Expansion Module Stand Mounting Points
Peripheral Expansion Module Stand Mounting Points
Description
The captive screw secures the Peripheral Expansion Module
to Workstation 8 Series stands. Use the Oracle 2.5mm hex key
to tighten.
Workstation 8 Series stands.
Peripheral Expansion Module Basic Features
Chapter 3
3-2
