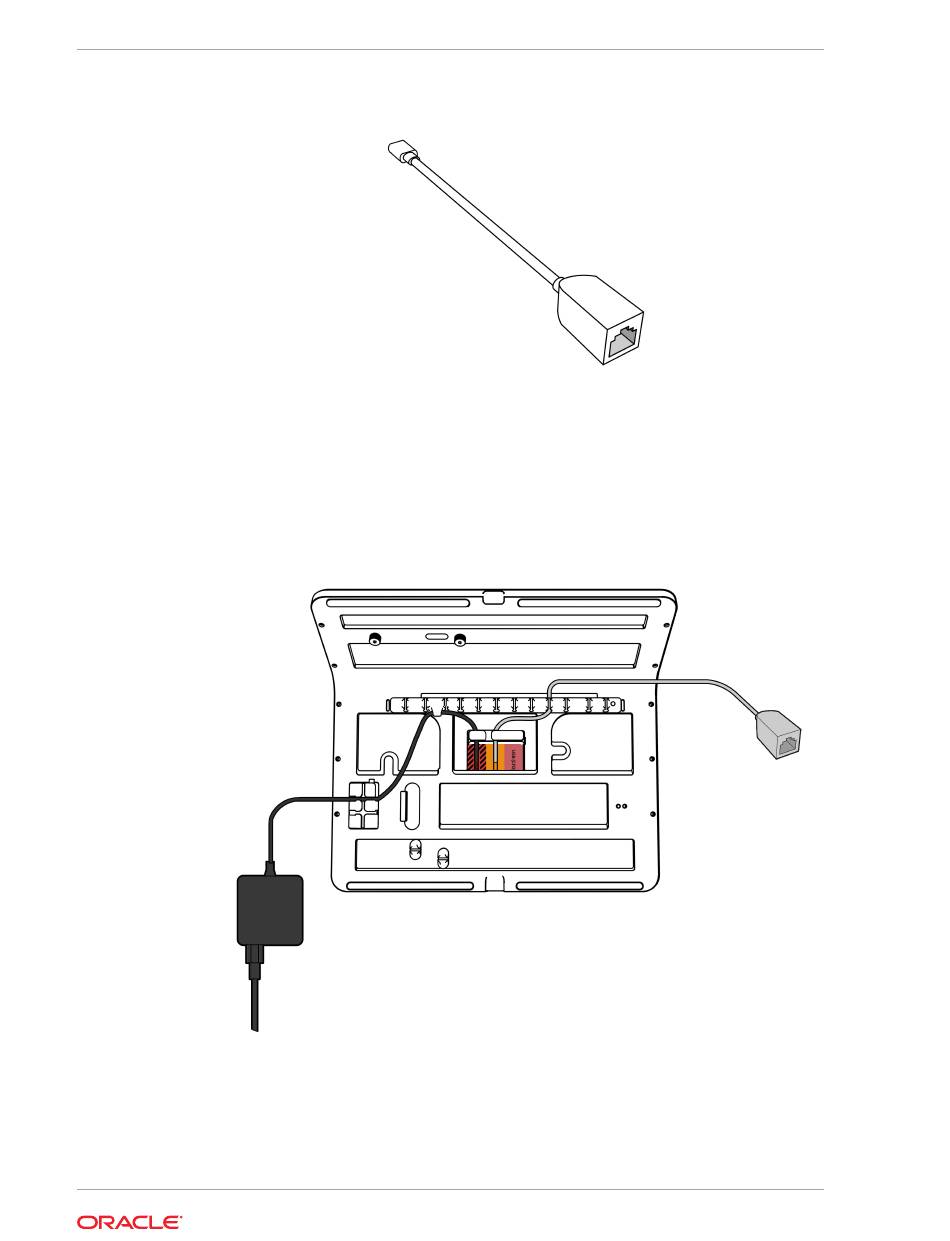

Figure 4-14
Ethernet Adapter Cable for Oracle MICROS Workstation 8 Series
Connect the Ethernet Adapter Cable for Oracle MICROS Workstation 8 Series to
1.
the Network port on the Workstation 820. Follow the cable routing path as shown
below.
Figure 4-15
Connecting the Ethernet Adapter Cable for Oracle MICROS
Workstation 8 Series to the Workstation 820
Connect an Ethernet cable to the Ethernet Adapter Cable for Oracle MICROS
2.
Workstation 8 Series, and then plug the Ethernet cable into an Ethernet outlet,
hub, or other networking device.
Mounting the Workstation 820 on the Low Profile Stand
Chapter 4
4-10
