Figure 3-5

CD(1), CD(2) Series 2 Cash Drawer

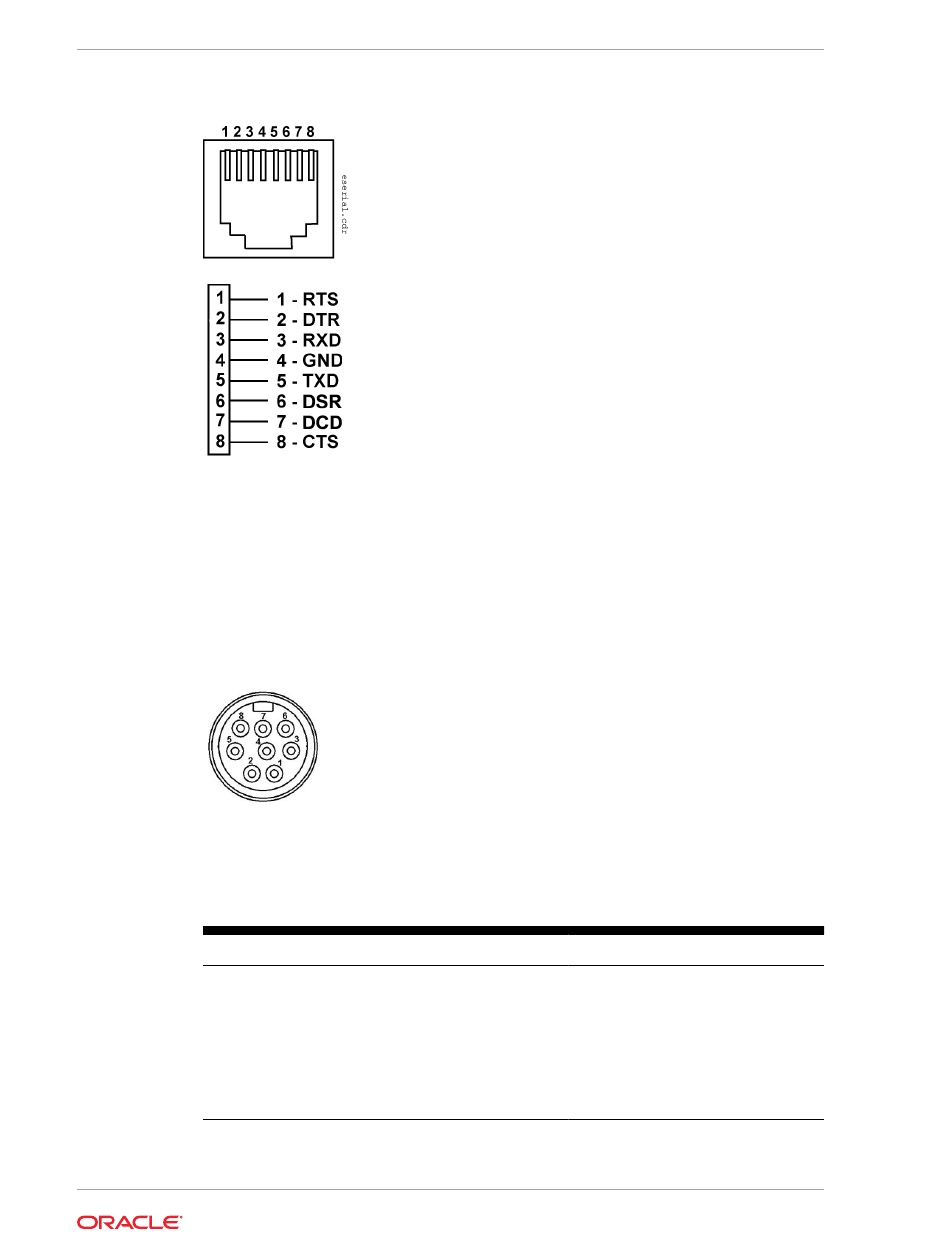

The Series 2 Cash Drawer connector is an 8-pin Mini-DIN. You can convert this
connector into a legacy MICROS 4-pin DIN cash drawer connector using a P/N
300290-020-PT cable.
Figure 3-6
The following table describes the signal name and function of each pin.
Table 3-4
Pin #
1
2
3, 7, 8
4
5
6
Serial Port Pin Reference
Series 2 Cash Drawer Pin Reference
Series 2 Cash Drawer Pin and Signal Reference
Signal Name
VCC12 or VCC24
CD_OPEN
Ground
CD_ST
MCU_TX_5V
MCURX
Peripheral Expansion Module Basic Features
Description
Cash drawer power
Open drawer
Signal grounds
Input status from cash drawer
Tx data to cash drawer
Rx data from cash drawer
