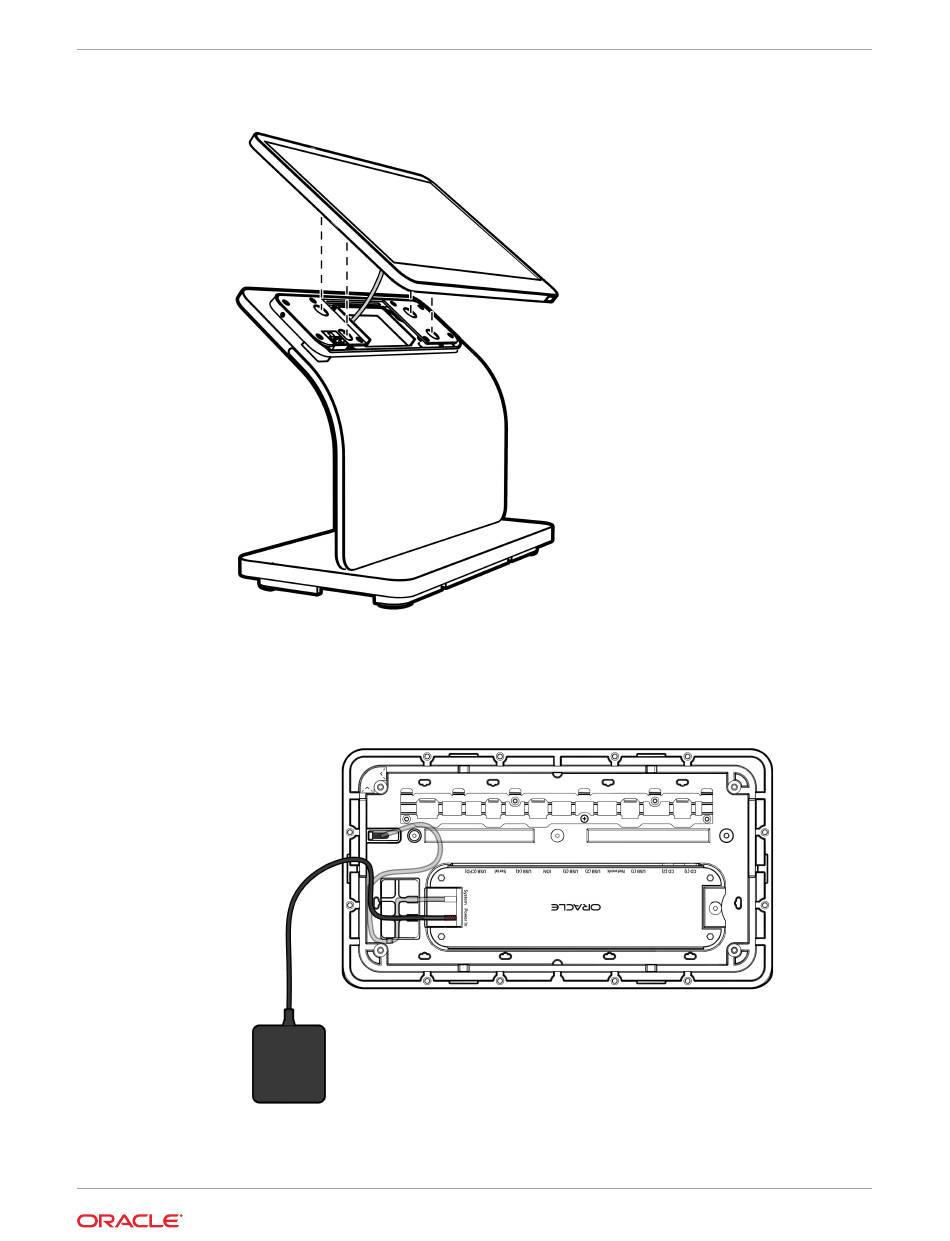

Figure 4-10
Mounting the Workstation 820 on the Vertical Stand
Connect the Workstation 8 Series power supply to the Power In port on the Peripheral
8.
Expansion Module. Route the cable through the rubber cable organizer as shown below.
Figure 4-11
Connecting the Workstation 8 Series power supply
Connect your country-specific power cord to the Workstation 8 Series power supply.
9.
Ensure the power cord is fully inserted into the power supply socket.
Mounting the Workstation 820 on the Vertical Stand
Chapter 4
4-7
