The Oracle 2.5mm Hex Key

Oracle provides a 2.5mm hex key with many Workstation 8 Series hardware products.
The hex key lets you perform a number of important tasks such as locking and
unlocking a workstation/stand assembly, releasing the workstation from a stand,
tightening/loosening stand captive screws, and mounting/unmounting peripherals.

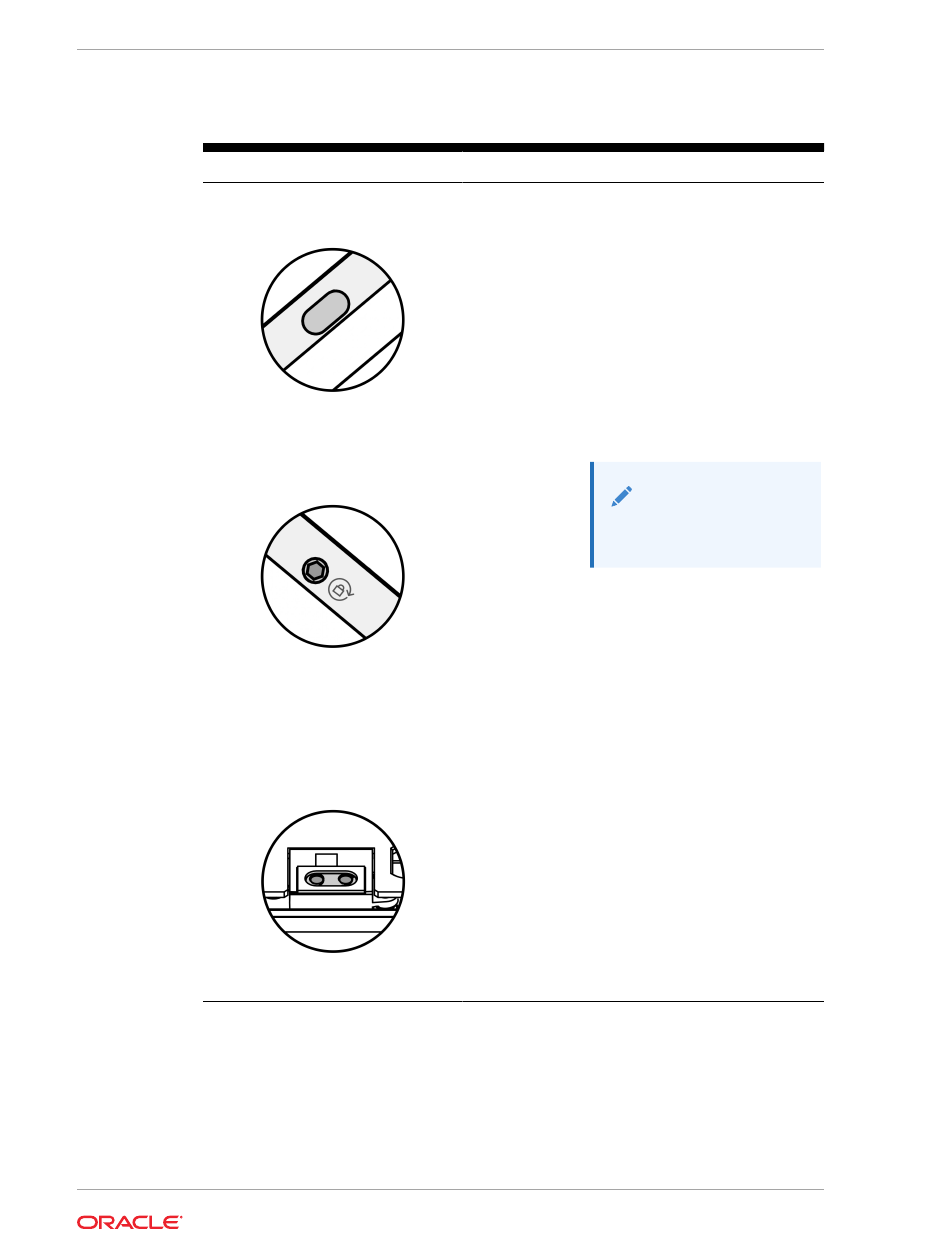

Release, Lock/Unlock, and Stand Information Contacts
Description
Press the Release button with the Oracle 2.5mm
hex key or equivalent to release the workstation
from the stand.
Note: Secure the workstation when pressing the
Release button to prevent sudden drops.
If the workstation does not release from the stand,
insert the Oracle 2.5mm hex key or equivalent into
the Lock/unlock socket, turn counterclockwise,
and then press the Release button.
Lock: Insert the Oracle 2.5mm hex key or
equivalent into the Lock/Unlock socket and turn
clockwise to lock the workstation.
Unlock: Insert the Oracle 2.5mm hex key or
equivalent into the Lock/Unlock socket and turn
counterclockwise to unlock the workstation.
Note: To release the workstation from the stand
after unlocking it, press the Release button.
When paired with any Workstation 8 Series
workstation, the stand information contacts
transmit stand-specific information, including part
and serial numbers.
Workstation 8 Series Stands and Mounts
Note:
Use of the Lock feature
is optional.
